Description

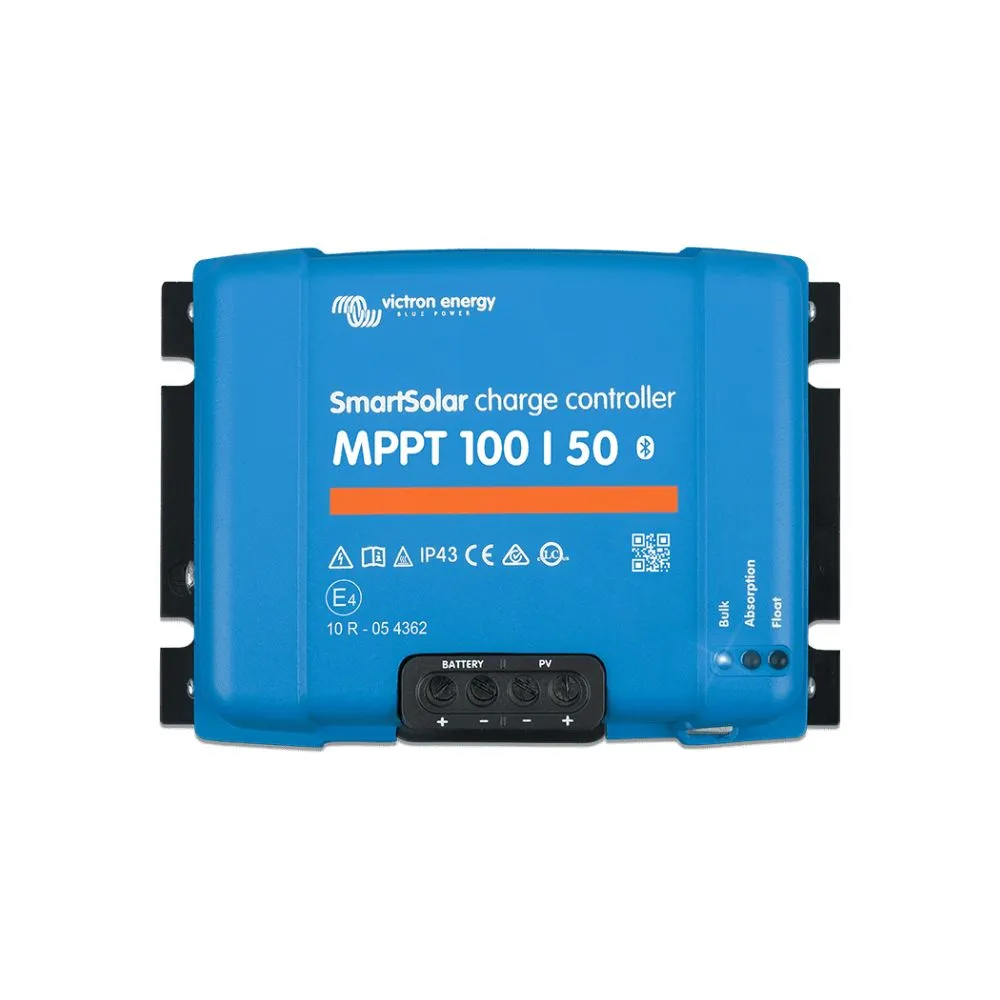

Victron SmartSolar Charge Controller Features

1. Bluetooth Smart built-in: Dongle not needed.  The wireless solution to set up, and monitor updates using Apple and Android smartphones, tablets or other devices.
2. VE.Direct: For a wired data connection to a Colour Control panel, Venus GX, PC or other devices.
3. Ultrafast Maximum Power Point Tracking (MPPT): Especially in the case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and up to 10% compared to slower MPPT controllers.
4. Advanced Maximum Point Detection in case of partial shading conditions:  If partial shading occurs, two or more maximum power points (MPP) may be present on the power-voltage curve.  Conventional MPPTs tend to lock in a local MPP, which may not be the optimum MPP.  The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.
5. Outstanding conversion efficiency: No cooling fan.  Maximum efficiency exceeds 98%.
6. Flexible charge algorithm: Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.
7. Extensive electronic protection: Over-temperature protection and power derating when the temperature is high.  PV short circuit and PV reverse polarity protection. PV reverse current protection.
8. Internal temperature Sensor: Compensates absorption and float charge voltage for temperature.
9. Real-time data display options: Apple and Android smartphones, tablets and other devices.  Colour control panel.

Specification
