Product Description

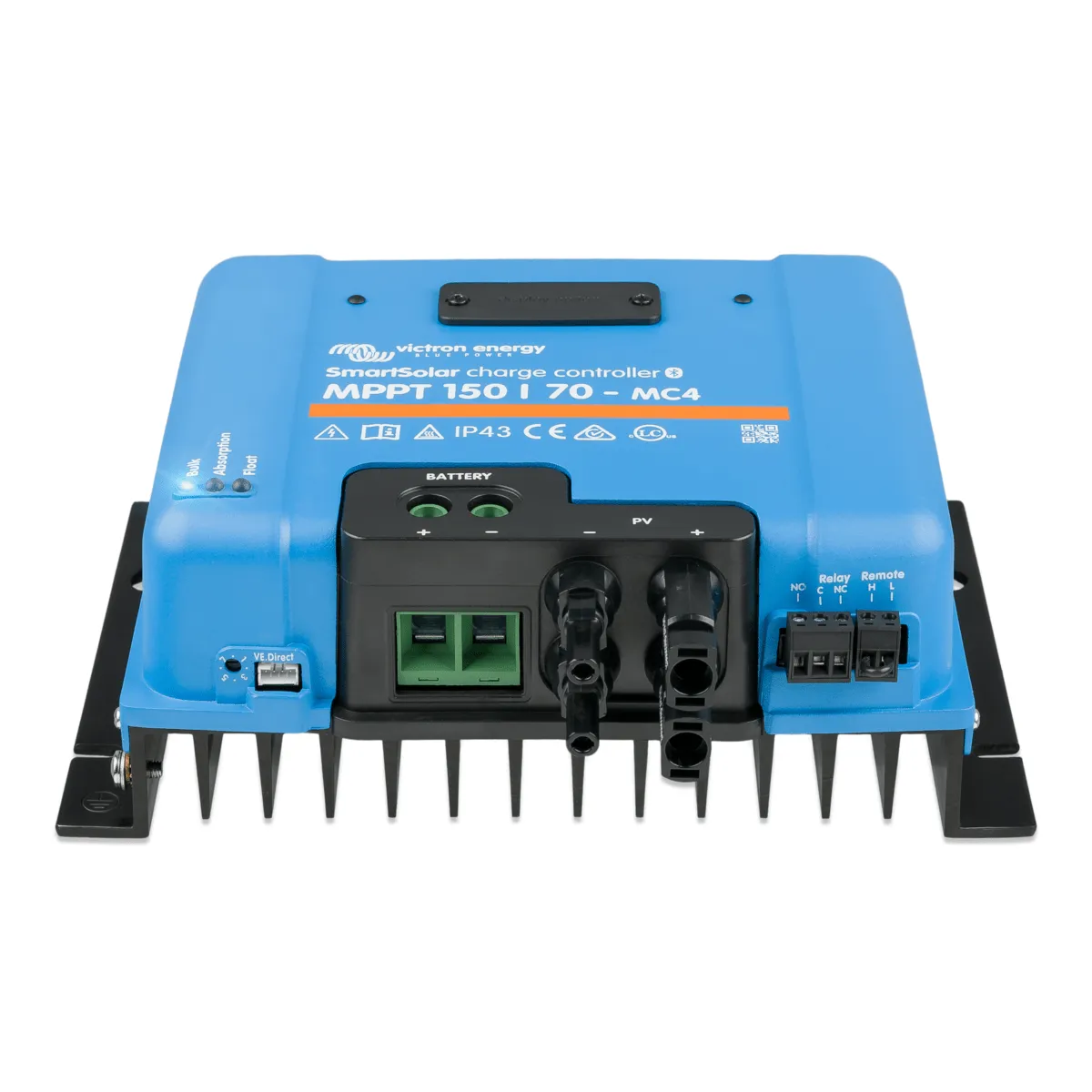

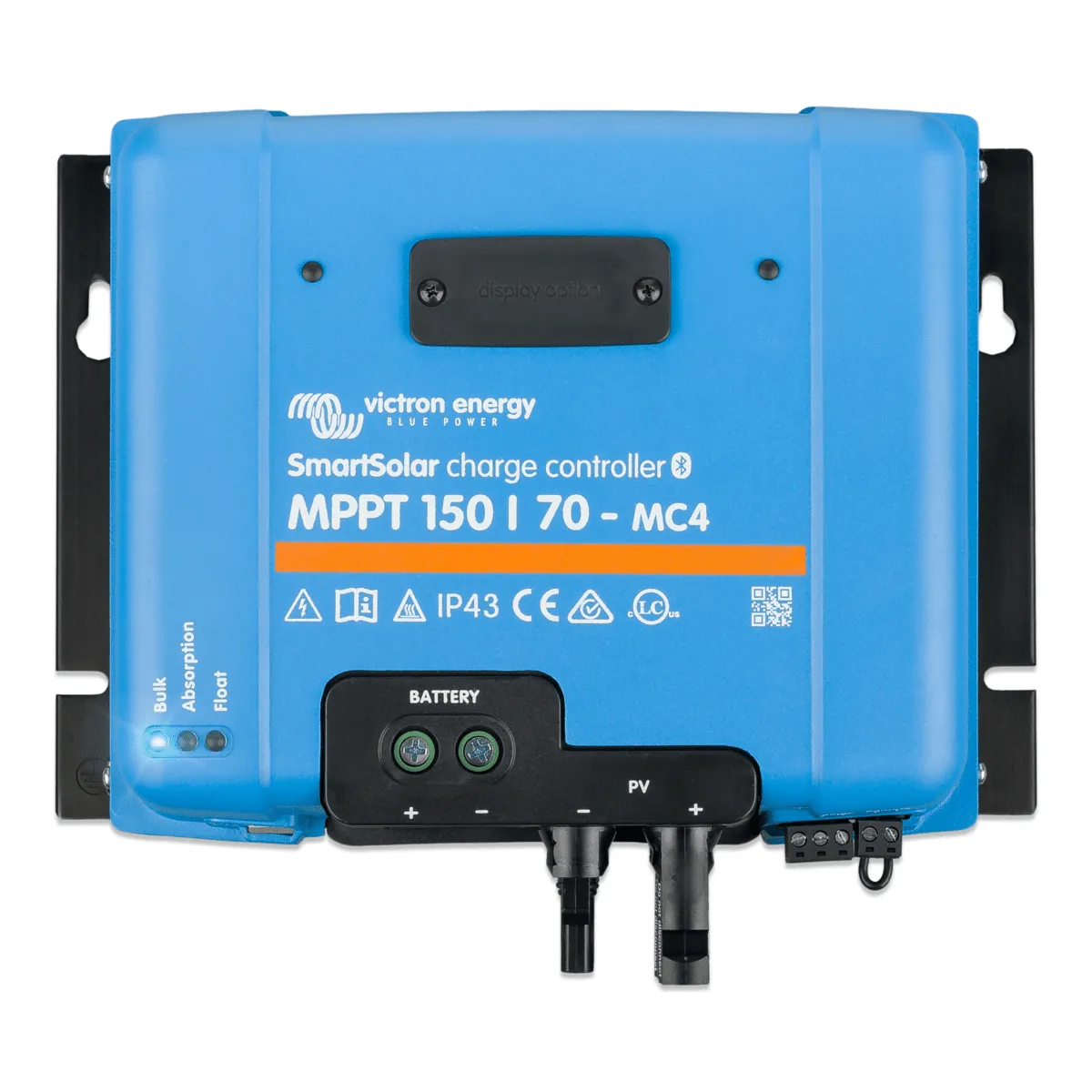

The Victron Energy BlueSolar MPPT 150/70 charge controller maximizes energy harvest from solar panels using advanced MPPT technology, ensuring efficient charging even in varying light conditions. It supports a wide range of battery voltages and is designed to maintain battery health and extend its life. For remote monitoring and control, it pairs with the VictronConnect app via Bluetooth or internet-connected devices, offering access to comprehensive features anywhere.

Specifications

• Battery Voltage: 12/24/48V with Auto Select (software tool needed to select 36 V)
• Rated Charge Current: 70 A
• Nominal PV Power, 12V: 1000 W (auto select)
• Nominal PV Power, 24V: 2000 W (auto select)
• Nominal PV Power, 48V: 4000 W (auto select)
• Maximum PV Short Circuit Current: 50 A
• Maximum PV Open Circuit Voltage: 150 V absolute maximum coldest conditions; 145 V start-up and operating maximum
• Maximum Efficiency: 98 %
• Charge Voltage 'Absorption': Default setting: 14.4/28.8/43.2/57.6 V (adjustable)
• Charge Voltage 'Float': Default setting: 13.8/27.6/41.4/55.2 V (adjustable)
• Temperature Compensation: -16 mV / -32 mV / -64 mV / °C
