AUKEY TPMS (Tire Pressure Monitoring System)

AUKEY Tire Pressure Monitoring System is designed to effectively monitor the air pressure and temperature of tires to avoid possible damage caused by tire leak during driving, prevent abnormal wear of tires and improve fuel efficiency.

Vehicle Compatibility

The AUKEY TP-CO-001 is most suitable for vehicles up to 6 meters long. Virtually Compatible with all Car except Large Lorry and Long Trailer. For example, if you are using it with a trailer, the range of the radio frequency may not provide accurate real time tire pressure data.

How Does It Work

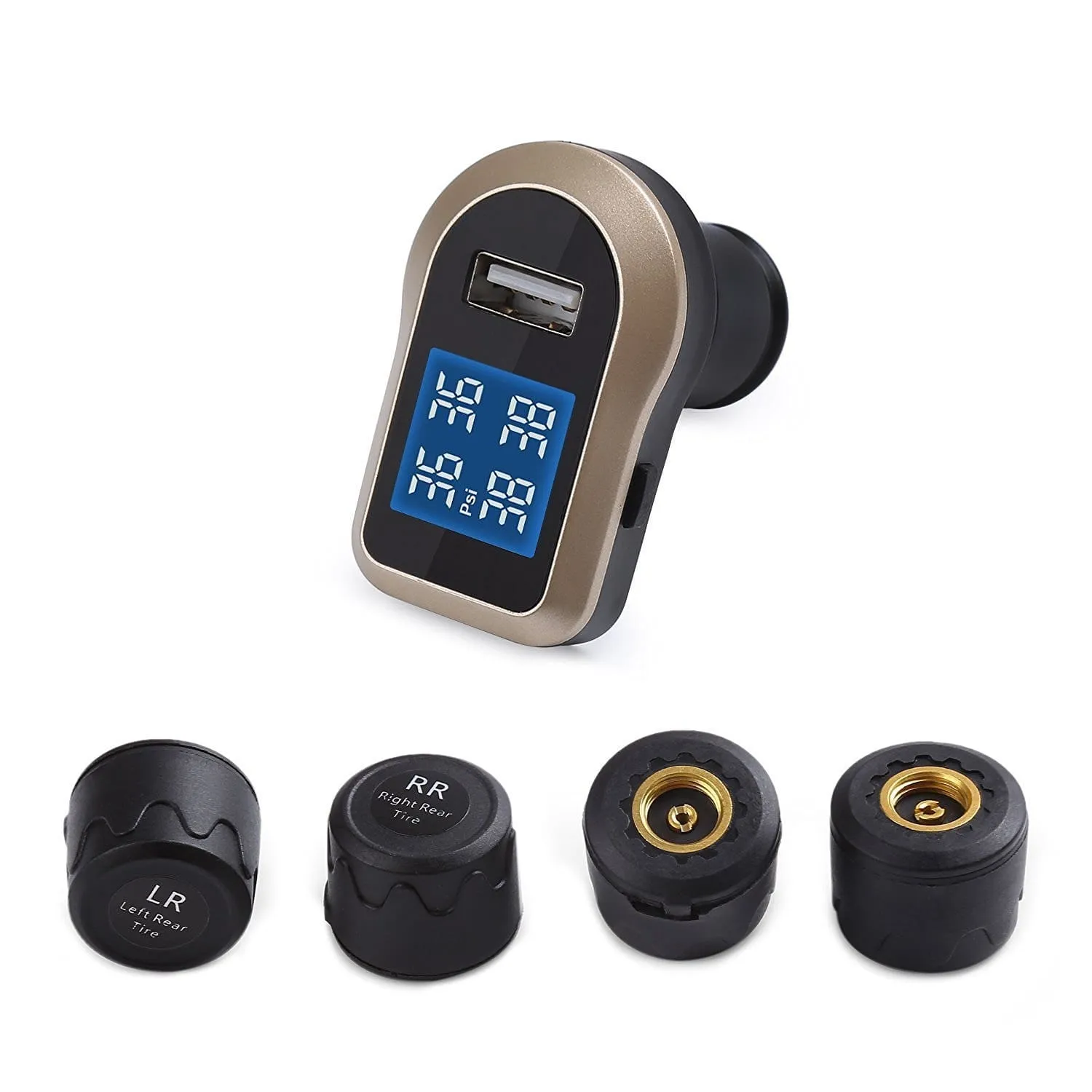

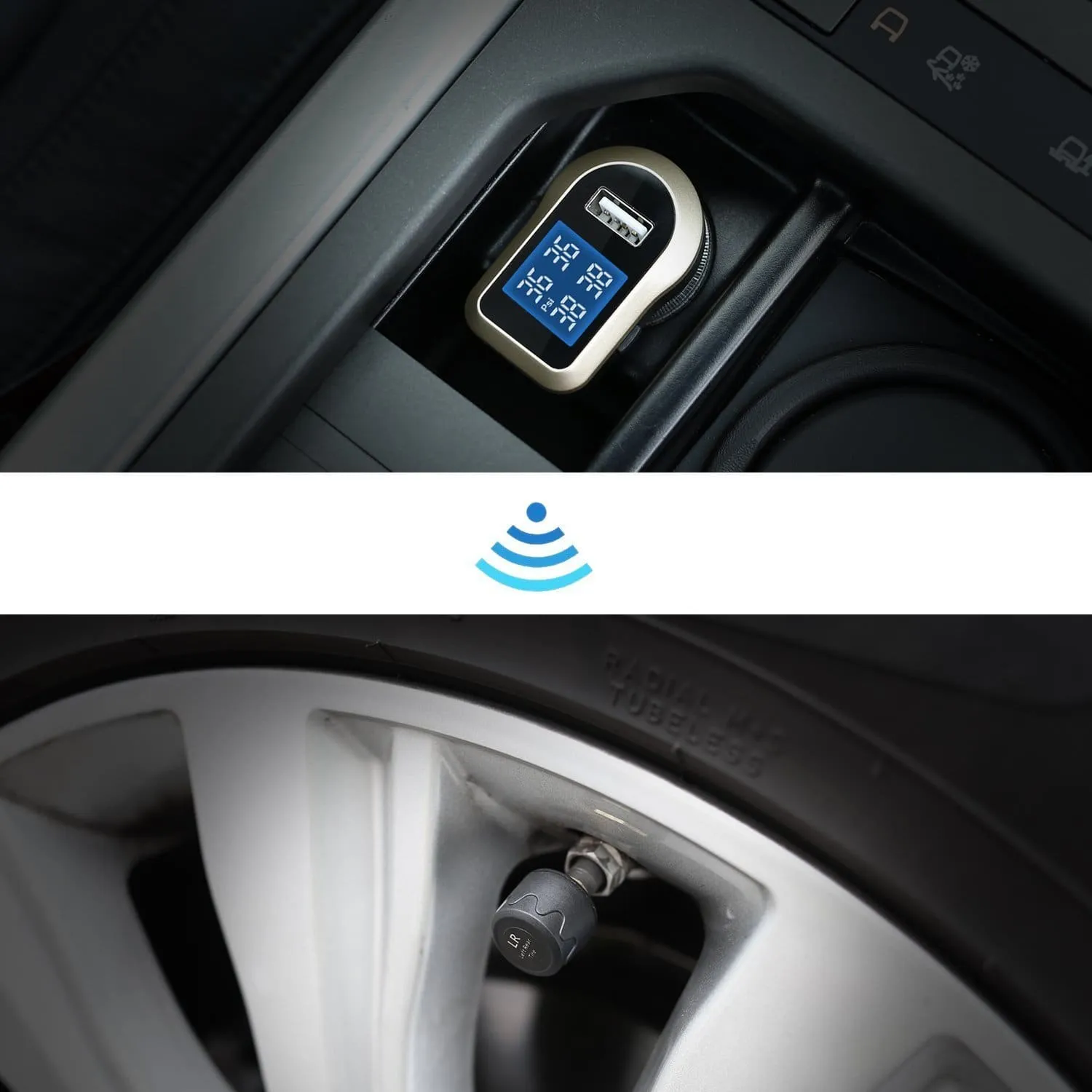

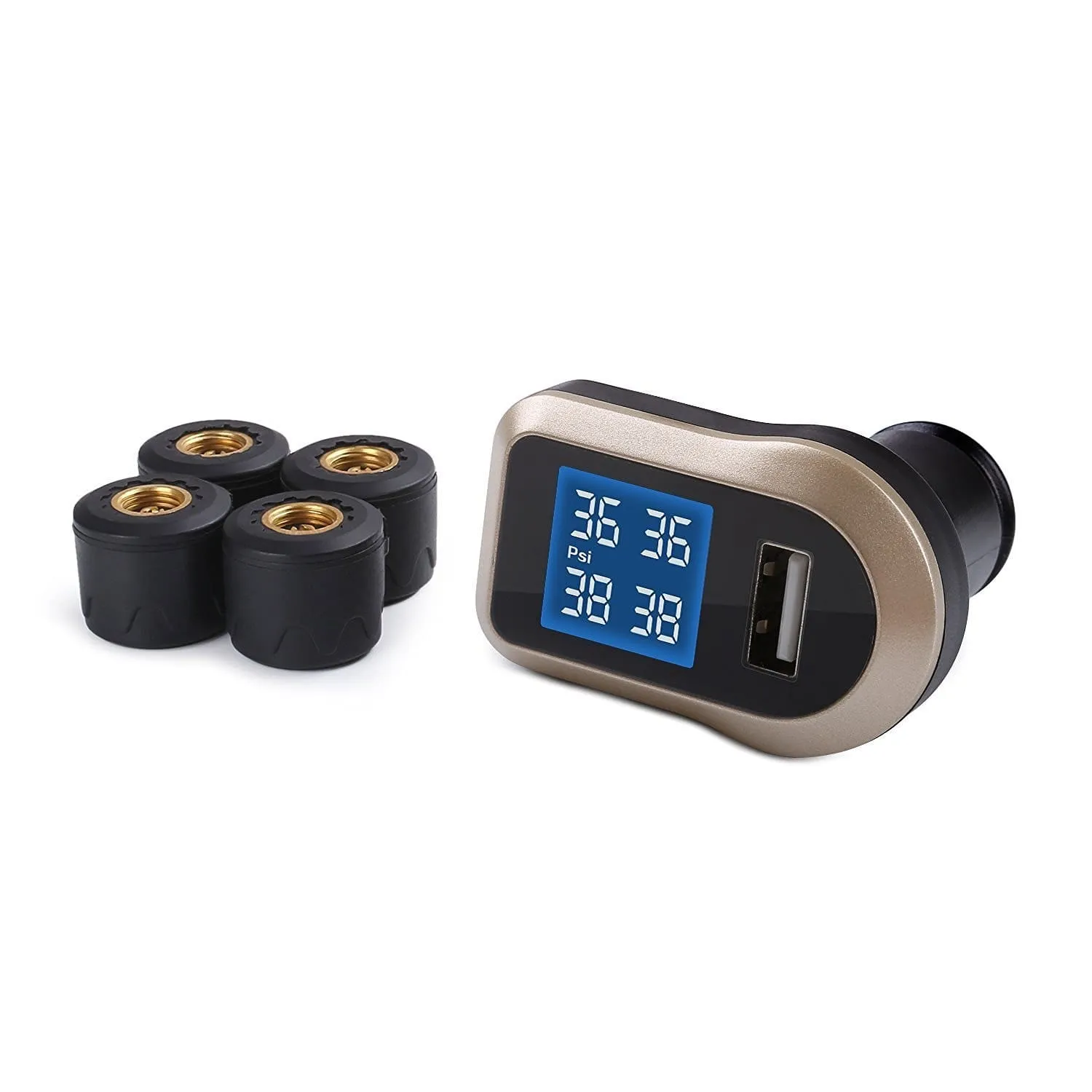

The system comes with one tire pressure monitor and four sensors. It's used for real-time detection of the pressure and temperature inside the tires. Sensors send the data to the display through radio frequency and they show on the LCD screen after received and processed. Once there are abnormal conditions, it warns drivers to solve the problem.

Specifications

Input: 15V 1A

USB Output: 5V 2A

Pressure Range: 0 - 87 psi

Temperature Accuracy: ± 5.4ºF

Working Temperature: -4 - 176°F

Storage Temperature: -4 - 185°F

Battery Life: ~2 Years (Can be Change Easily)

Tire Pressure Monitor Dimensions: 2.24" × 1.38" × 1.97"

Tire Pressure Sensor Dimensions: 0.78" × 0.78" × 0.63"

Weight: 66Grm

• Storage: -20 ~ 85 degrees celsius

• Pressure range: 0 ~ 6 bar (0 ~ 87 psi)

• Pressure accuracy: ± 5 psi (± 1 bar)

• Fast leakage alarm by unique visible and audible warning with adjustable pressure and temperature alarm level

• Digital LCD screen with adjustable pressure unit BAR / PSI

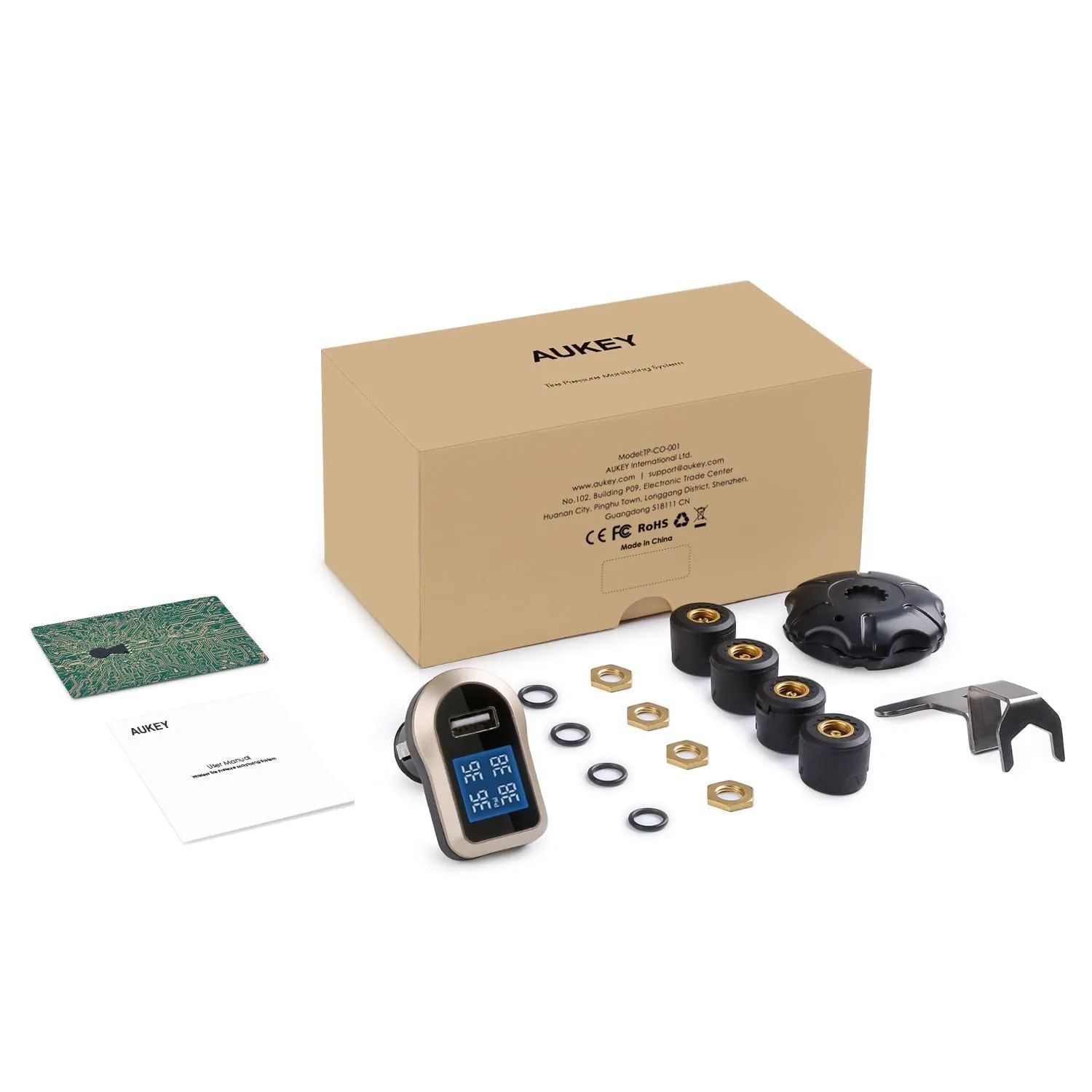

Package Contents:

AUKEY Tire Pressure Monitor,

4 Tire Pressure Sensors,

Opener Tool, Hex Wrench,

4 Hex Nuts, 4 Rubber O-Rings,

User Manual and 18 Month Warranty
