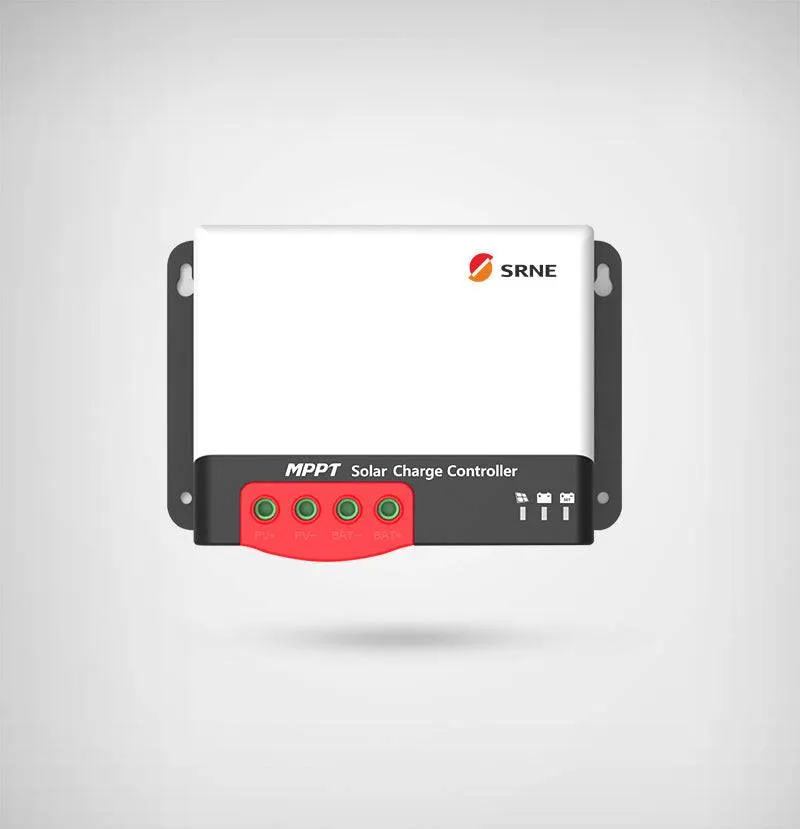

Product Details
＋
- PowerCatcher maximum power point tracking technology allows the controller to track the maximum power point of solar panels even in a complex environment. Compared with the traditional MPPT tracking technology, it boasts faster response speed and higher tracking efficiency.
- Built-in maximum power point tracking (MPPT) algorithm significantly increases energy utilization efficiency of the PV system, which is about 15% to 20% higher than traditional PWM charging.
- Active charging voltage regulation: Battery open circuit & lithium battery BMS overcharge protection.
- MPPT tracking efficiency up to 99.9%.
- Compatible with lithium, flooded, and sealed/AGM batteries.
- Current-limited charging mode: the controller automatically reduces the charging power so that the solar panel can operate at the rated charging current.
- Automatic identification of lead-acid battery voltage.
- Optional external LCD screen or Bluetooth module can be connected for remote viewing & parameter adjustment.
- Supports standard Modbus protocol to meet communication needs for various applications.
- Built-in over-temperature protection.
- Max Power of PV: 660 Watts/12V 1320 Watts/24V
- Max Voltage of PV: 100V
