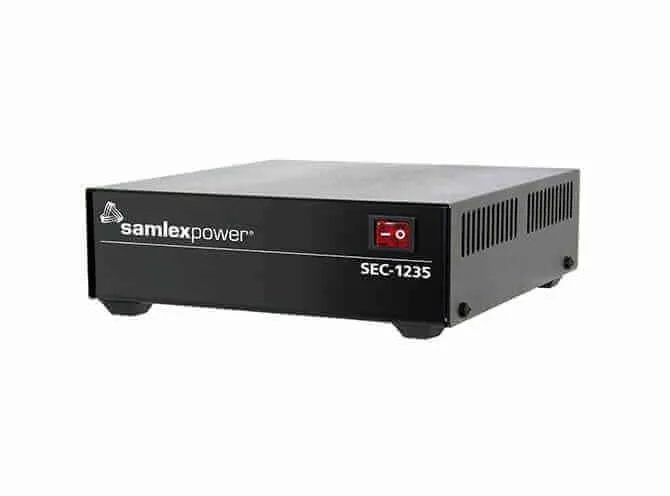

Model: SEC-1235

These high-efficiency UL-60950-1 approved AC-DC power converters provides a highly regulated output DC voltage of 13.8 Volts (12 Volt Nominal). With an advanced switch-mode power supply, you can service up to 30 Amp @ 12vDC continuously with a standard 120vAC input @ 60Hz.

The SEC-1235 are ideal for applications where a device or appliance requires continuous and reliable 12vDC power. Examples would be:

• The SunStar line of solar/DC refrigerators and freezers (1 x SEC-1235 can easily service 2 appliances)
• Cinderella Freedom incineration toilet (1 x SEC-1235 can service the Cinderella Freedom in addition to the above appliances)
• Applications which have less than a 30A @ 12vDC requirement i.e. one of the above mentioned appliances 12vDC lighting strings, 12vDC diaphragm pump, 12vDC fans, etc.

The power supply produces clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with standard NEMA 5-15P plug.

Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to FCC Part 15(B), class B digital device.

Downloads:

Specifications:

Input: 100-130 VAC
Output: 13.8 VDC
Amps: 30 Amps
Fuse: 8 Amps
Weight: 3.4 (lbs)
Weight: 1.54 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 18.5 x 20.8 x 6.1 (cm)
Safety: UL, FCC

3 Year Limited Warranty
