Name: RIGID Eclipse 200-Watt 30A MPPT Controller Solar Kit
SKU: 402277

Product Details ＋

Charge batteries faster and maximize your solar charging performance with the new 200-watt Eclipse MPPT rigid solar kit.

Supercharge your solar array to 98% conversion efficiency with MPPT charging. Ideal for series configurations. Bluetooth® enabled remote* allows you to view and change essential battery stats from your handheld device.

Easy to install, and expandable, the Go Power! RIGID Eclipse Solar Kit is a powerful battery charger and is great for maintaining the charge in all types of batteries and is ideal for extended RVing or dry-camping.

*Best paired with 200Ah of AGM Battery Power, or 100Ah of Lithium Battery Power.

Kit Features:

Expandable to 3000-watts of solar with stackable MPPT controllers

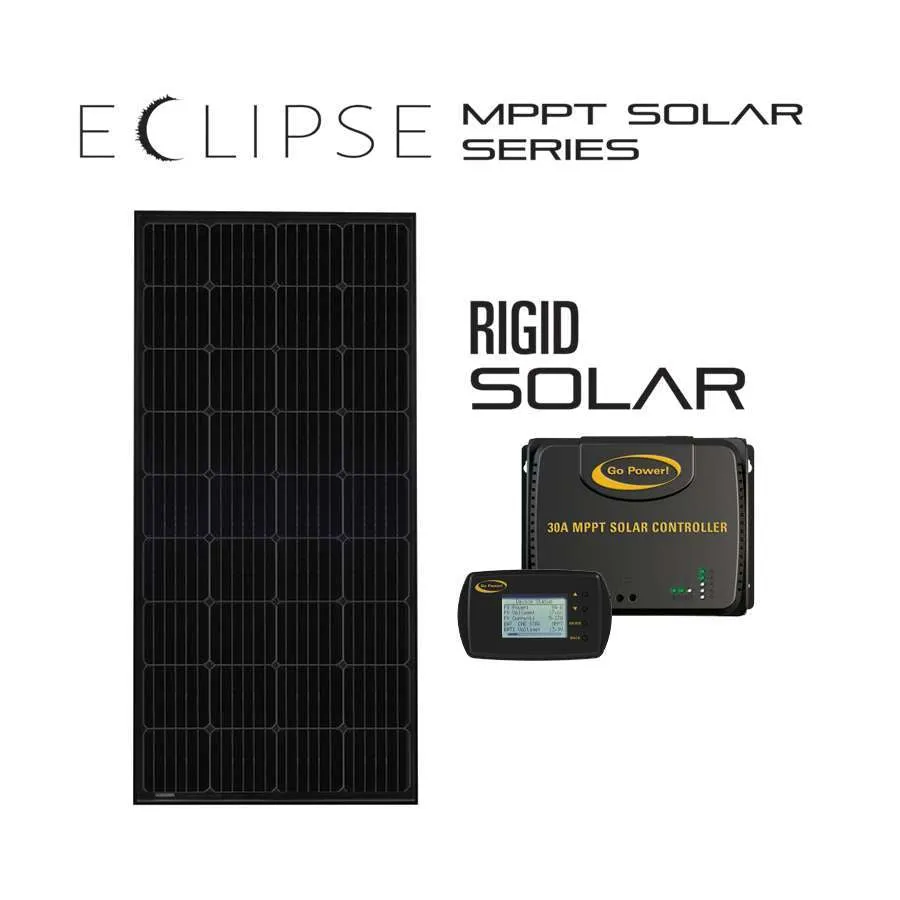

Rigid black-framed 200 watt, 9.6 amp solar module
Panel dimensions: 59.1 x 26.3 x 1.57 in
25-year power output panel warranty

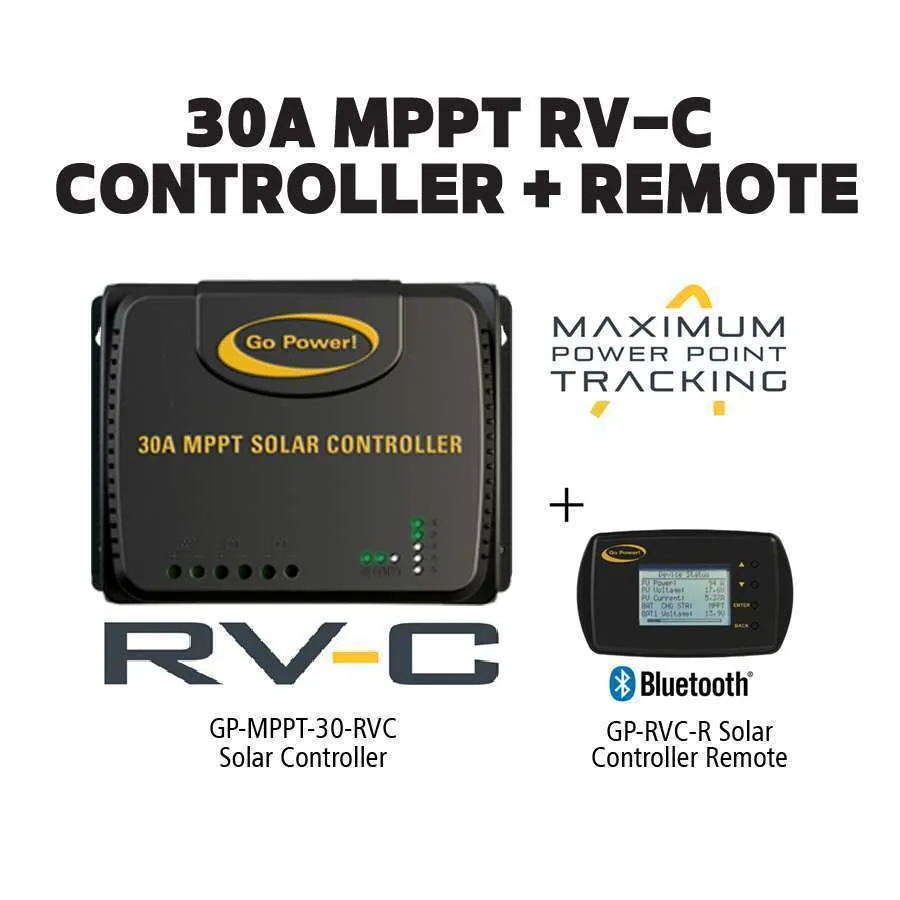

30 amp, stackable MPPT, RV-C compatible solar controller
Bluetooth® enabled remote
Includes 25’ solar output cables and mounting hardware

SPECIFICATIONS

Solar Modules and Controller

Solar cell type	Monocrystalline
Output power	200 W
Rated current	9.62 A
Rated DC voltage	20.8 V
Open-circuit voltage	24.3 V
Connectivity	Solar Branch Connectors

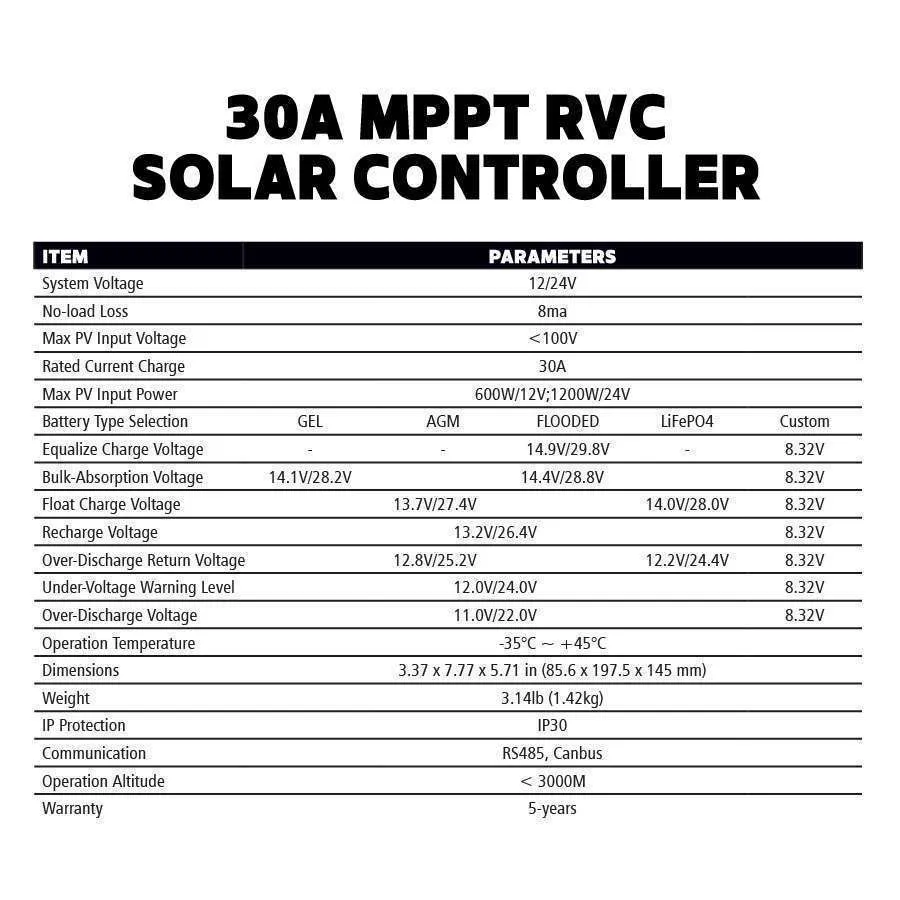

Solar controller	30 A MPPT, multi battery option, 4 stage charging, with optional LCD Bluetooth remote
Frame Type	Black anodized aluminum frame
Certifications	CE
Panel Dimensions	59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm
Weight	26.4 lbs / 12 kg
Warranty	25 years power output (module) / 5 years (controller)
