Name: Rich Solar MEGA 200 MAX | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified
SKU: 506727

Product Details ＋

Rich Solar MEGA 200 MAX | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified

Features:

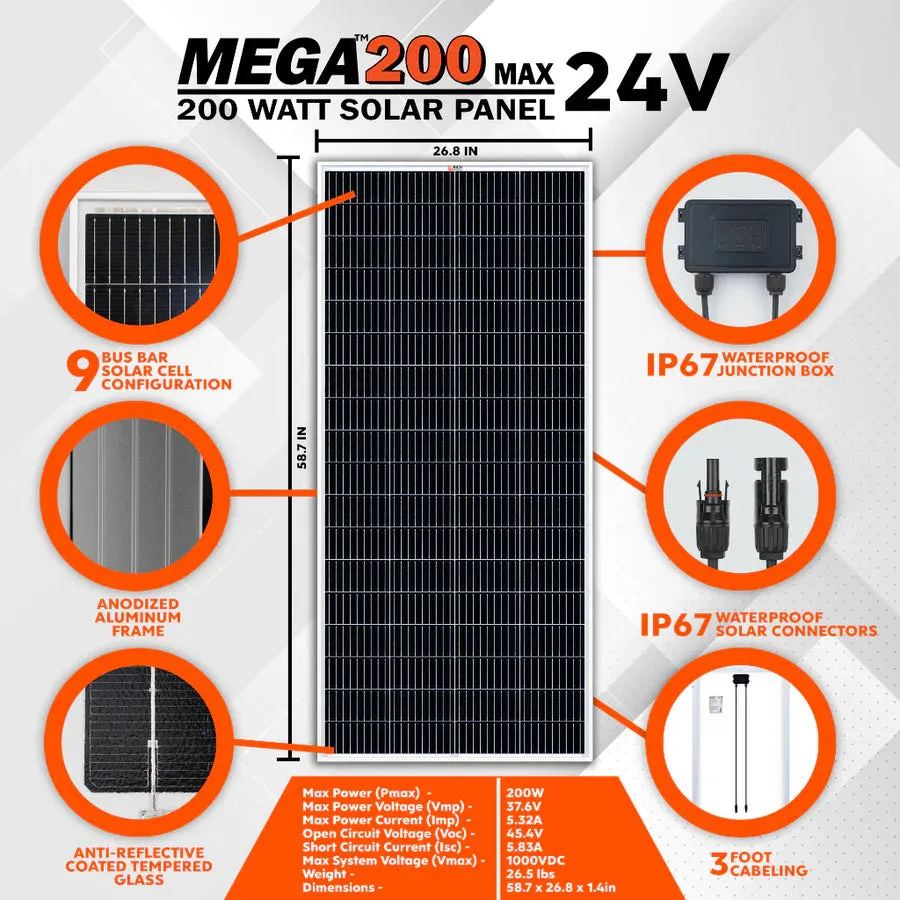

Standard - Size: 58.7'' x 26.8'' x 1.4'', 3' cable with connectors, generate 5.32 amp power, charge 12 volt or 24 volt battery. Industry standard, quick connect cables, work in series or in parallel.
Performance - Excellent low light performance on cloudy days, mornings and evenings. Certified to withstand challenging environmental conditions.

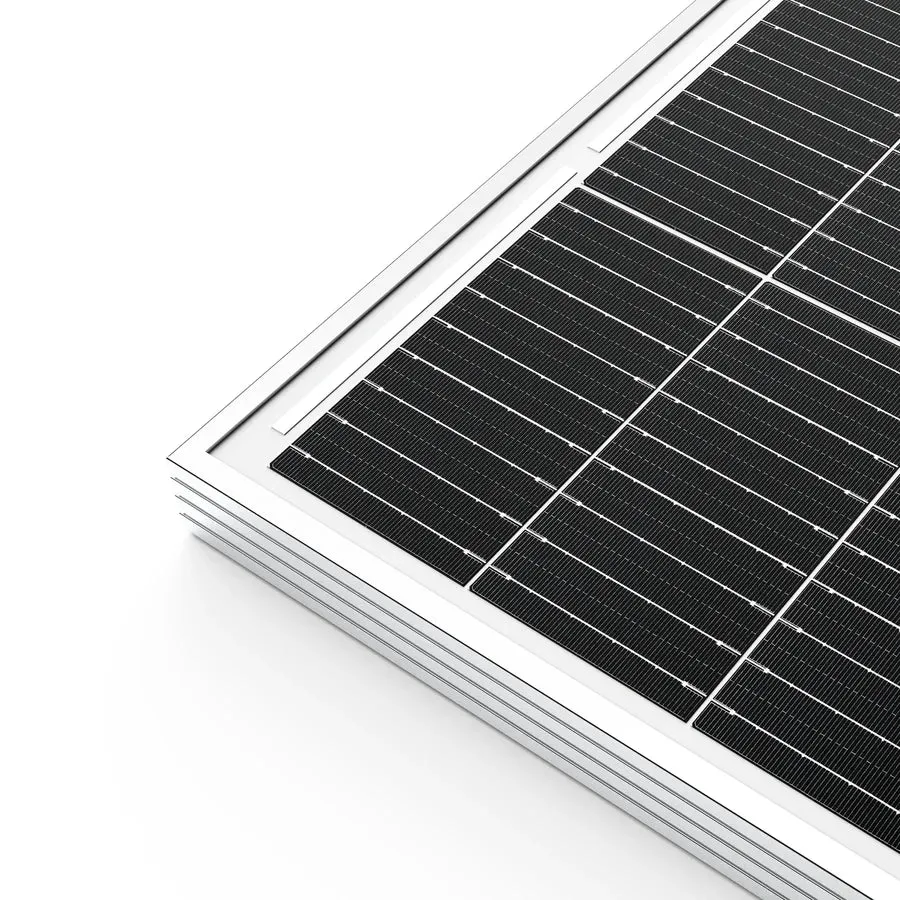

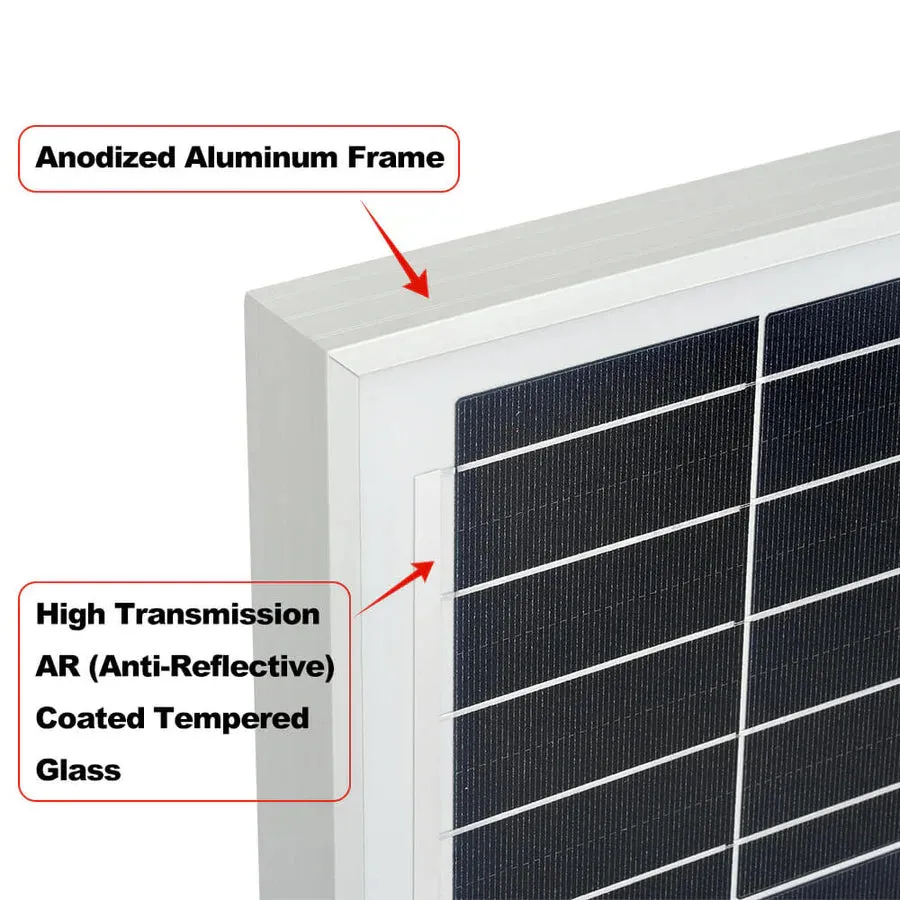

Durable - Built with strong high transmission anti-reflective coated tempered glass and anodized aluminum frame.

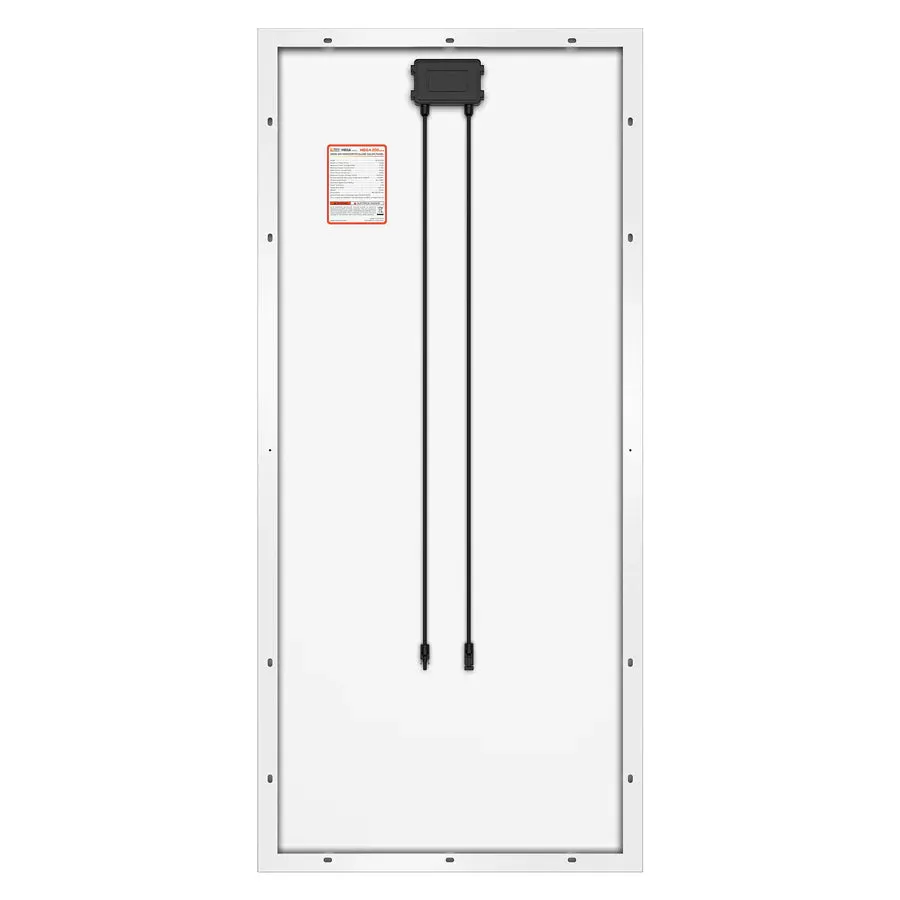

Installation - Fast and easy installation. 14 pre-drilled holes compatible with ground mounts, Z-brackets, side pole mounts and tilt mounts.
Warranty - 25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship.

Built-in Components:

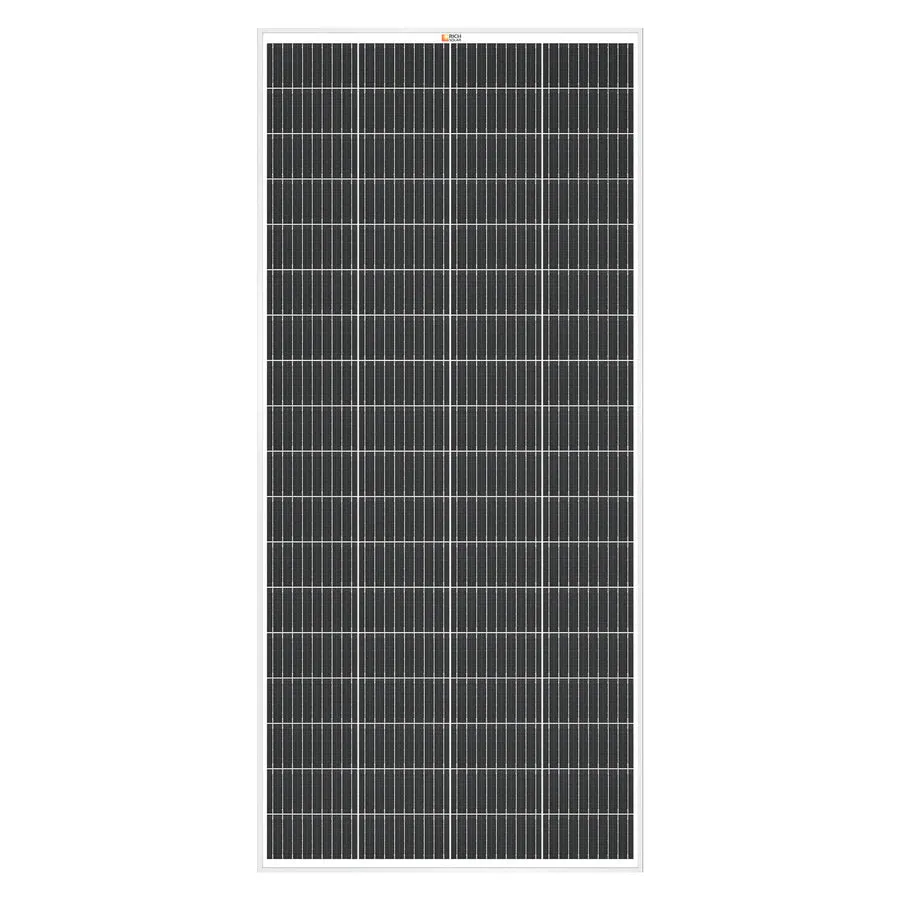

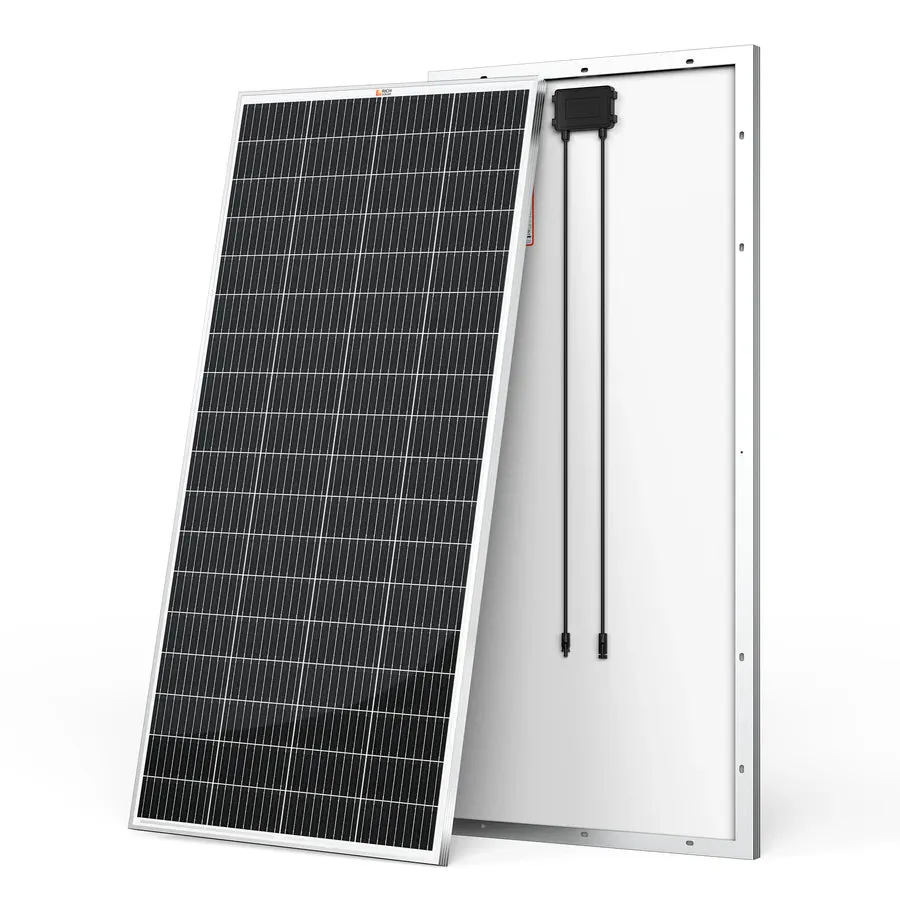

200 watt solar panel
Panel leads (pair): 3 feet each

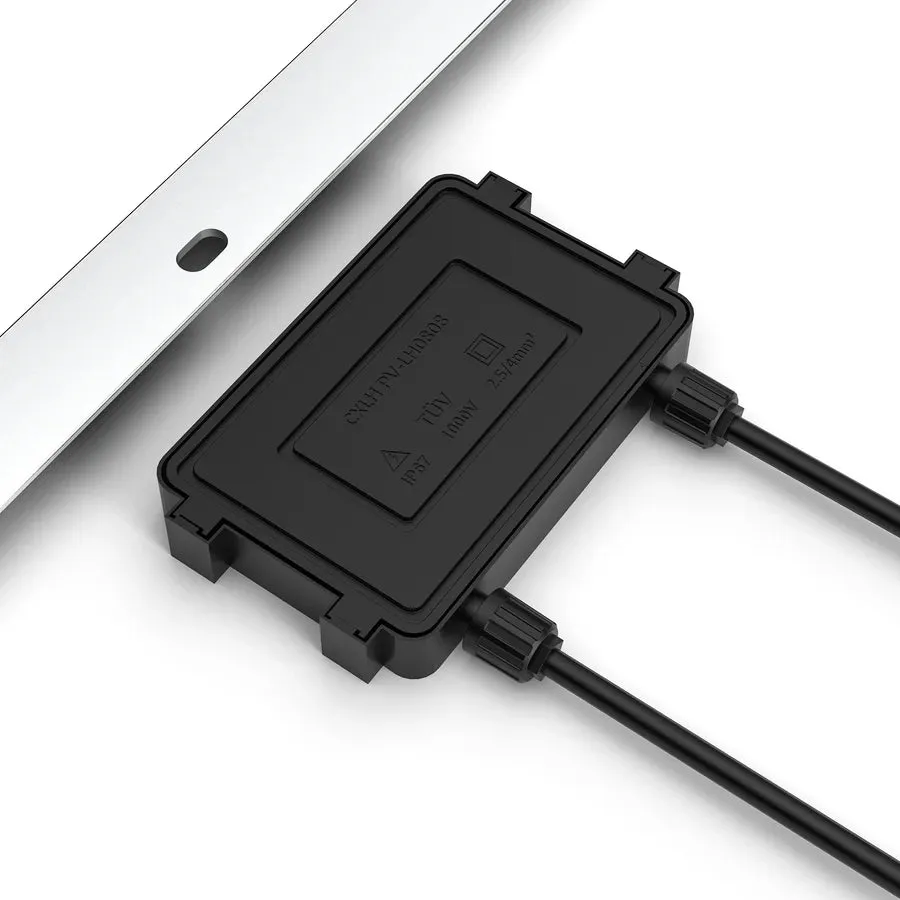

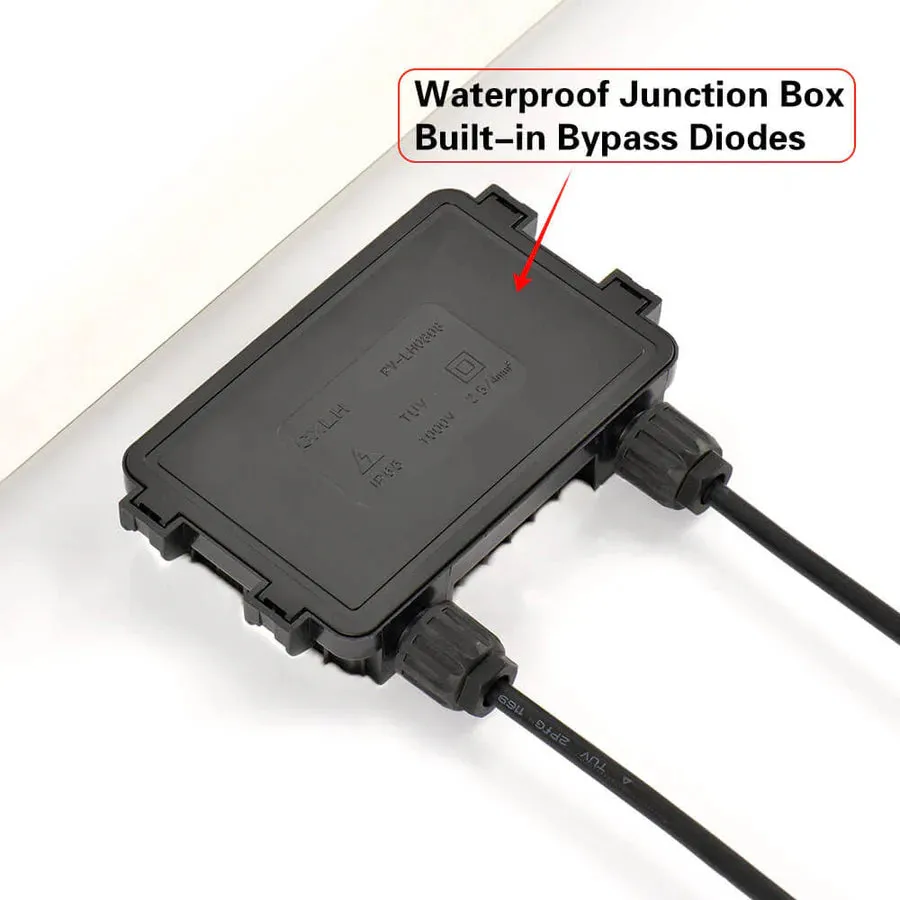

IP65-rated waterproof junction box

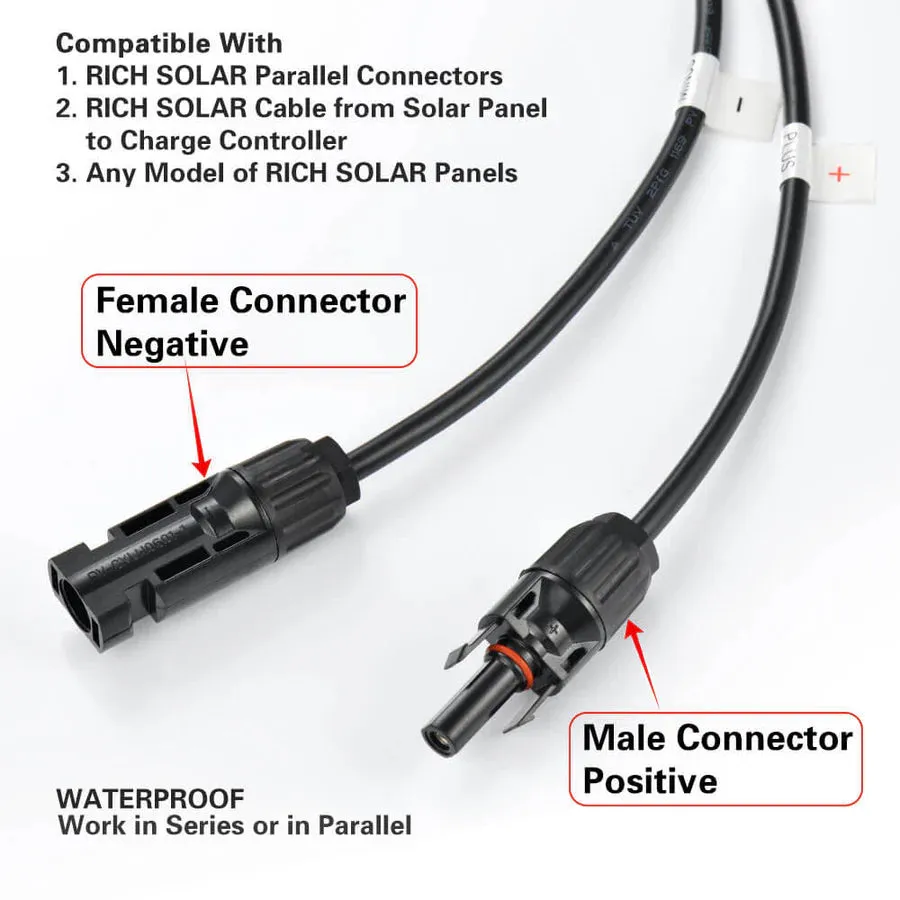

IP67-rated waterproof solar connectors
Bypass diodes built into the junction box

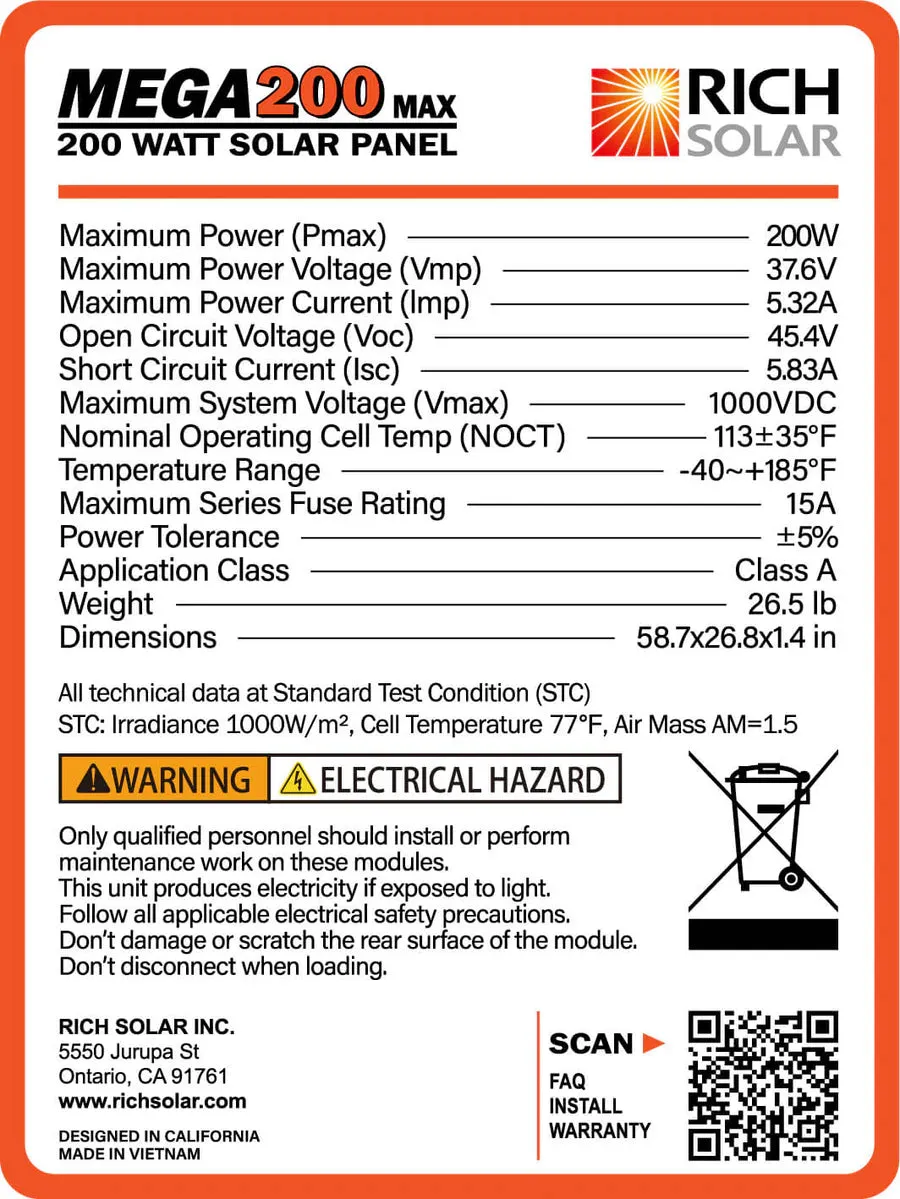

Specifications:

Brand	Rich Solar
Model	RS-M200D
On Panel Cable Length	≈ 35 in

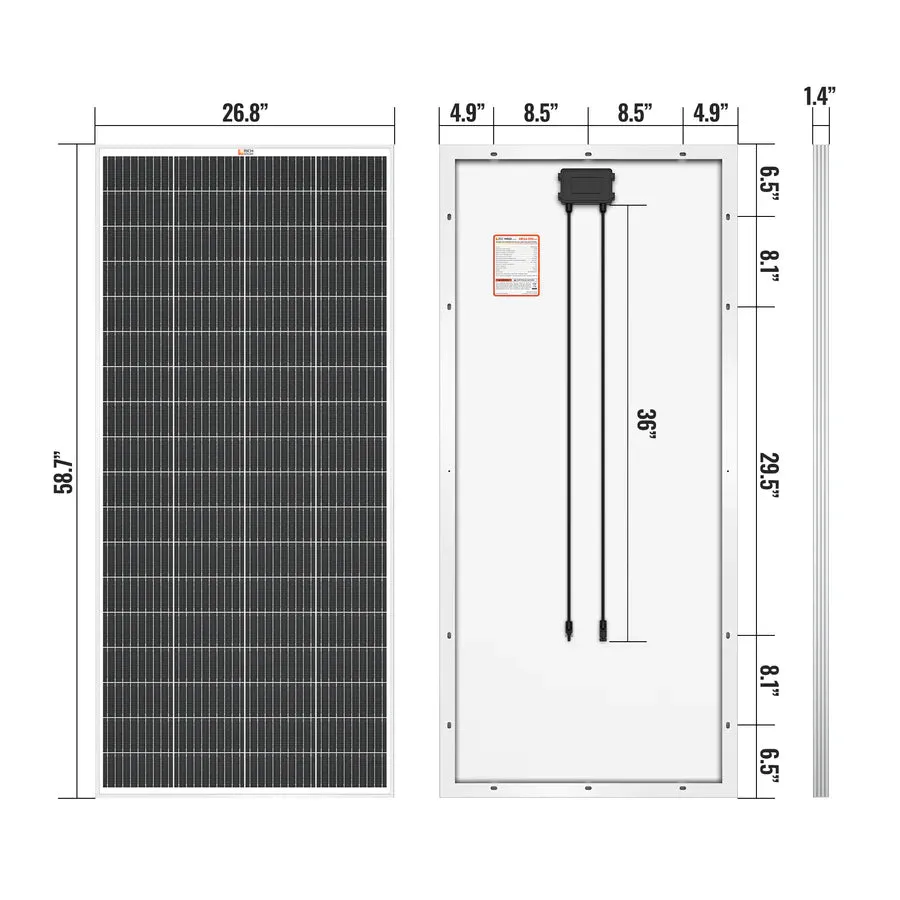

Dimensions	58.7 x 26.8 x 1.4 in
Weight	26.5 Pounds

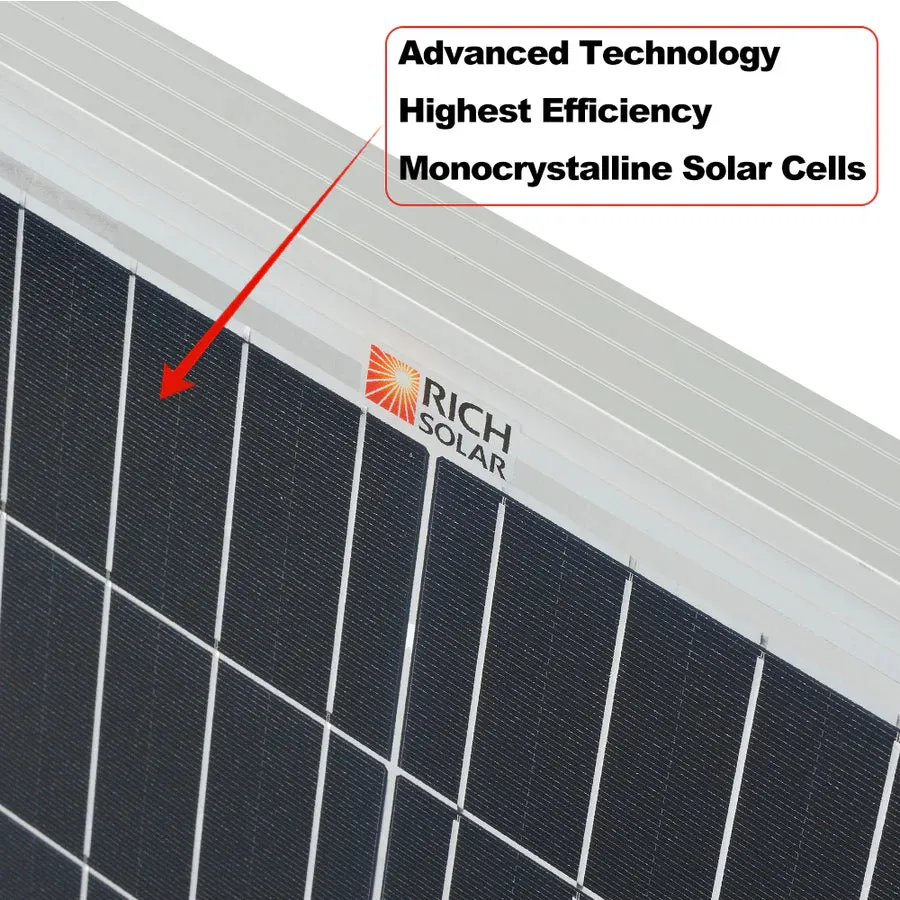

Material	Tempered Glass, Aluminum, Monocrystalline Silicon
Maximum Power(Pmax)	200W
Maximum Power Voltage(Vmp)	37.6V
Maximum Power Current(Imp)	5.32A
Open Circuit Voltage(Voc)	45.4V
Short Circuit Current(Isc)	5.83A
Maximum System Voltage(Vmax)	1000VDC
Max Series Fuse Rating	15A
Temperature Range	-40°F~ 185°F
