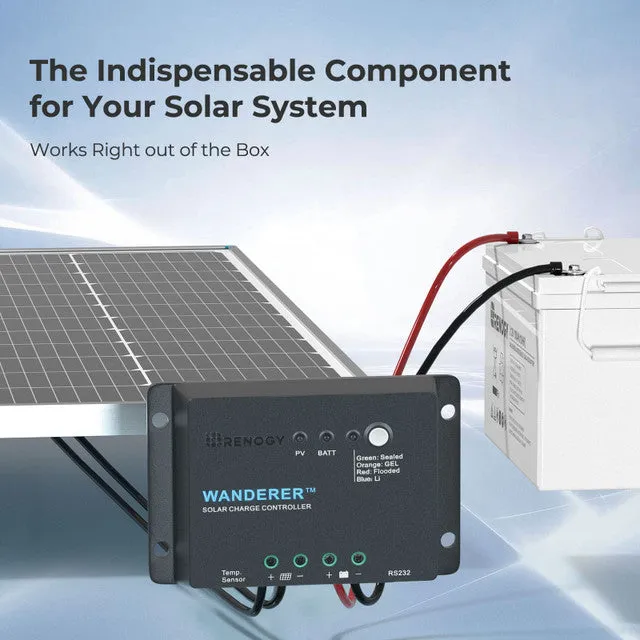

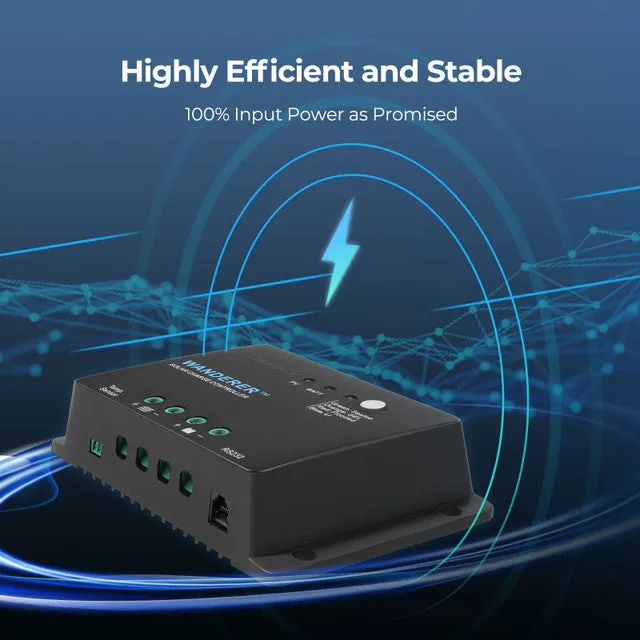

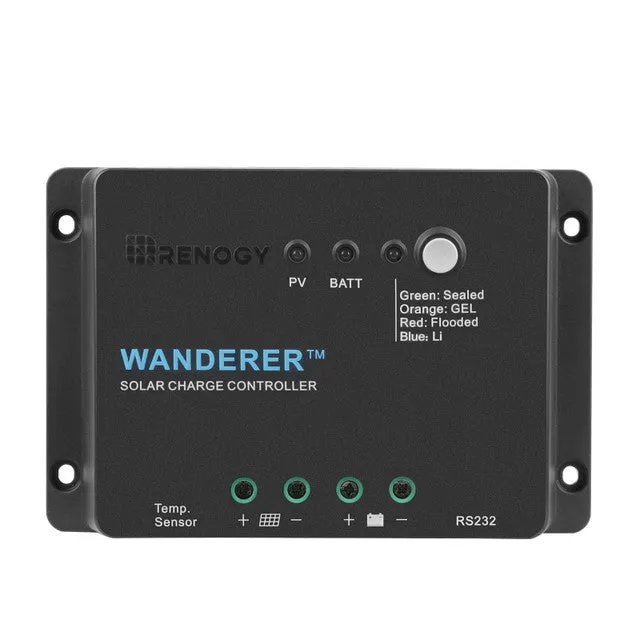

Renogy Wanderer 30 Amp 12V PWM Negative Ground Solar Charge Controller

Monitor your energy system anytime anywhere with the Renogy Wanderer 30 Amp 12V PWM Negative Ground Solar Charge Controller, the ultimate solution for all your solar power needs. This high-quality charge controller is designed to efficiently regulate the power output of your solar panels, ensuring optimum performance and maximum output.

With its advanced PWM technology and negative ground design, the Wanderer is capable of handling up to 30 Amps of charging current, making it perfect for a wide range of applications. Whether you're powering your RV, boat, cabin, or off-grid system, this controller will ensure that your batteries are charged and maintained effectively.

Easy to install and operate, the Wanderer features a clear LCD that provides real-time data on your system's performance, including battery voltage, charging current, and more. Its durable construction and reliable performance make it the ideal choice for any solar power system. It provides all-round protection against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation.

Empower your off-grid life and explore more solar possibilities with the Renogy Wanderer 30 Amp 12V PWM Negative Ground Solar Charge Controller and experience the difference that quality and performance can make!

Highlights:

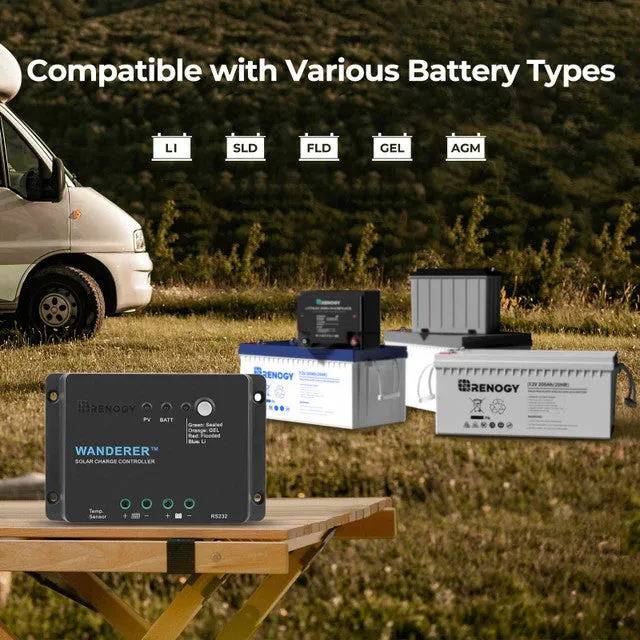

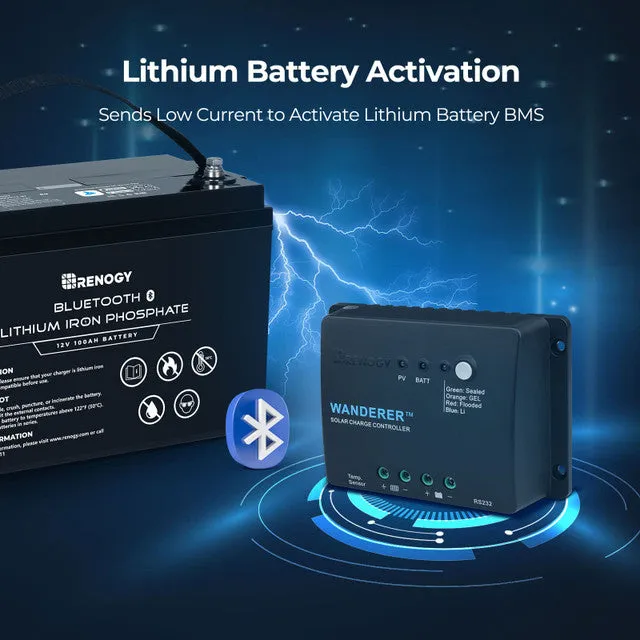

•    Optimized for 12V Batteries, including lithium batteries
•    Full system protection
•    Smart 4-Stage PWM charging

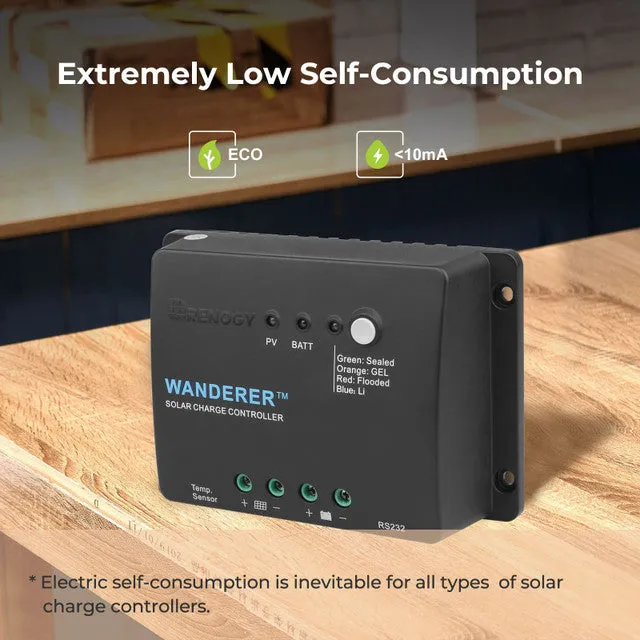

•    Extremely low self-consumption

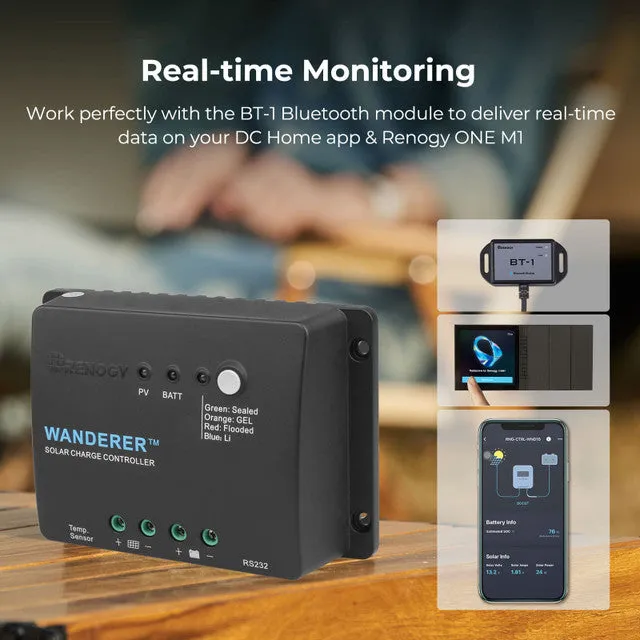

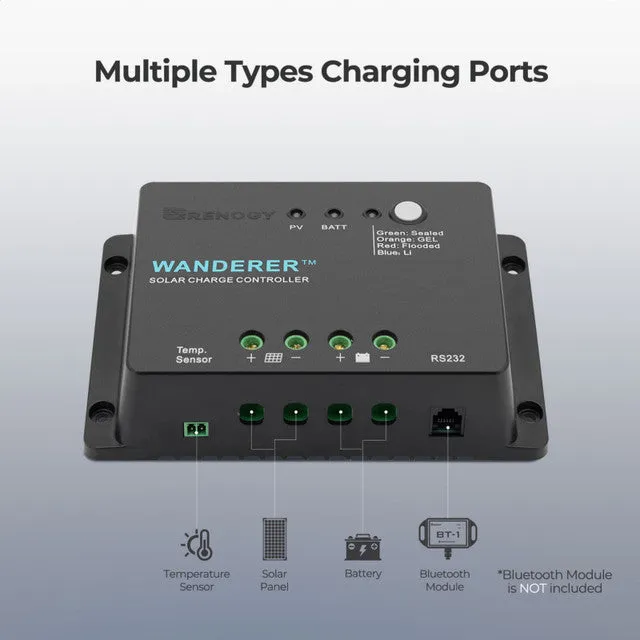

•    Real-time monitoring with integrated RS232 port

SPECIFICATIONS:

Nominal Voltage: 12 VDC

Max. PV Input Power: 400W

Rated Charge Current: 30A

Max. PV Input Voltage: 25 VDC

Self-Consumption: <10mA

High Voltage Disconnect: 16V

Boost Duration: 120 min

Temperature Compensation: -3mV/°C/2V

Working Temperature: -20°F - 113°F

Storage Temperature: -31°F - 176°F

Max Gauge Size: Up to 8AWG

Weight: 0.65 lbs

Dimensions: 6.45 x 4.31 x 1.76 inches

Enclosure: IP20

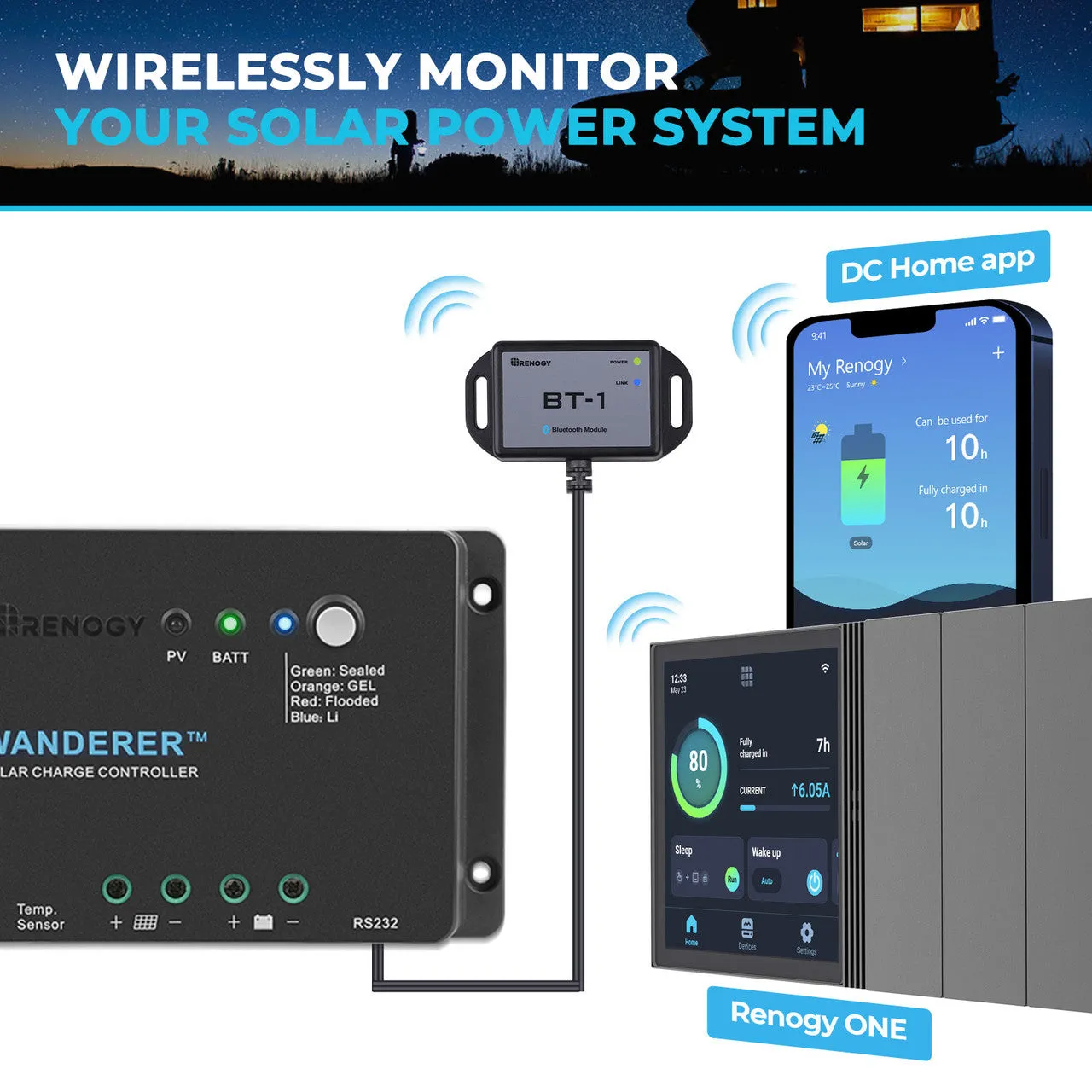

Compatible Bluetooth: Renogy BT-1 Bluetooth module

Warranty - Accessories: 1-year material warranty

Charge Controllers: Wanderer

WHAT’S IN THE BOX:

1 x Wanderer 30A PWM Charge Controller

Renogy Wanderer 30 Amp 12V PWM Negative Ground Solar Charge Controller
