RENOGY 60A Solar Charge Controller with Core

Make a foray into the renewable energy era with Renogy 60A Solar Charge Controller with Core, a comprehensive system protection tailor-made to secure your solar power system. Enjoy 98% peak conversion efficiency and a 99% MPPT tracking efficiency, boosting your green energy goals with minimal costs and carbon footprint.

MAXIMIZED SYSTEM FLEXIBILITY

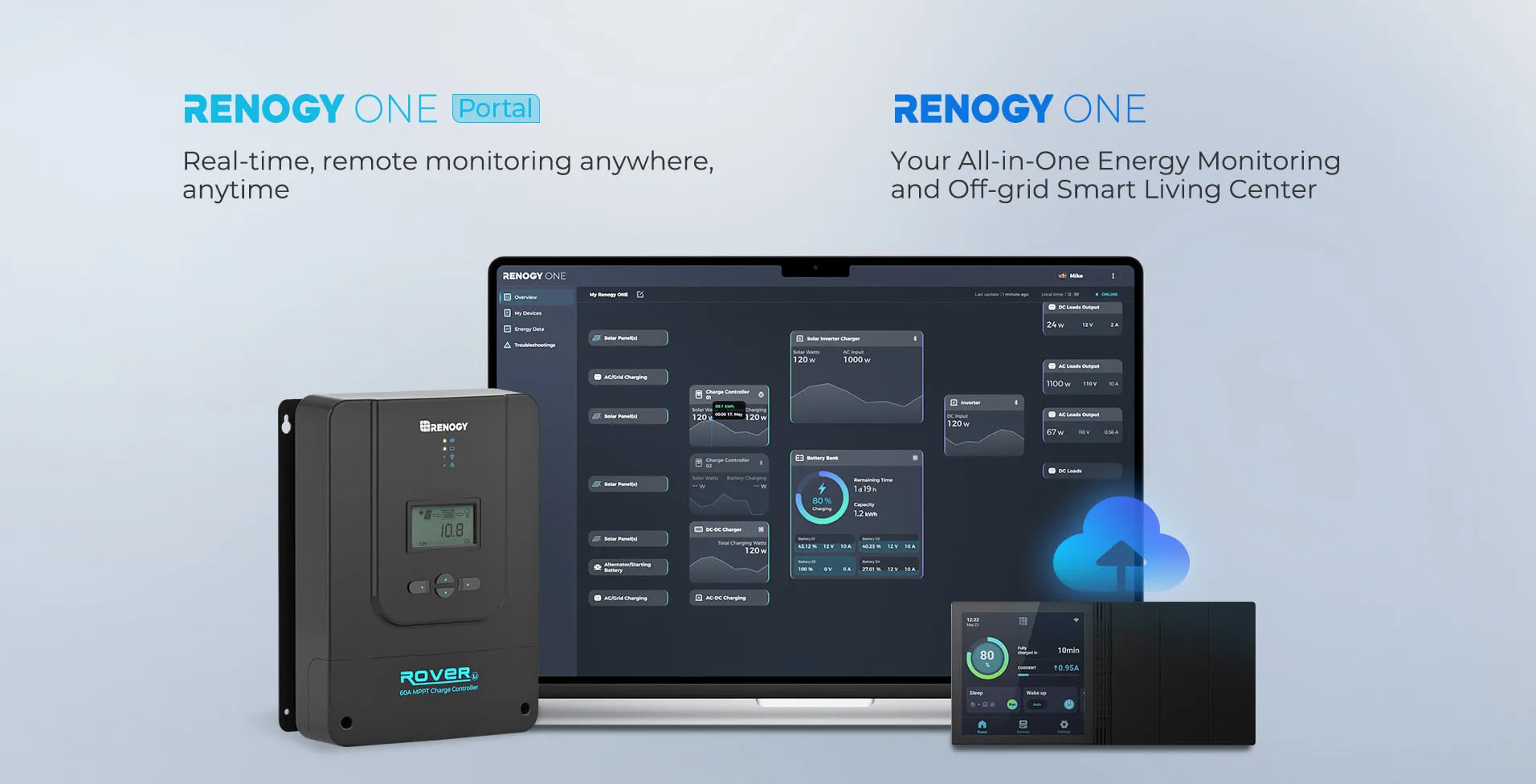

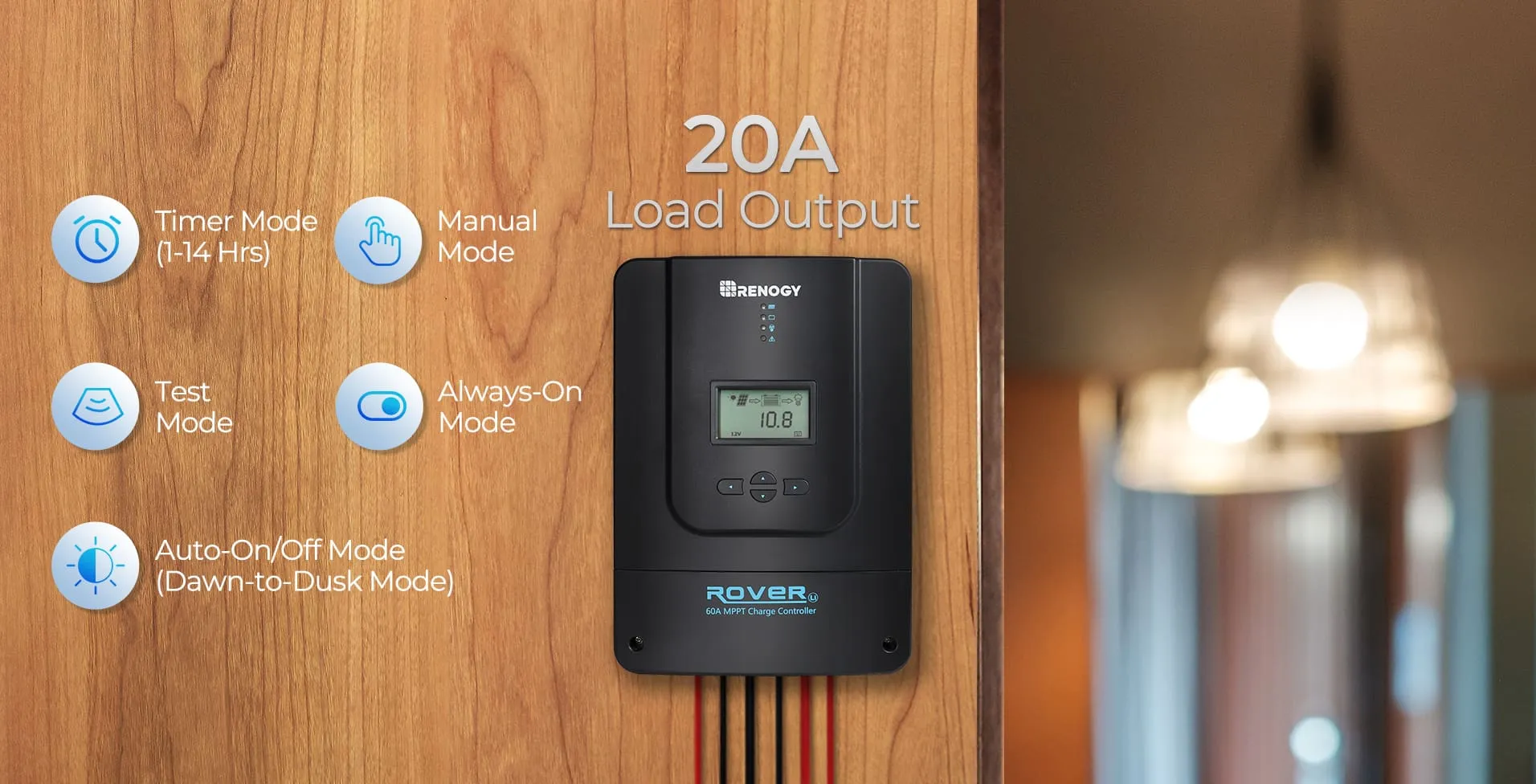

Enhance your solar systems power conversion performance with smarter energy management. Renogy One designed for off-grid smart living provides with an intuitive view of your solar system. The Rover 60A charge controller handles load control with Auto On/Off, Timer, Manual, Test and Always-on Modes. Explore Li-ion battery activation option by activating dead batteries with a small current trigger.

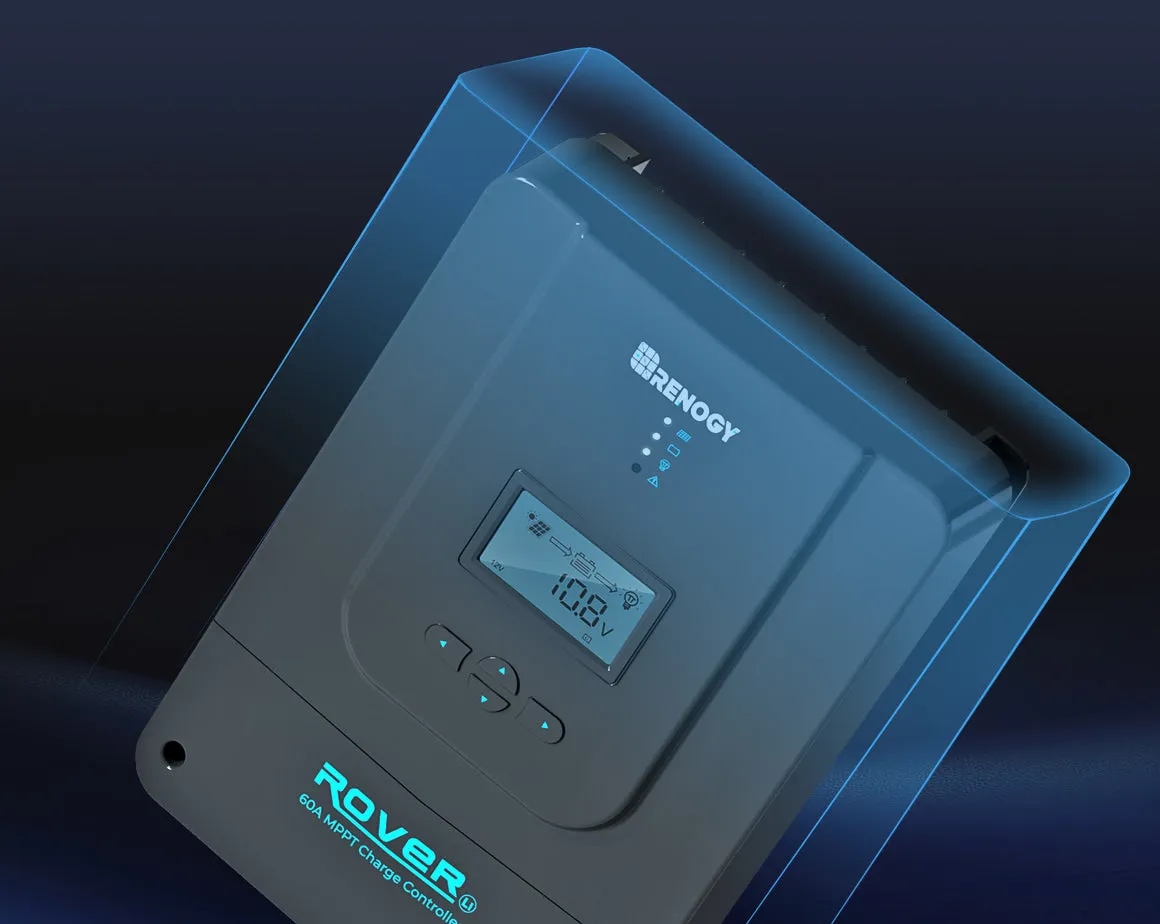

INSULATED CASING

Our superior quality insulation gives Renogy Controller with Core optimal protection against electrical hazards making it the most reliable charging solution.

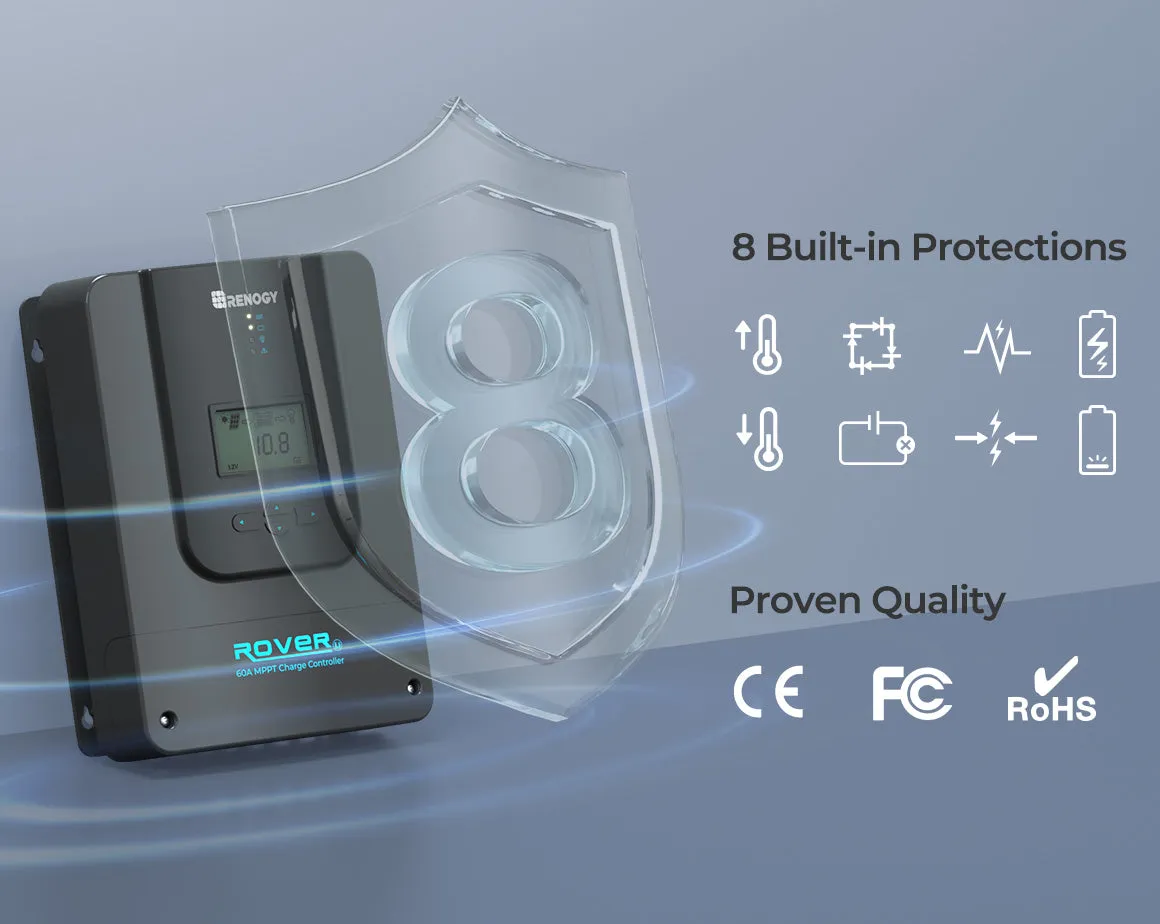

CERTIFIED PROTECTIONS

Renogy Rover 60A boasts of 8 in-built electronic protections that actively monitor any change in voltage, load and current and automatically adjust modes for safe and efficient battery charging.

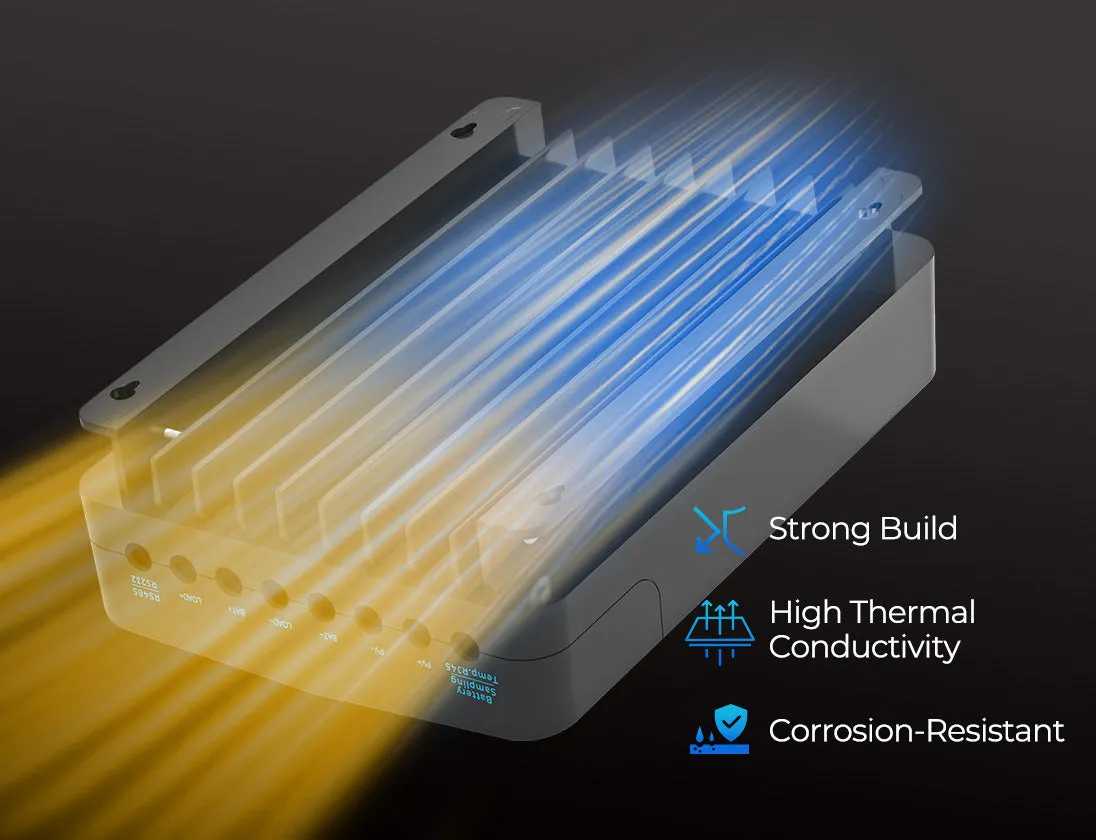

DURABLE DESIGN

Rover 60A Solar Charge Controller is made of robust die-cast aluminum with a heat sink that dispenses heat through tubes protecting critical components and allowing maximum charging efficiency.

PRECISION CHARGING

Extending the efficiency of your solar power system with the perfect charge every time, the Rover 60A Solar Charge Controller with its temperature sensor tracks the battery temperature 24/7 to handle under charging in -40°F cold weather conditions and over-charging in blazing 149°F.

Highlights:

• Precise voltage control in 1.04ns
• 99% Tracking Efficiency
• 98% Conversion Efficiency
• Expand up to 6400W for a 48V residential system
• Expand up to 800W for a 12V RV system

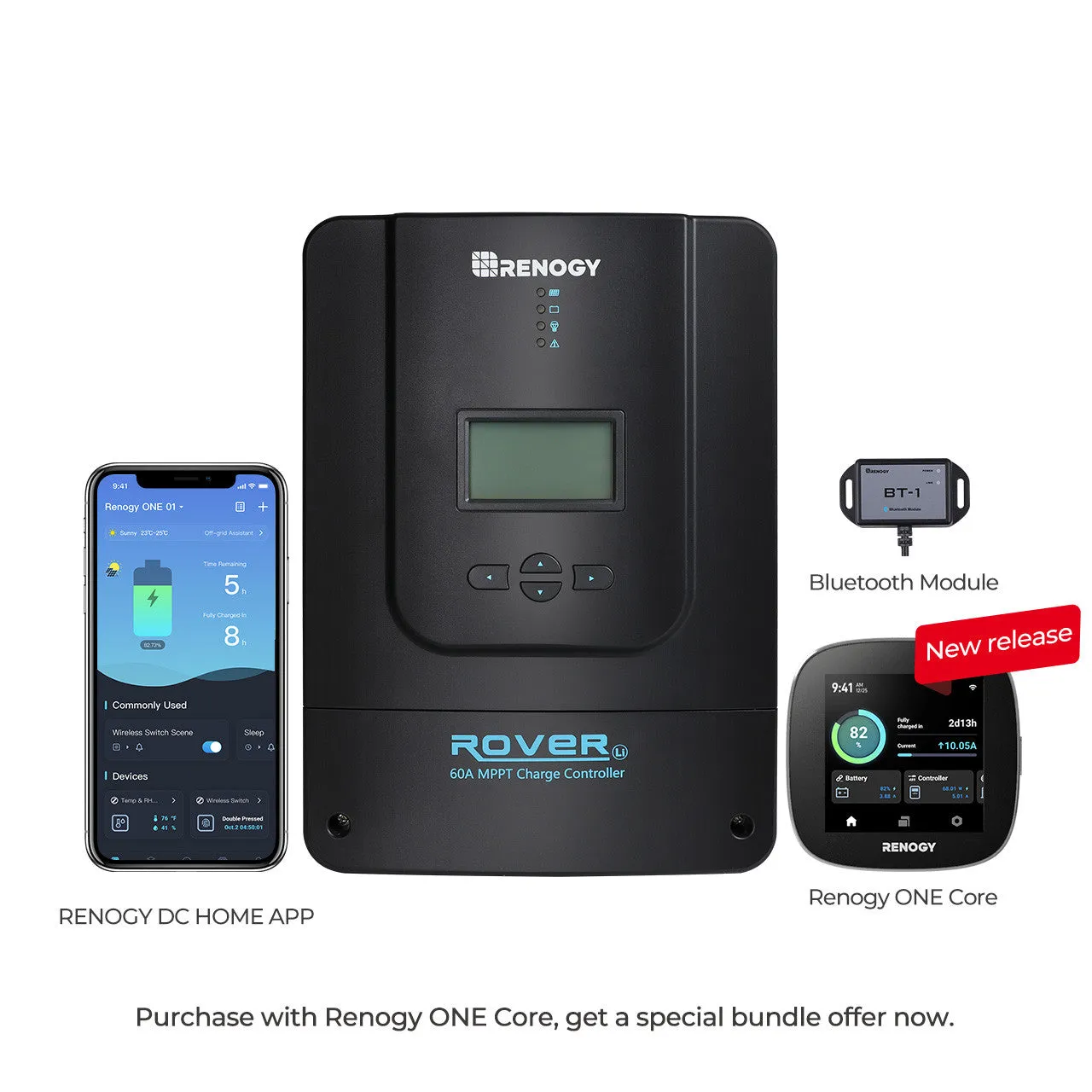

• Remote monitoring and control via Bluetooth

Specifications:

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Self-Consumption: 0.7W-1.2W

Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )

Temperature Compensation: -3mV/°C/2V (default)

Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

Weight: 7.9lbs

Enclosure: IP32

Terminals: 25mm2 4AWG

Certification: CE / ROHS

Compatible bluetooth: Renogy BT-1 Bluetooth module

Warranty: 2-year material warranty

Charge Controllers: Rover

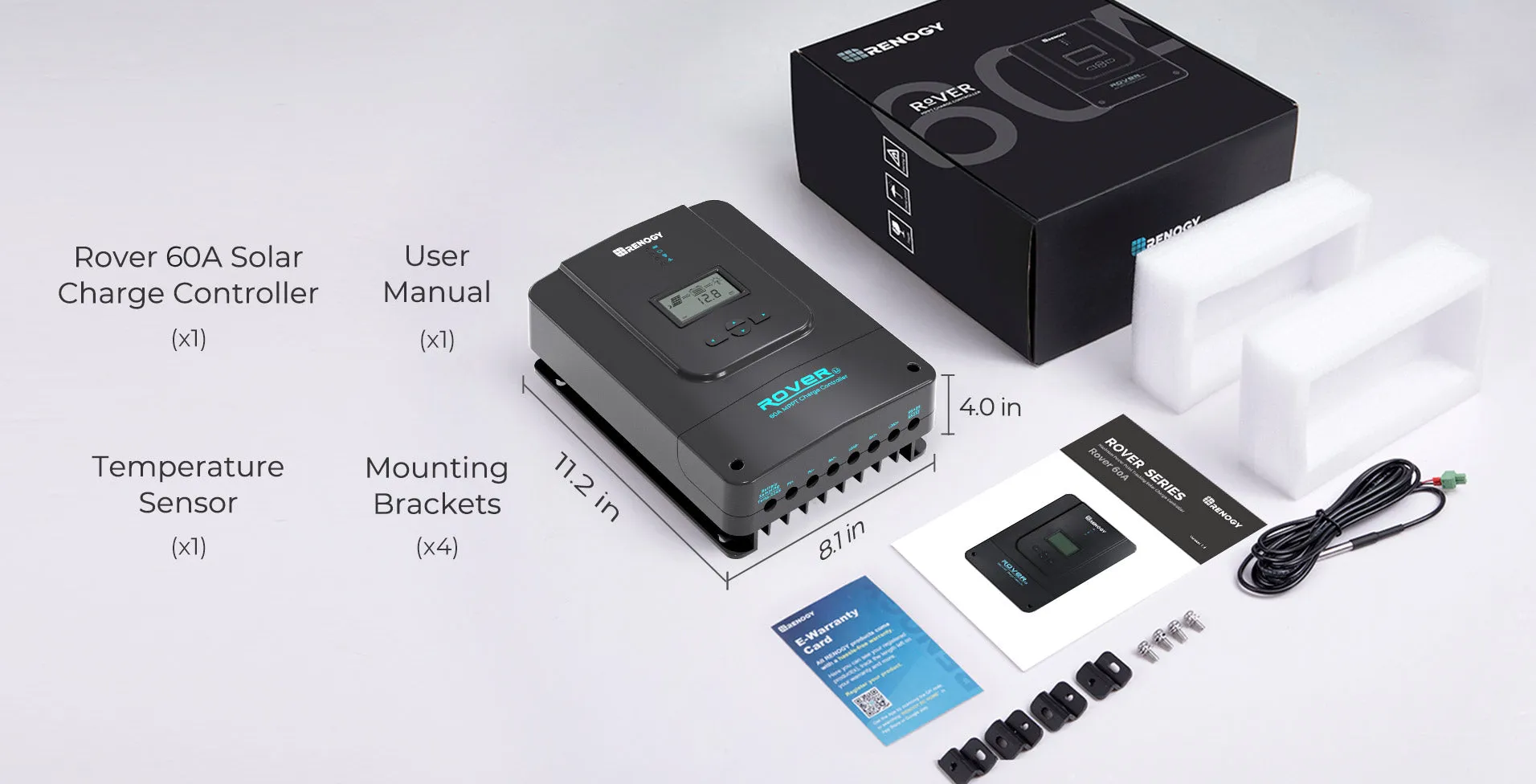

What's in the Box:

1 x Rover 60Amp MPPT Solar Charge Controller

1 x Remote Temperature Sensor

4 x Mounting Brackets

1 x Options: BT-1 Bluetooth Module
