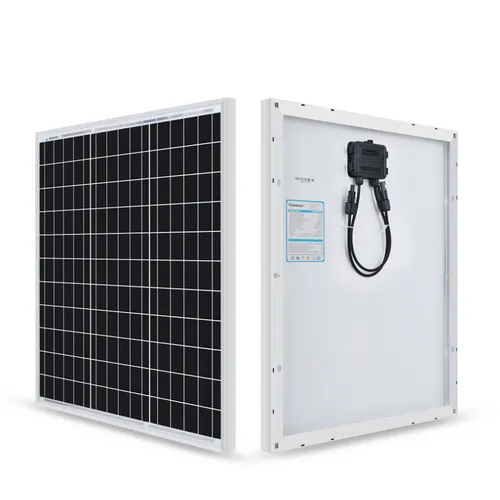

Renogy 50W Rigid Solar Panel(Compact Design)
A compact solar panel designed exclusively for your green energy goals, Renogy 50W Rigid Solar Panel, a 12V monocrystalline panel for beginners looking to foray into the sustainable energy module and pros looking for small solar set up.
More compact than ever, Renogy 50W rigid solar panel is fitted with MC4 leads making it a versatile add on to your existing off-grid power solutions. Build from scratch or expand your solar energy system from simple backyard lighting and sprinkling applications to seasoned camping and boating adventures, Renogy's rigid and compact solar panel provides you with the much needed power boost.
Highlights:

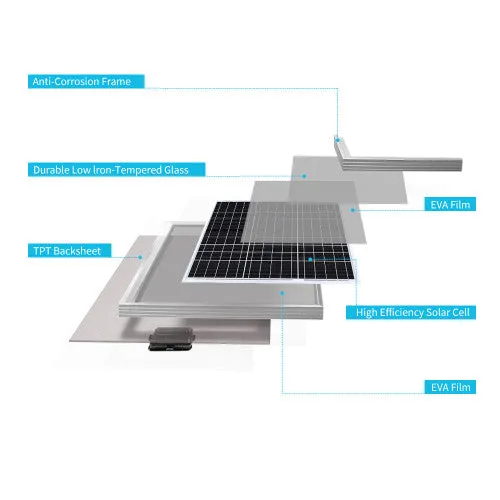

- Reliable encapsulation material with multi-layered sheet laminations
- Bypass diodes for optimal performance in low-light conditions
- Small yet mighty, built to withstand high winds (2400pa) and snow loads (5400pa)
- Anti-reflective, high-transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- Versatile use with on-grid and off-grid inverters
- Installation ready with pre-drilled holes
- Renogy compatible mounting systems - Z brackets, Pole Mounts, Tilt Mounts, Ground Mount
Specifications:

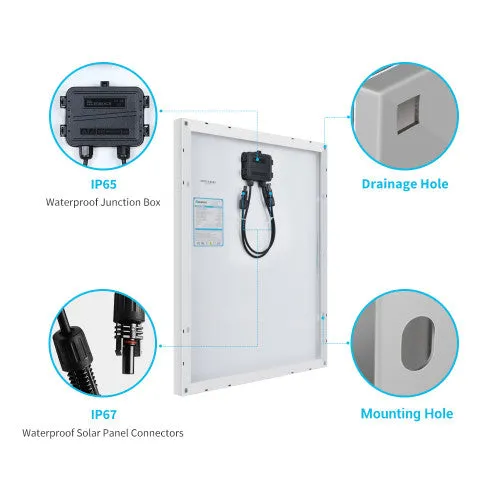

Junction Box: IP65
Solar Connectors: IP67
Panel Leads (Pair): 14AWG
Output Cables: 1.31 ft
Connectors: Solar Connectors
Maximum Power: 50W
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 18.6V
Open-Circuit Voltage (Voc): 22.3V
Optimum Operating Current (Imp): 2.69A
Short-Circuit Current (Isc): 2.94A
Weight: 7.72 lb

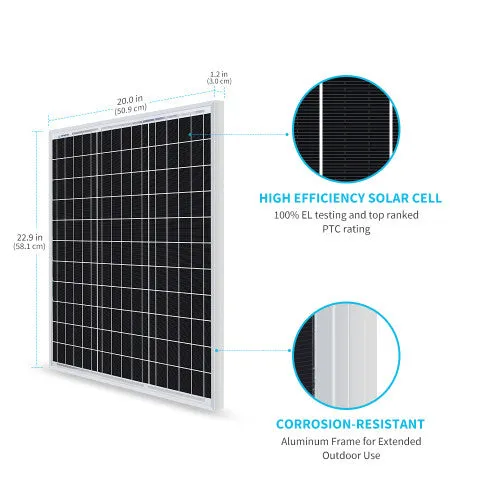

Dimensions: 22.9 x 20.0 x 1.2 in
Operating Temperature: -40°F to 194°F(-40°C to 90°C)
Panel Leads (Pair): 14AWG (4 m / 1.3 ft long)
Material and workmanship warranty: 5 years
Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
What's in the Box:
1 x Renogy 50W 12V Monocrystalline Solar Panel
1 x User Manual
