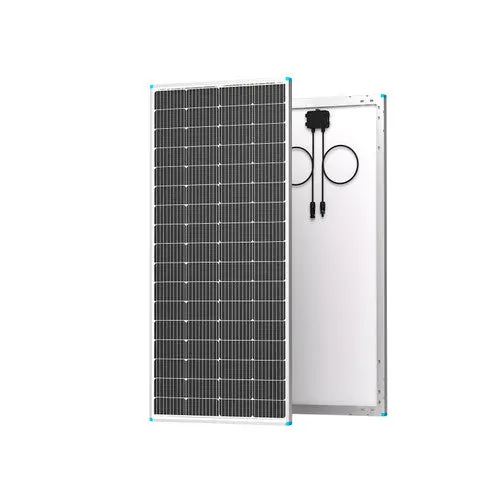

Renogy 200W Rigid Solar Panel

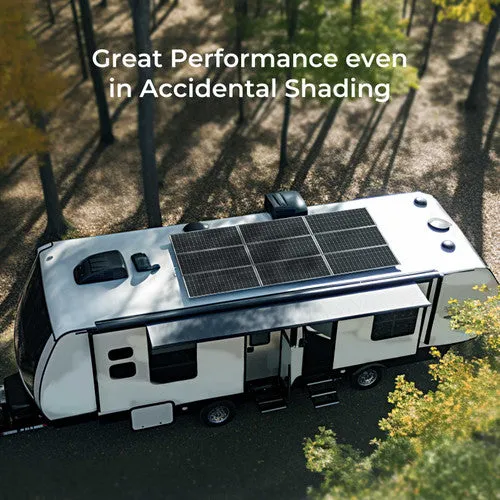

The Renogy 200W Rigid Solar Panel is a high-performance solar panel designed to deliver efficient energy for various off-grid applications, including RVs, boats, and cabins. This durable panel is built with high-quality materials to withstand harsh environments, making it an excellent choice for long-term outdoor use.
200W Power Output
Provides up to 200W of clean solar energy suitable for powering 12V batteries or running small off-grid appliances.

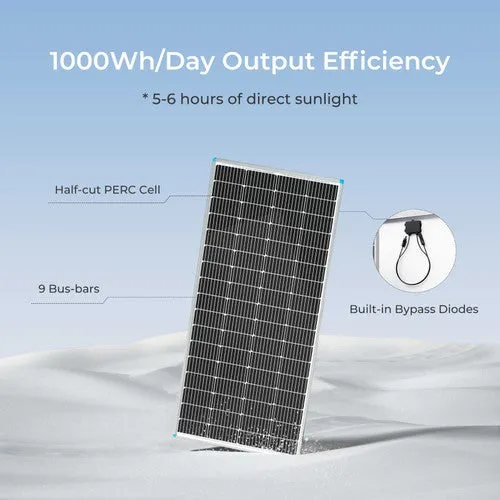

High-Efficiency Monocrystalline Cells
Renogy’s monocrystalline solar cells are known for their high efficiency, ensuring consistent energy production even in low-light conditions, helping you maximize energy generation.

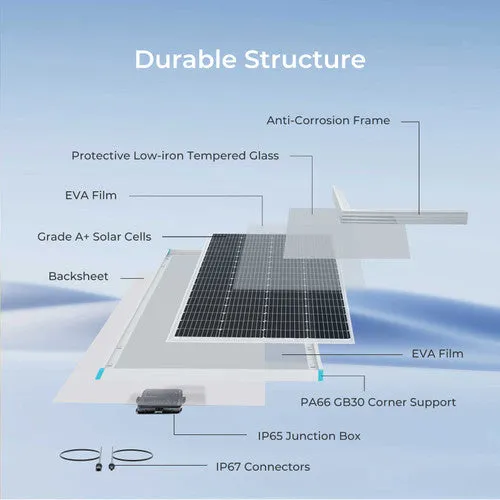

Durable Aluminum Frame
The rigid panel is built with a corrosion-resistant aluminum frame, ensuring longevity and the ability to withstand snow, wind, and other environmental challenges.
Weather-Resistant Design
With an IP65-rated junction box, the panel is protected from low-pressure water jets and environmental particles, making it ideal for outdoor use in diverse weather conditions.
Pre-Drilled Holes for Easy Installation
The panel comes with pre-drilled holes for quick mounting and installation, compatible with Renogy’s Z-brackets, pole mounts, and tilt mounts.
Specifications:
- Max Power at STC: 200W
- Open Circuit Voltage: 23V
- Short Circuit Current: 11.05A
- Optimum Operating Voltage: 19.2 V
- Optimum Operating Current: 10.42 A
- Operating Temperature: -40°F~194°F / -40℃~90℃
- Maximum System Voltage: 600 VDC UL
- Maximum Series Fuse Rating: 20A
- Output Cable: 13 AWG (2.6 ft long)

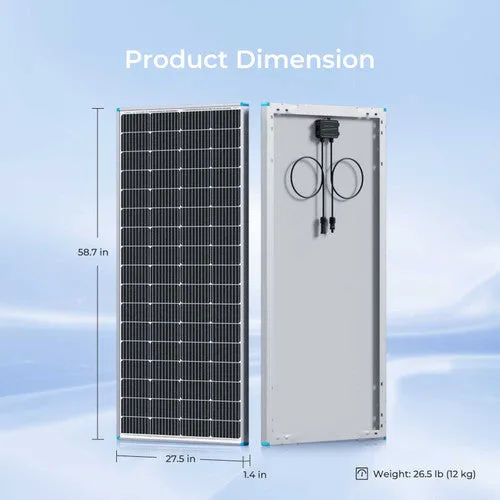

- Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm
- Weight: 26.46 lb (12 kg)
- Solar Cells: 68 Cells ((2 2)*17)
- Junction Box: IP65
- Connectors: Solar Connectors
- Module Efficiency: 19.2%
- Cell dimension: (158.75 x 158.75) mm / (6.25 x 6.25) in x 40 cells
- Material and workmanship warranty: 10-Year Workmanship Warranty

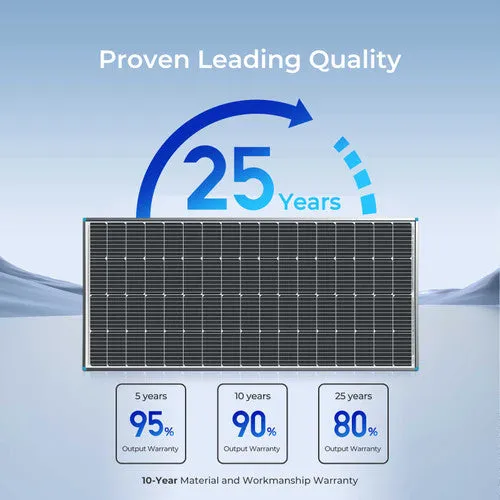

- Performance Warranty: Over 80% Output at 25 Years
What's in the Box:
1x Renogy 200W Rigid Solar Panel
1 x User Manual
