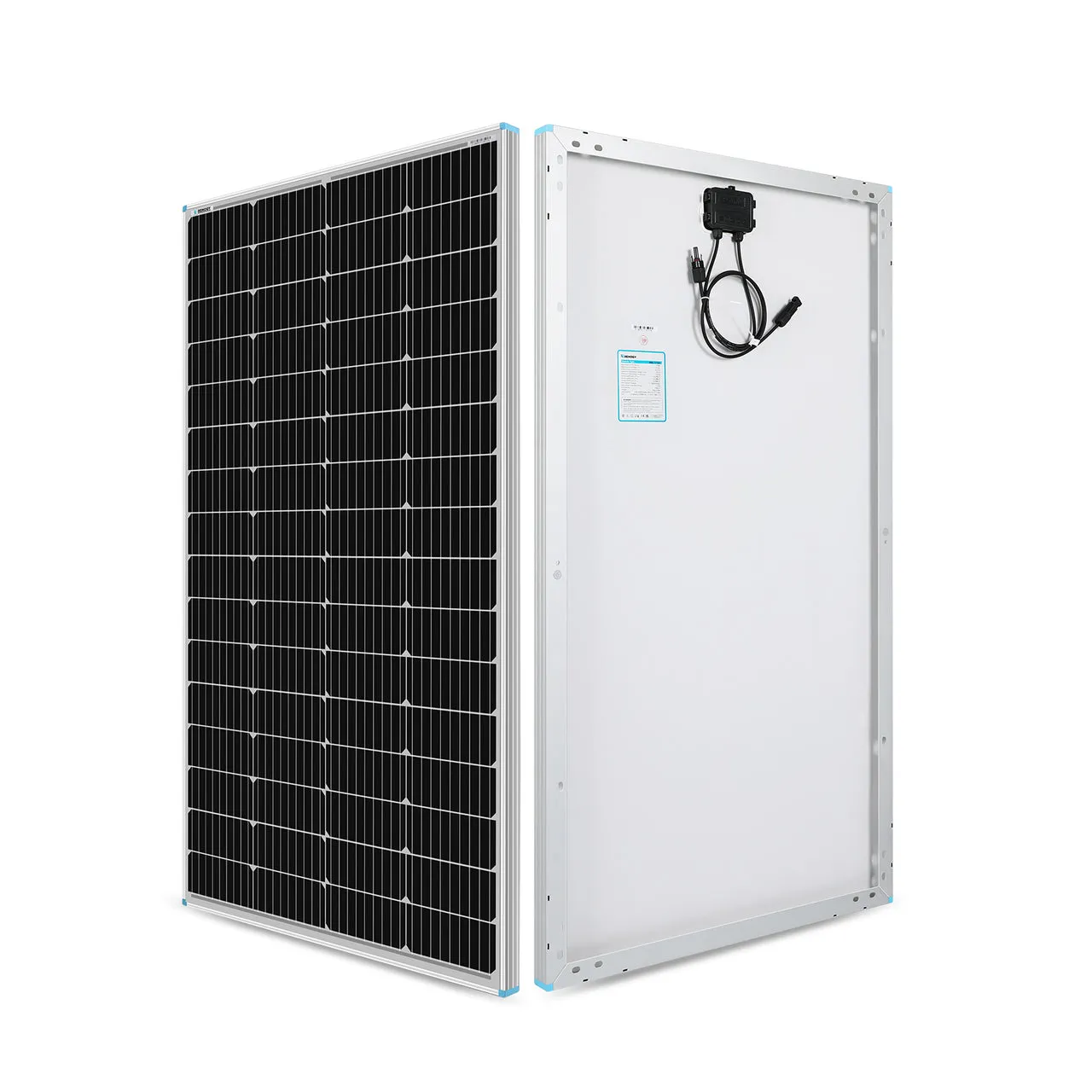

Renogy 175W Rigid Solar Panel（NEW）
The Renogy 175W Rigid Solar Panel (NEW) is designed for those seeking a reliable and high-efficiency solar energy solution for off-grid setups such as RVs, boats, and cabins. It offers durability and superior performance in both residential and mobile installations.
High Power Output
With a maximum power output of 175W, this panel provides high energy generation, making it ideal for systems that require more power in limited spaces.
Durable Construction

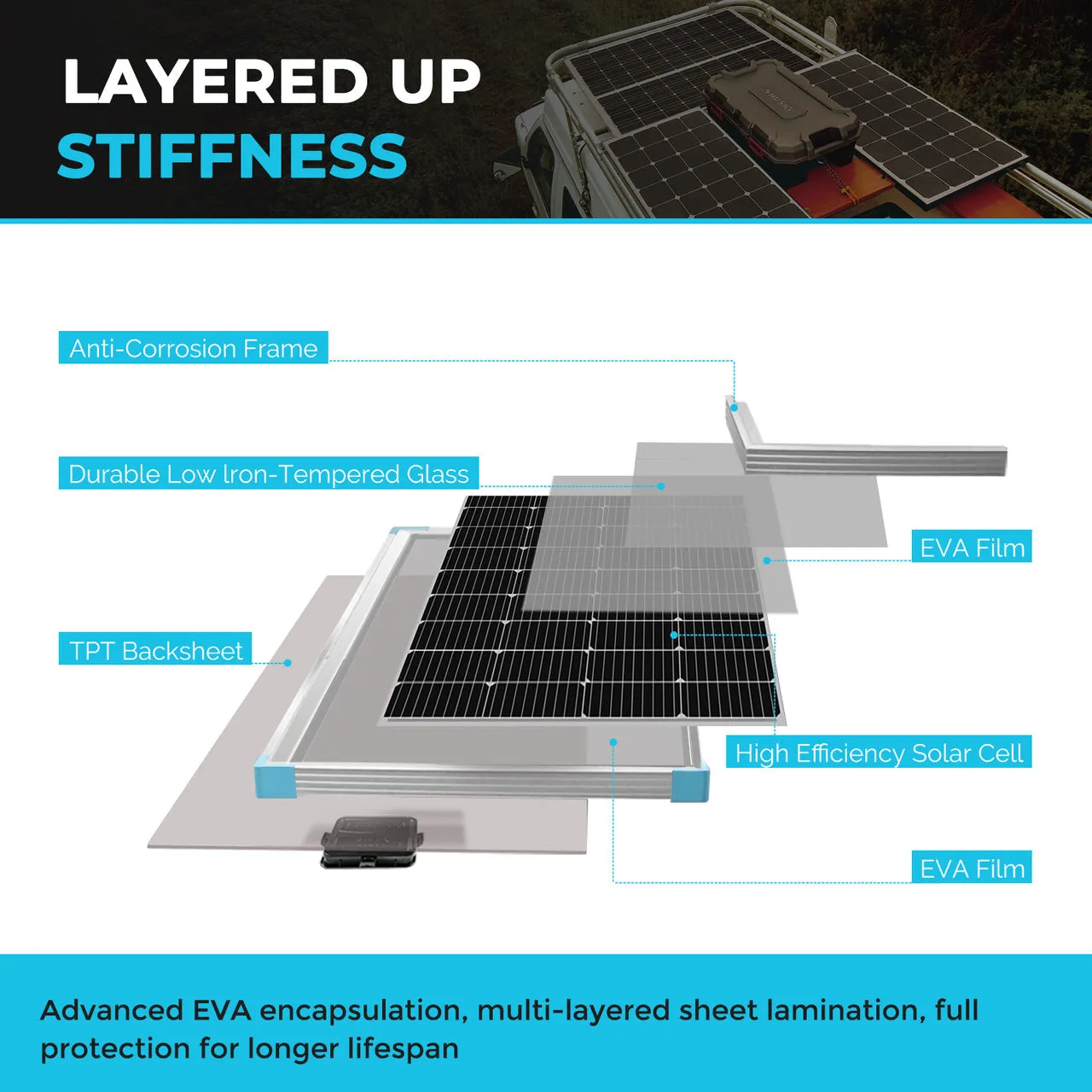

Built with a corrosion-resistant aluminum frame and tempered glass, this panel is designed to withstand harsh weather conditions, including high winds and heavy snow. The frame ensures the panel’s longevity, providing a stable and long-term energy solution.
High Efficiency

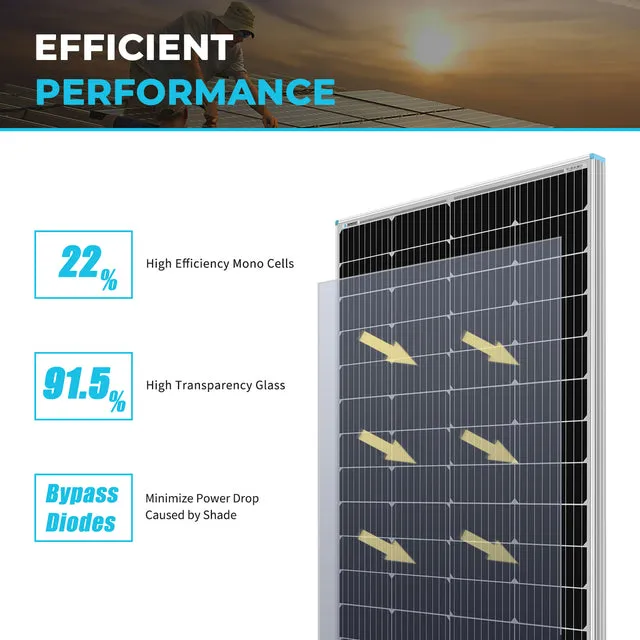

Using advanced monocrystalline solar cells, the panel achieves a high energy conversion efficiency of up to 21%, maximizing power output even in low-light environments.

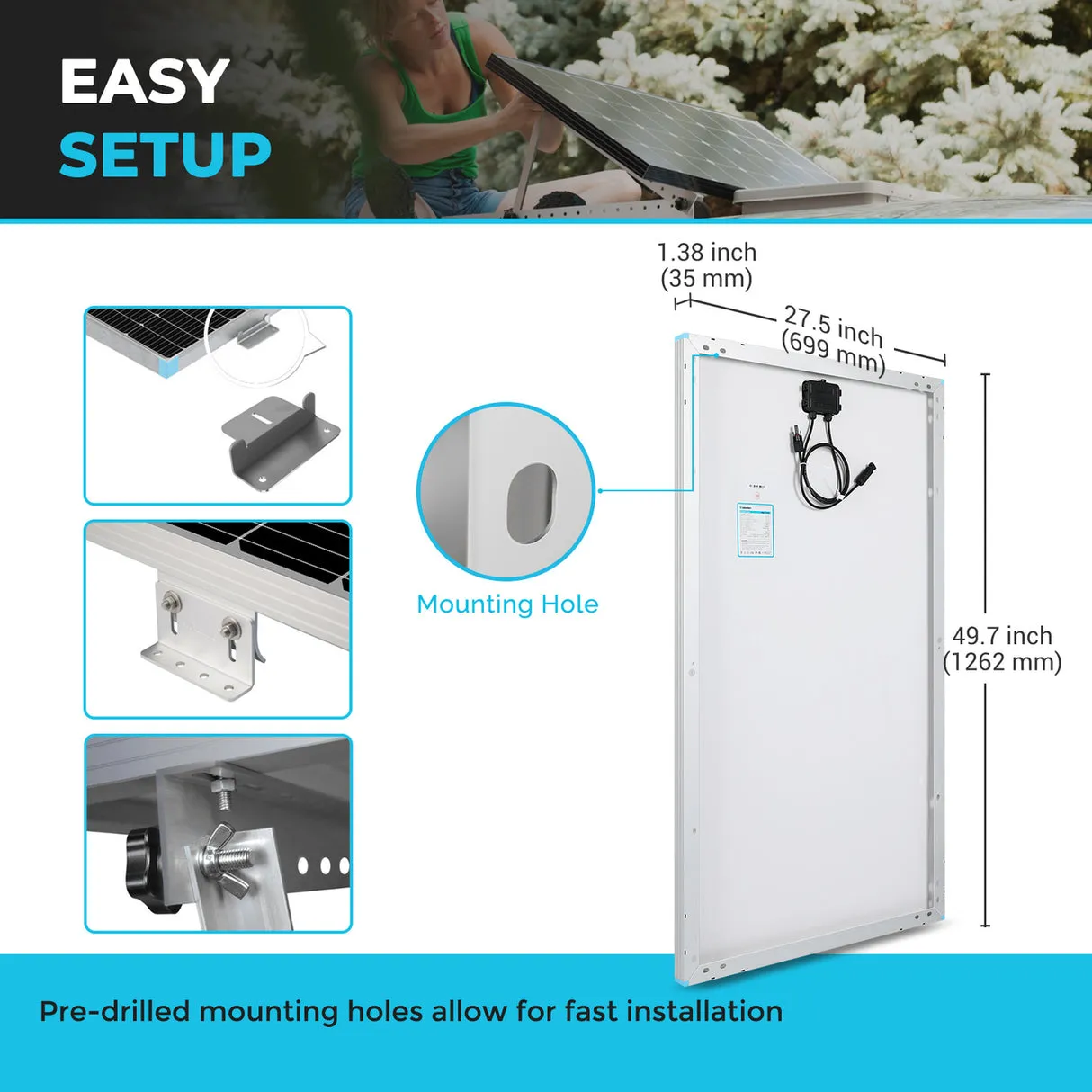

Pre-Drilled Holes for Easy Installation
The panel comes with pre-drilled holes on the back, allowing for quick and easy installation. It is compatible with various mounting systems, including Z-brackets, pole mounts, and tilt mounts.
Weather Resistant
The IP65-rated junction box ensures protection against environmental particles and water, making it suitable for outdoor installations.
Specifications:
- Max Power at STC: 175 W
- Open Circuit Voltage: 21.6 V
- Short Circuit Current: 10.31 A
- Opitmum Operating Voltage: 18.1 V
- Optimum Operating Current: 9.67 A
- Operating Temperature: -40°C to 80°C
- Maximum System Voltage: 600 VDC UL
- Maximum Series Fuse Rating: 20 A
- Cables: 12 AWG 2.3 ft long
- Dimensions: 49.7 x 27.5 x 1.38 in (1262 x 699 x 35 mm)
- Weight: 22lbs
- Solar Cells: 32 Monocrystalline Cells
- Junction Box: IP65
- Connectors: Solar Connectors
Module Efficiency: 19.80%
What's in the Box:
1 x 175 Watt Rigid Solar Panel
