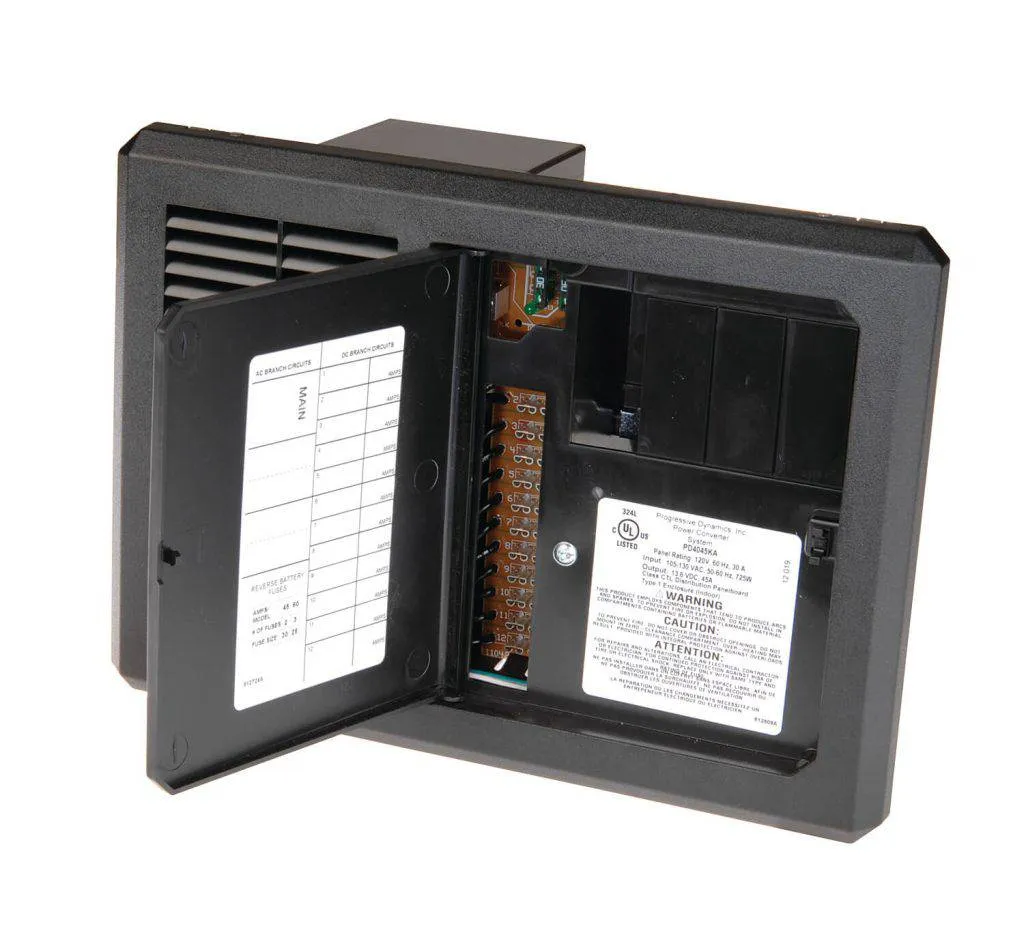

“Mighty Mini” The Compact All-In-One System…AC/DC Distribution Panel and Inteli-Power Converter with built-in Charge Wizard®
Industry’s smallest all-in-one 45 or 60 Amp distribution panel/converter system. Available with our exclusive built-in Inteli-Power Converter…”The most reliable converter in the RV industry”. The converter section is easily accessible from the front. The AC Distribution Panel is rated for 120 VAC @ 30 Amps with up to 7 branch circuits. The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections. Reverse battery blown fuse indicator.
Inteli-Power 4000 Mighty Mini models can recharge the battery to 90% in 3-6 hours using our patented Charge Wizard technology:
- BOOST Mode 14.4 Volts – Rapidly brings RV battery up to 90% of full charge.
- NORMAL Mode 13.6 Volts – Safely completes the charge.
- STORAGE Mode 13.2 Volts – Maintains charge with minimal gassing or water loss.
-
EQUALIZATION Mode 14.4 Volts – Every 21 hours for a period of 15 minutes prevents battery stratification
& sulfation – the leading cause of battery failure.
PD4000 Series Features
- Compact & lightweight.
- Reverse battery protection with easy to replace fuses.
- Electronic current limiting.
- High and low AC input protection.
- Intelligent, variable speed, cooling fan.
- Automatic thermal protection.
- Front access to large wiring compartment.
- Snap-lock cover stays shut while traveling – opens with a touch.
- Attractive lightweight panel design made from black impact-resistant high temperature polymers.
- Covered by one or more of the following U.S. Patents: 7,782,002 and RE39,461.
Inteli-Power AC Features
- AC Distribution Panel rated for 120 VAC @ 30 AMPS.
- Accepts up to 7 branch circuit breakers.
- AC Panel features built-in push and lock strain relief wiring connectors for quick installation.
- Saves over 50% on installation cost.
Inteli-Power DC Features
- Converter/Charger section is accessible from the front.
- The DC section has 12 branch fuse holders, two wired to accommodate 30 Amp fuses, ten more with a maximum rating up to 20 Amps each. All wire tail connections.
- Reverse Polarity LED, an industry first, indicates blown fuses, a leading cause of perceived converter failure.
- No more guessing. Replace the fuses and the converter is immediately operational.
- The 45 AMP Mighty Mini has twelve DC fuse positions.
- The Inteli-Power™ 4000 Series Mighty Mini is pre-wired for easy installation.
PD4000 Mighty Mini Inteli-Power Panel Specifications
| PD4045 | PD4060 | |
|---|---|---|
| Maximum DC Output Current | 45-AMPS | 60-AMPS |
| Maximum Continuous Input Power | 725 WATTS | 1000 WATTS |
| No Load DC Output Voltage | 13.6 VDC | 13.6 VDC |
| No Load Voltage Tolerance | /- .3 VDC | /- .3 VDC |
| Full Load Output Voltage | > 12.6 VDC | > 12.6 VDC |
| Ripple and Noise Voltage | < 50 MV RMS | < 50 MV RMS |
| Input Voltage Tolerance | 105 - 130 VAC | 105 - 130 VAC |
| Input Voltage Frequency | 50-60 HZ | 50-60 HZ |
| Peak Inrush Current | 32-AMPS | 47-AMPS |
| Input Current at Rated Power | ˜8.3-AMPS | ˜11.4-AMPS |
| Efficiency (Typical) | > 80% | > 80% |
| Reverse Battery Protection | YES | YES |
| Electronic Current Limiting | YES | YES |
| Cooling Fan | Auto-variable speed | Auto-variable speed |
| Back Up Thermal Protection | YES | YES |
| Charge Wizard | YES | YES |
| Storage Temperature | -20-80C | -20-80C |
| Operating Temperature | 0-50C | 0-50C |
| Hipot Voltage Test | <-------- 1240 V @ INPUT TERMINALS --------> | |
| Over Voltage Protection | YES | YES |
| Under Voltage Protection | YES | YES |
| Weight | 5.7 LBS. | 6.7 LBS. |
| Cutout Size | 10.75W x 7.25H | 10.75W x 7.25H |
| Dimensions | 12.28W x 8.875H x 7.25D | 12.28W x 8.875H x 7.25D |
| YES | YES | |
| AC Distribution Specs: | ||
| Rating | 120 VAC/30 AMPS | 120 VAC/30 AMPS |
| Breakers | Max. 30 AMP Main... Up to 7 Branch Circuits | |
| DC Distribution Specs: | ||
| DC Fuse Positions | 2 @ 30 AMP max. each 10 @ 20 AMP max. each |
2 @ 30 AMP max. each 10 @ 20 AMP max. each |
| Reverse Polarity LED | YES | YES |
