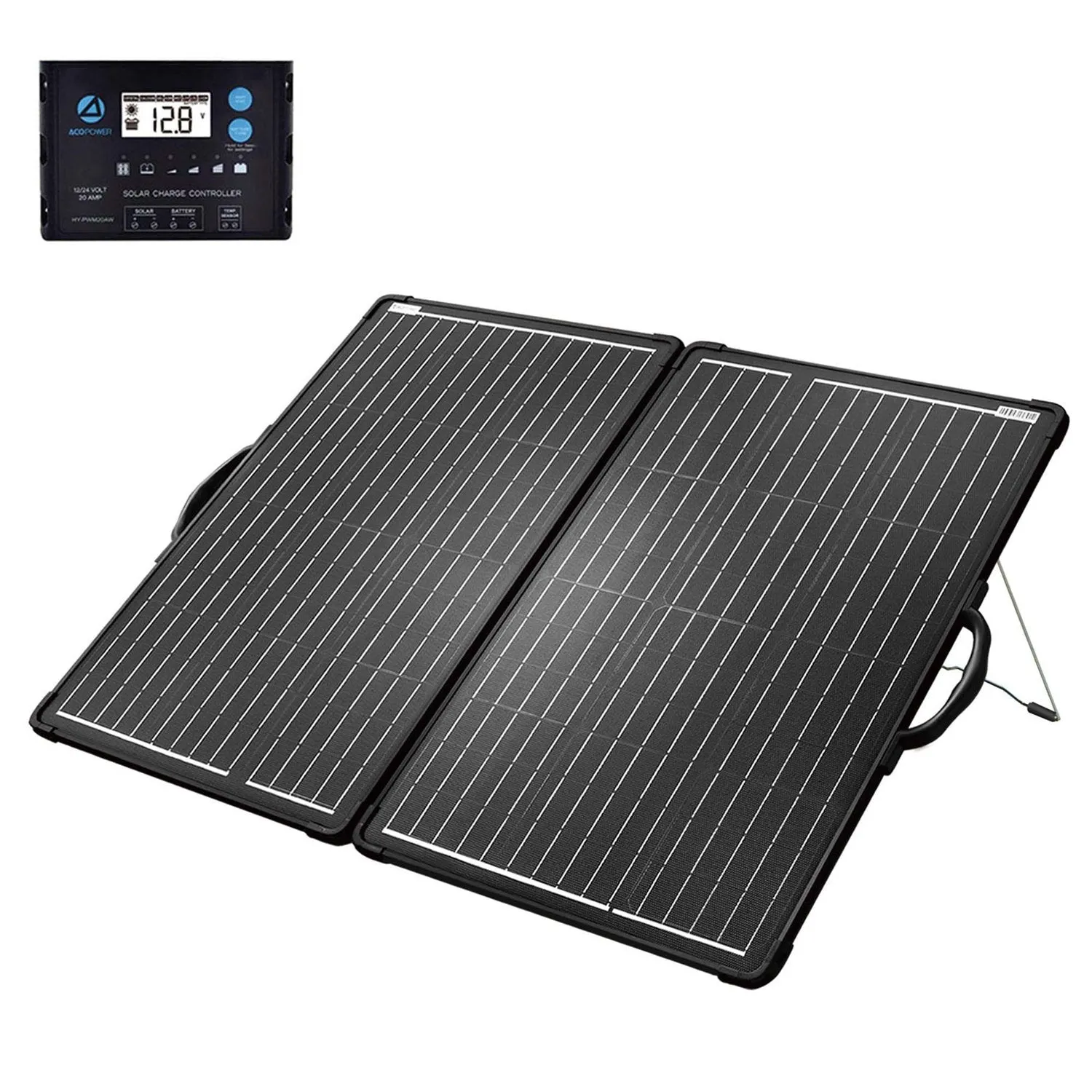

ACOPOWER All Black 120W Mono Foldable Solar Panel with Charge Controller is the key component to a system when going solar Off -Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications.
ACOPOWER provides cost-effective solar panels and Free Professional Engineering Services.
Main Features:
Well-built structure folding and portable.
High efficiency conversion rate solar cells
20A charge controller

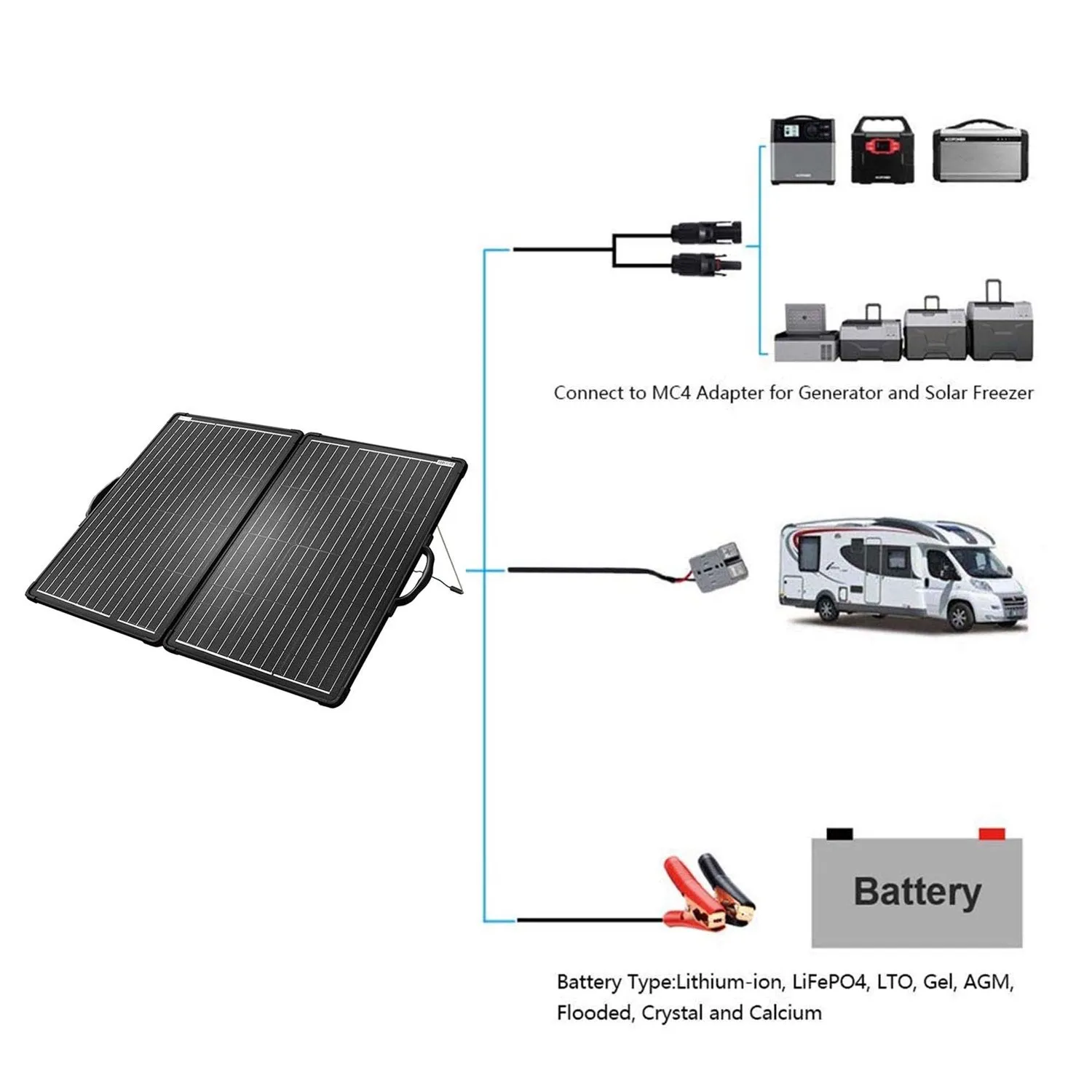

Compatible with: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium. with built-in charge controller by clamps (red) to (positive) and (black) to (negative)
Could charge generator: connecting MC4 connectors to generator’s adapter

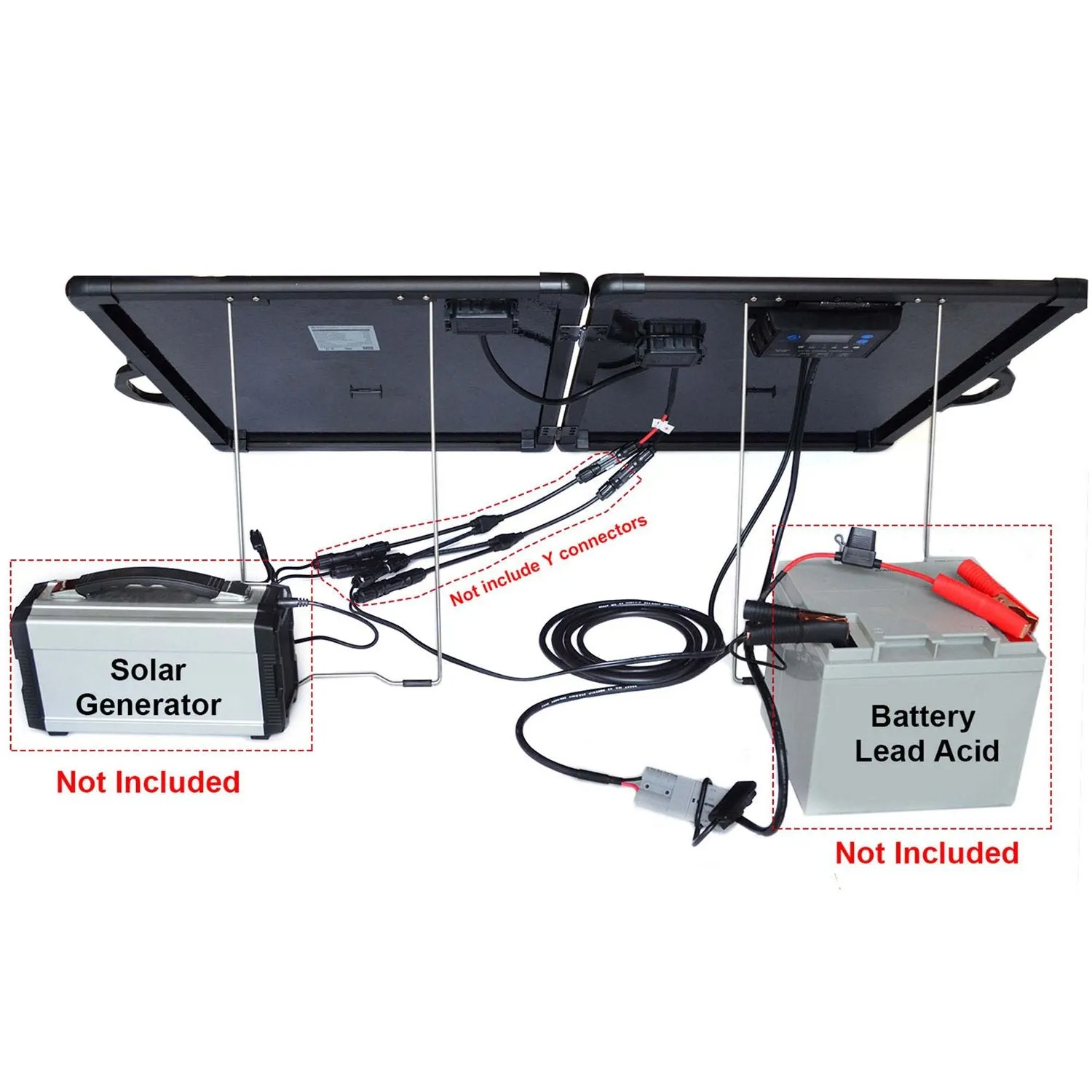

Could charge both generator and battery at the same time

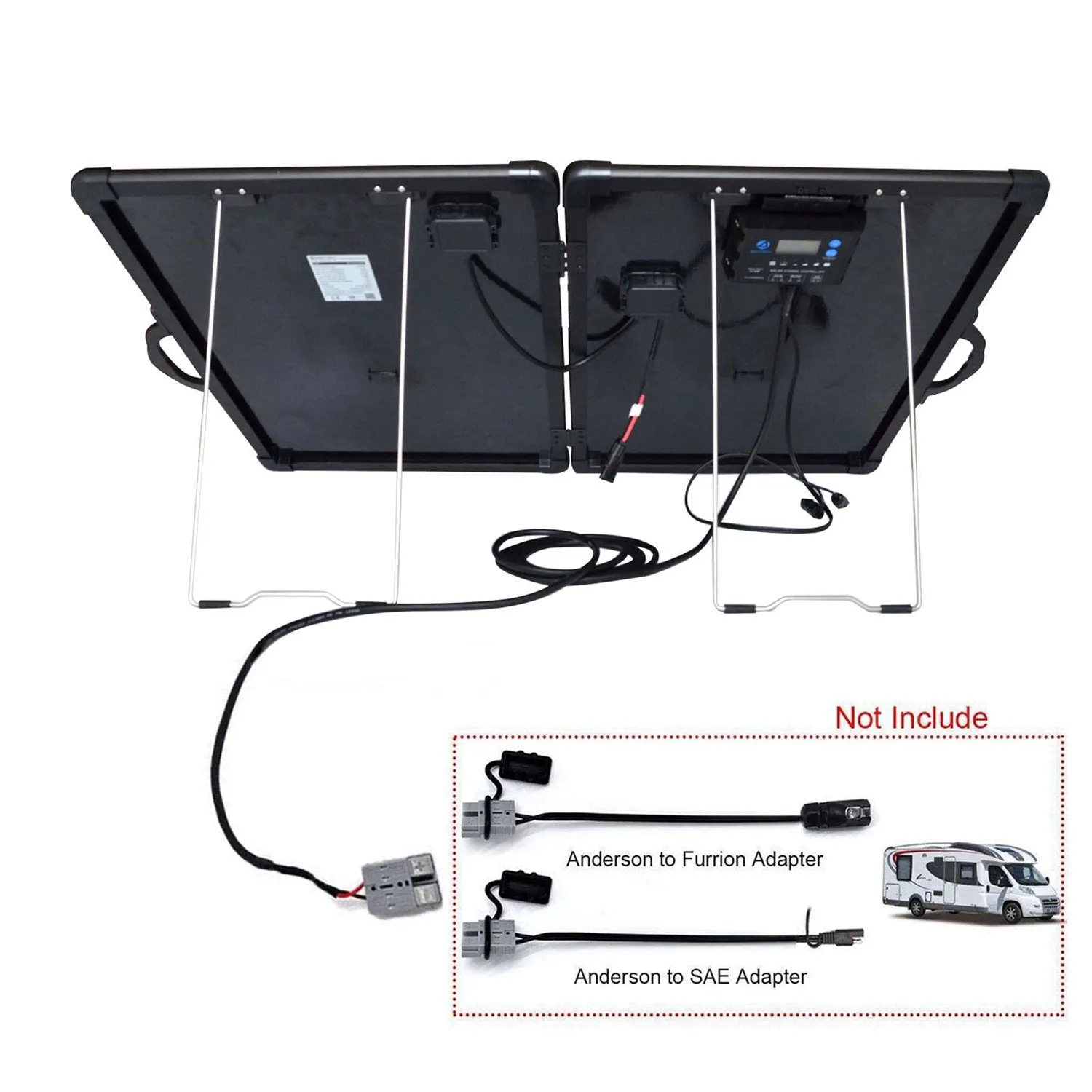

Pre-wired and installed, battery or generator ready kit
Allow build a parallel solar panel system by MC4 connectors with additional pv panel (Max 120W)
Mounting pre-installed, set up in 1 min without tools

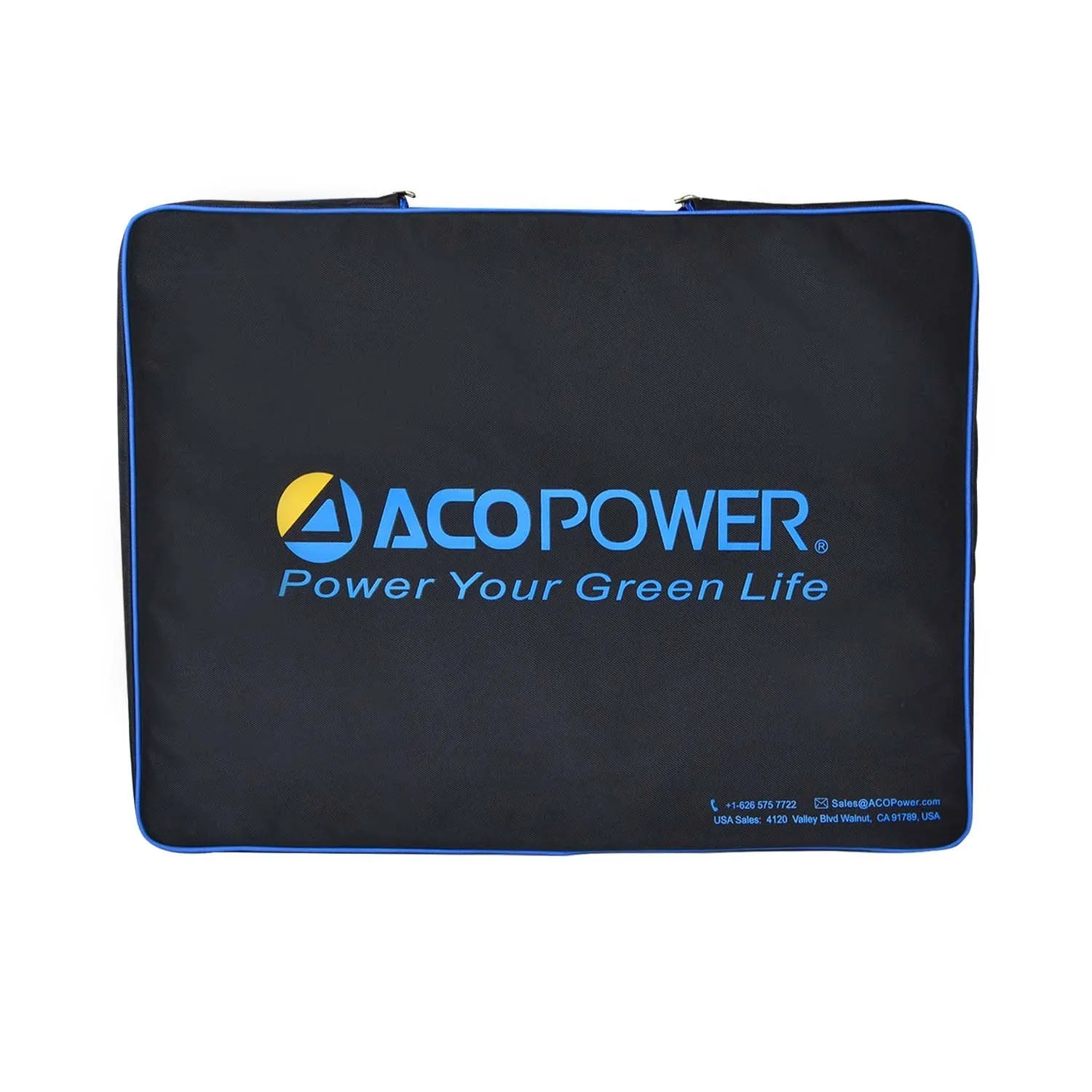

Portable and suitcase design
Electronic protection from overheating, over charging, over discharging
Specification
Peak Power (Pmax):2*60Wp
Peak Circuit Voltage(Voc):23.4V
Max Power Voltage(Vmp):19.8V
Short Circuit Current(Isc):2*3.21A
Max Power Current(Imp):2*3.03A
Power Tolerance Range:0~ 3%

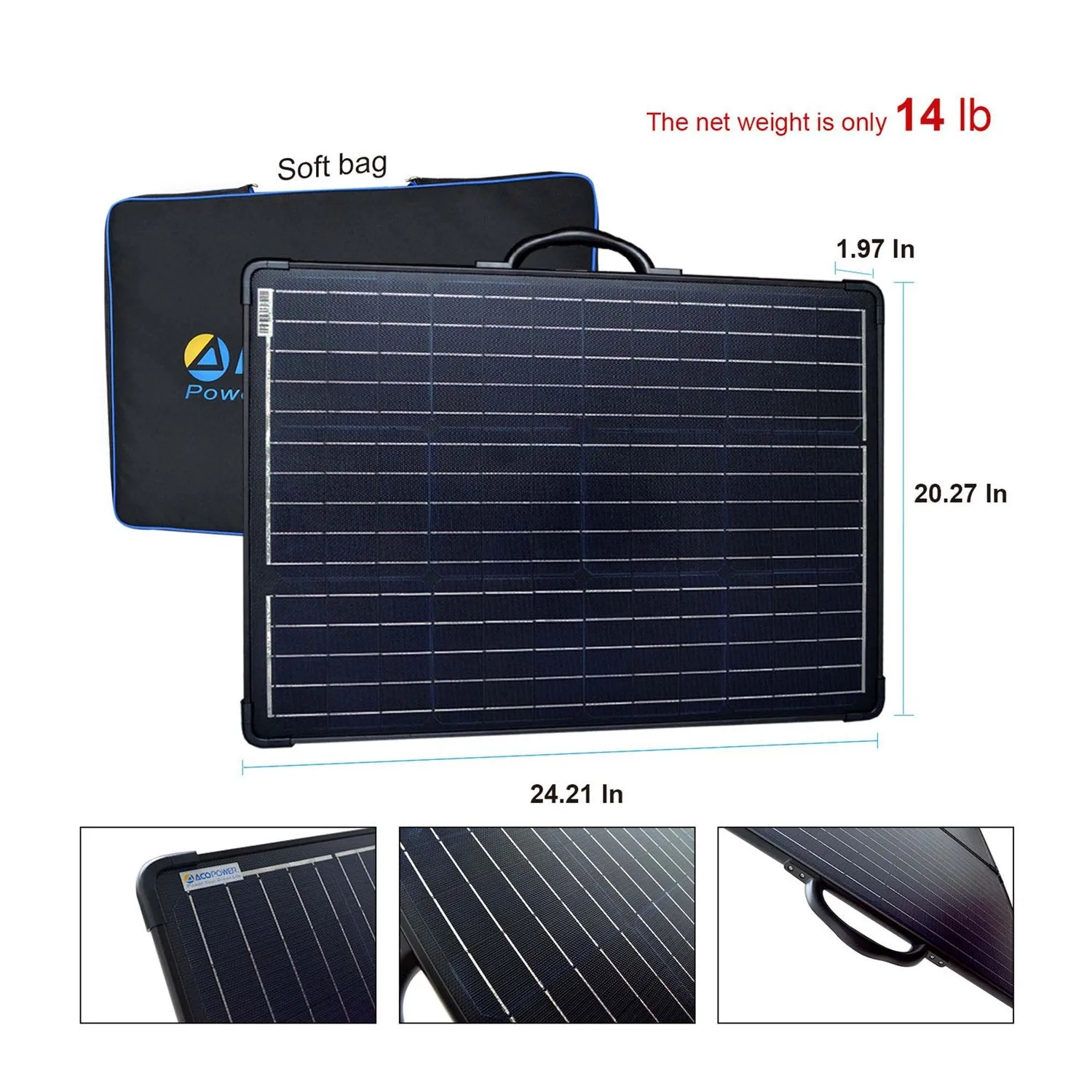

Dimension: Folded size: 24.21 x 20.27 x 1.97 inches
Weight:14lb
Working Current: 20A
Working Mode: PWM Charging
Grounding: Common Negative
