Product Details
＋

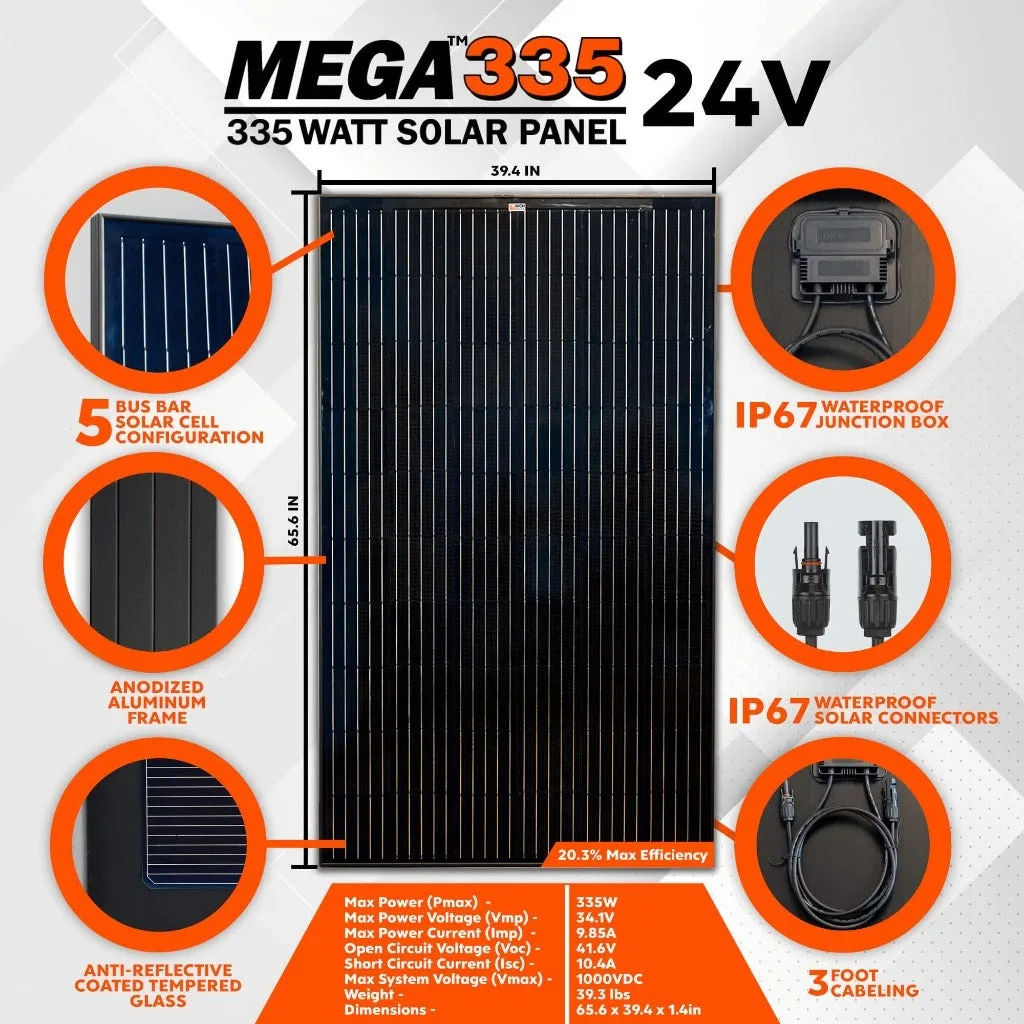

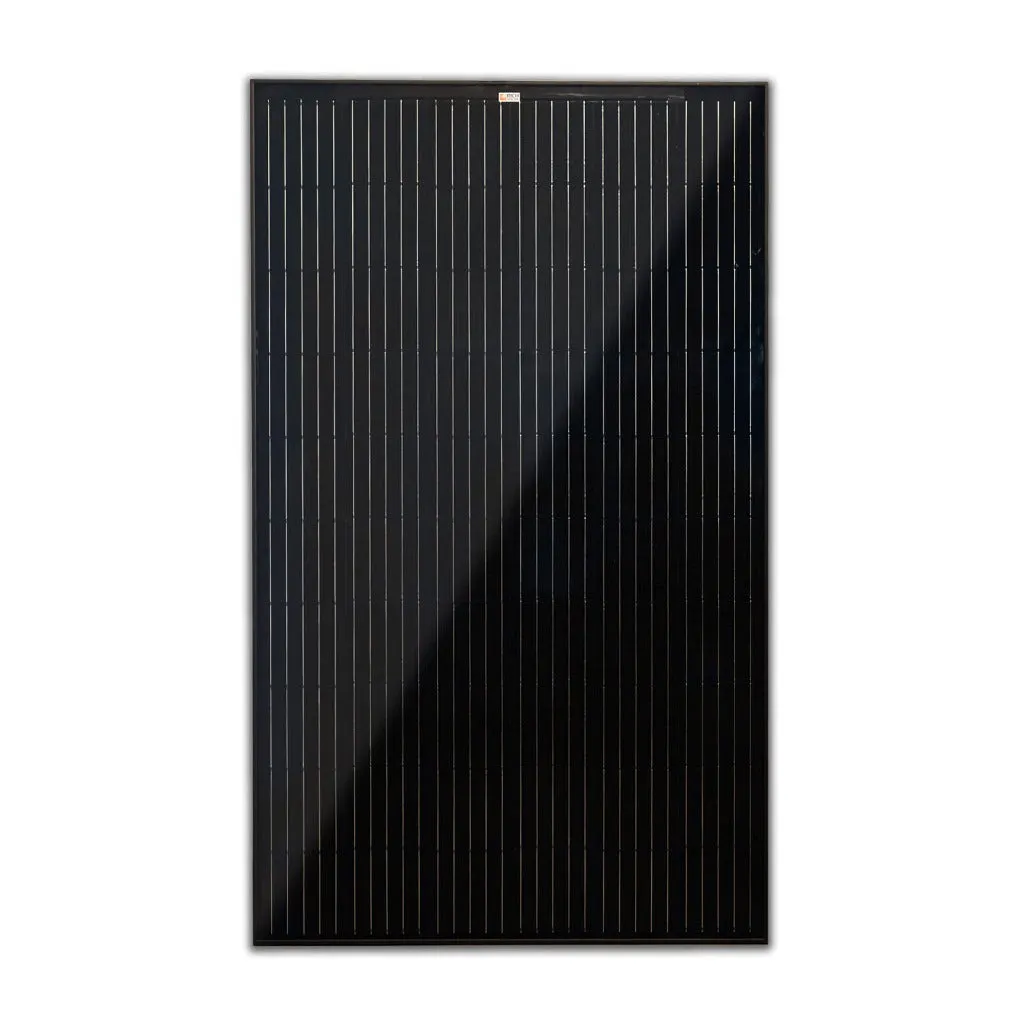

MEGA 335 Watt Monocrystalline Solar Panel | High Efficiency | Best Panel for Grid-Tie and Off-Grid
Been looking for an off-grid solar trailer system for you? This MEGA 335 Watt Solar Panel is one of the most best flexible solar panels for RV and trailers. Get this to start your solar adventure today!
✅ Standard
65.6' x 39.4' x 1.4' 5 buss bar solar cell configuration and mono PERC Technology
✅ High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.
✅ Rugged Durability
Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame. Certified to withstand the most challenging environmental conditions.
✅ Simple Installation
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
✅ Warranty
25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship.
65.6' x 39.4' x 1.4' 5 buss bar solar cell configuration and mono PERC Technology
✅ High Performance
Excellent low-light performance even on early mornings, evenings, and cloudy days.
✅ Rugged Durability
Built with strong high transmission “Anti-reflective” coated tempered glass, and an anodized aluminum frame. Certified to withstand the most challenging environmental conditions.
✅ Simple Installation
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts and tilt mounts
✅ Warranty
25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship.
Dimensions
Specs

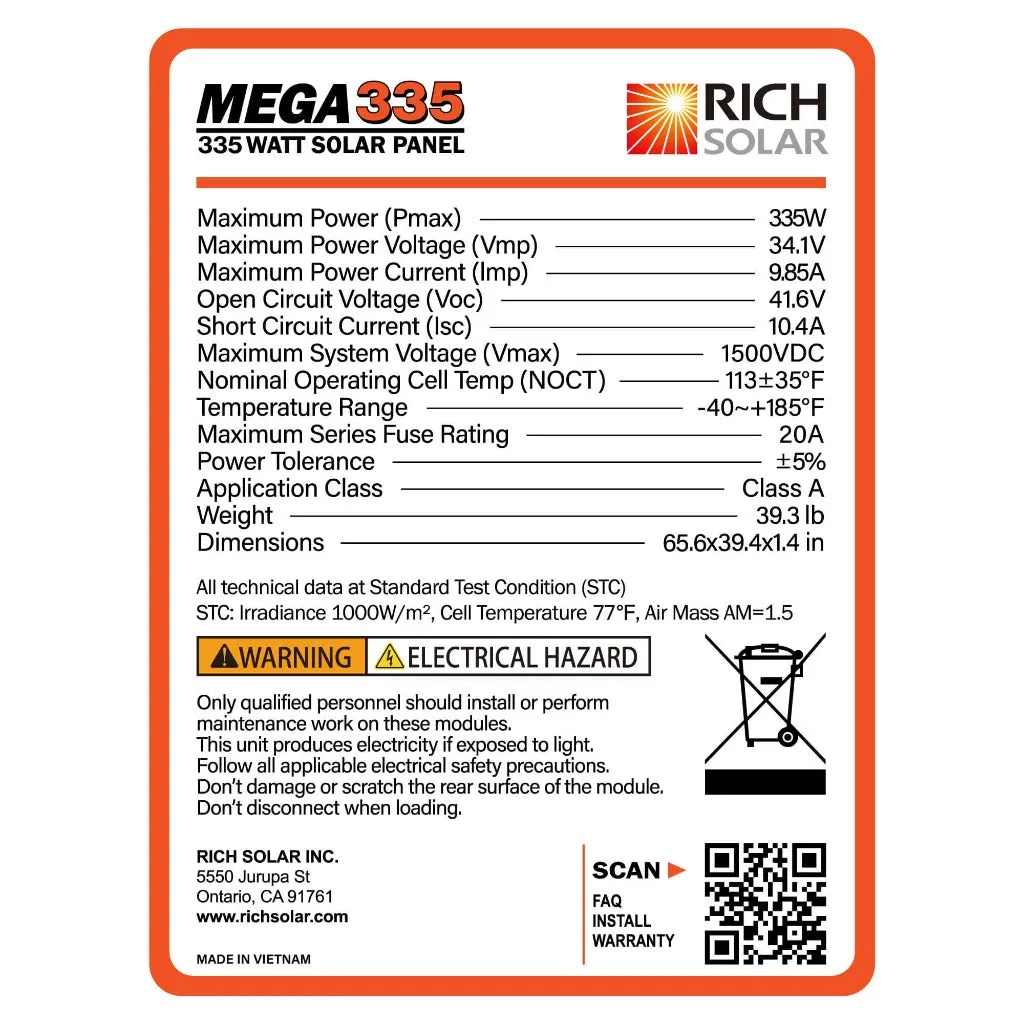

SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Maximum Power(Pmax) | 335W |
| Maximum Power Voltage(Vmp | 34.1V |
| Maximum Power Current(Imp) | 9.85A |
| Open Circuit Voltage(Voc) | 41.6V |
| Short Circuit Current(Isc) | 10.4A |
| Maximum System Voltage(Vmax) | 1000VDC |
| Temperature Range | -40°F ~ 194°F |
| Max Series Fuse Rating | 20A |
| Weight | 39.3 lb |
| Dimensions | 65.6 x 39.4 x 1.4 in |
BUILT-IN COMPONENTS
|
Manual
MEGA 335 WATT 24 VOLT SOLAR PANEL
