Display Characteristics

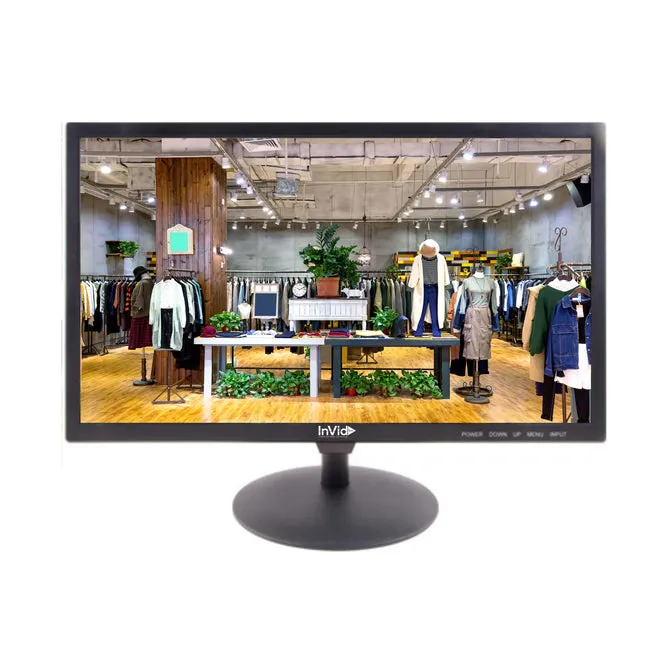

IMHD-24HVB

Screen Size

24'’

Active Display Area (mm)

521.28mm(W)×293.22mm(H)

Display Mode

16:10

LED Type

TFT-LED

Resolution

1920 × 1080

Display Color

16.7M

Pixel Pitch(mm)

0.2715(H)×0.2715(V)

Brightness(nits)

300cd/m2

Contrast Ratio

1000:1

Viewing Angle

178(H) /178(V)

Response Time

5ms

Backlight

LED

Input & Output

HDMI 2.0

1

VGA

1

BNC input

2

BNC output

1

Speaker

2x3W(Stereo)

Video

Color System

PAL/NTSC/SECAM

OSD Control

Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language

3D comb filter

YES

Video Noise Reduction

YES

Power & Mount Way

Power

DC12V ,50/60Hz

Working Temperature

-22°F to 185°F (-30°C ~85°C)

Power Consumption

25W

Menu

Chinese/English(other languages supported)

Mounting/Weight

Stand mount, VESA mount/4kg 100x100

MTBF

50000Hours

Dimension size

21.9 x 13.5 x 1.9 in (555*343*49mm)

Accessories

Included Accessories

Industrial PSU,Screw, Cable holder, Quick start guide
