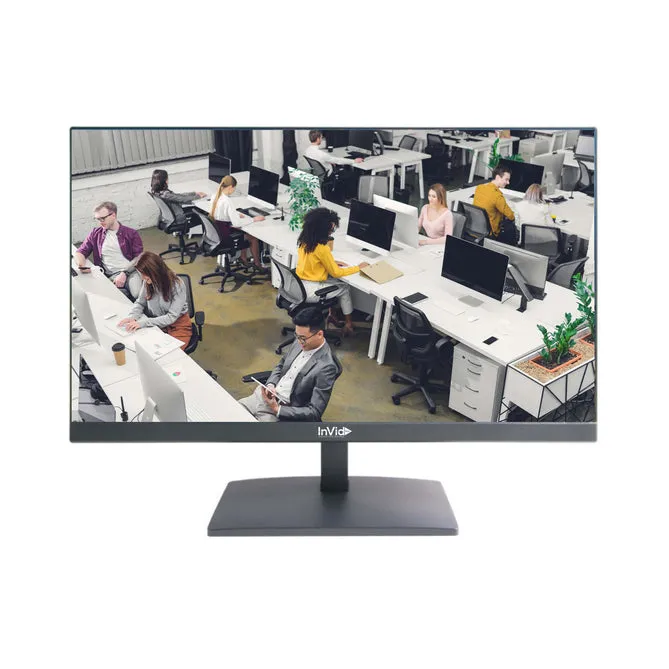

22” 1920 x 1080 LED Monitor HDMI 2.0, VGA, Built-in speaker
Features
- Suitable for All Video Surveillance and Security applications Commercial Grade - Designed for 24/7 Operation
- 1920 x1080 Resolution
- LCD Panel
- Inputs: HDMI 2.0, VGA
- Built-in Speaker
- 16.7 Million Color Capacity
-
VESA Mount 100x100
|
Display Characteristics |
|
|
Screen Size |
22'’ |
|
Active Display Area (W x H) |
18.8 x 10.6 in (476.64 × 268.11mm) |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 ×1080 |
|
Display Color |
16.7M |
|
Pixel Pitch ( H x V) |
0.248 × 0.248 mm |
|
Brightness(nits) |
250cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle (H/V) |
170/170 |
|
Response Time |
5ms |
|
Backlight |
LED |
|
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
Speaker |
2x3W(Stereo) |
|
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language |
|
3D comb filter |
Yes |
|
Video Noise Reduction |
Yes |
|
Power & Mount Way |
|
|
Power |
DC12V,50/60Hz 3 AMP |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
≤25W |
|
Menu |
Chinese/English(other languages supported) |
|
Mounting/Weight |
Stand mount, VESA mount/3.5kg 100x100 |
|
MTBF |
50000Hours |
|
Certificate Approval |
CE,RoHS,CCC,FCC,ISO9000, UL |
|
Application |
Monitoring , Transportation, Controlling room, ETC |
|
Dimension size |
19.3 x 11.7 x 1.6 in (490*297*41mm) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
