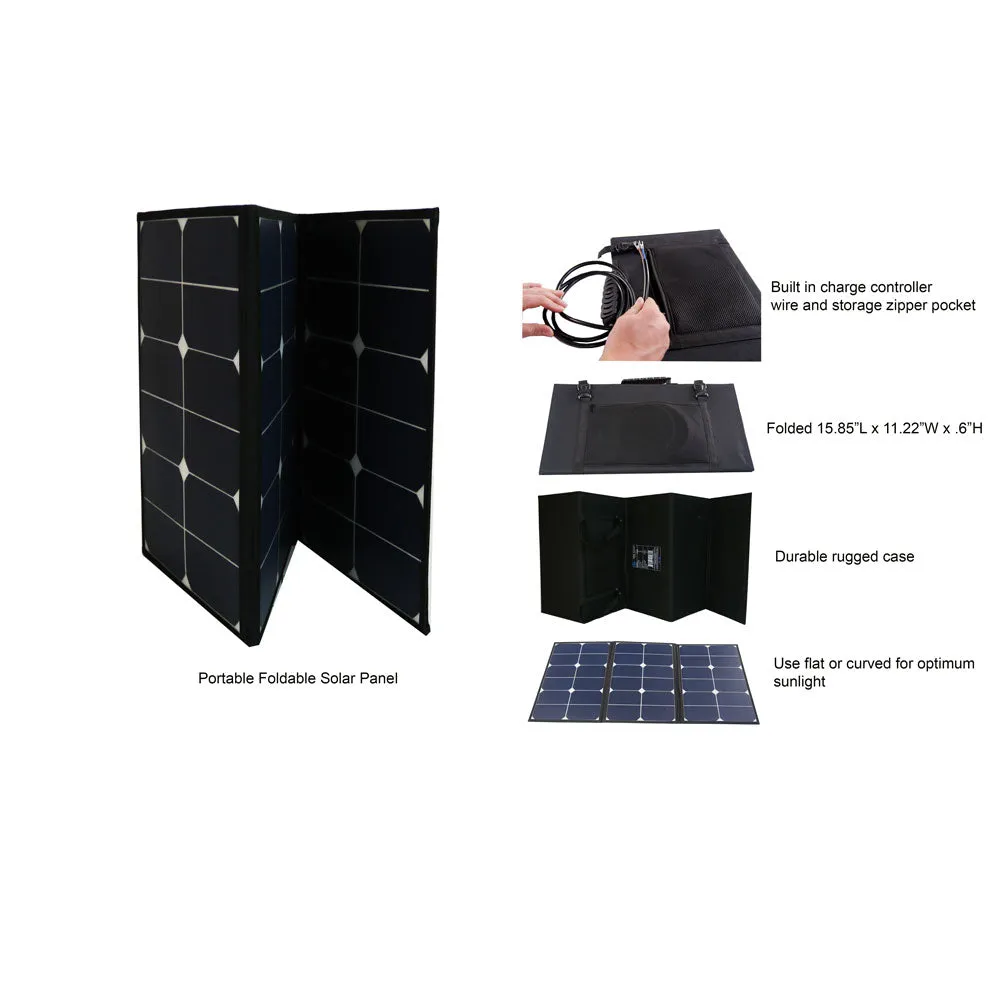

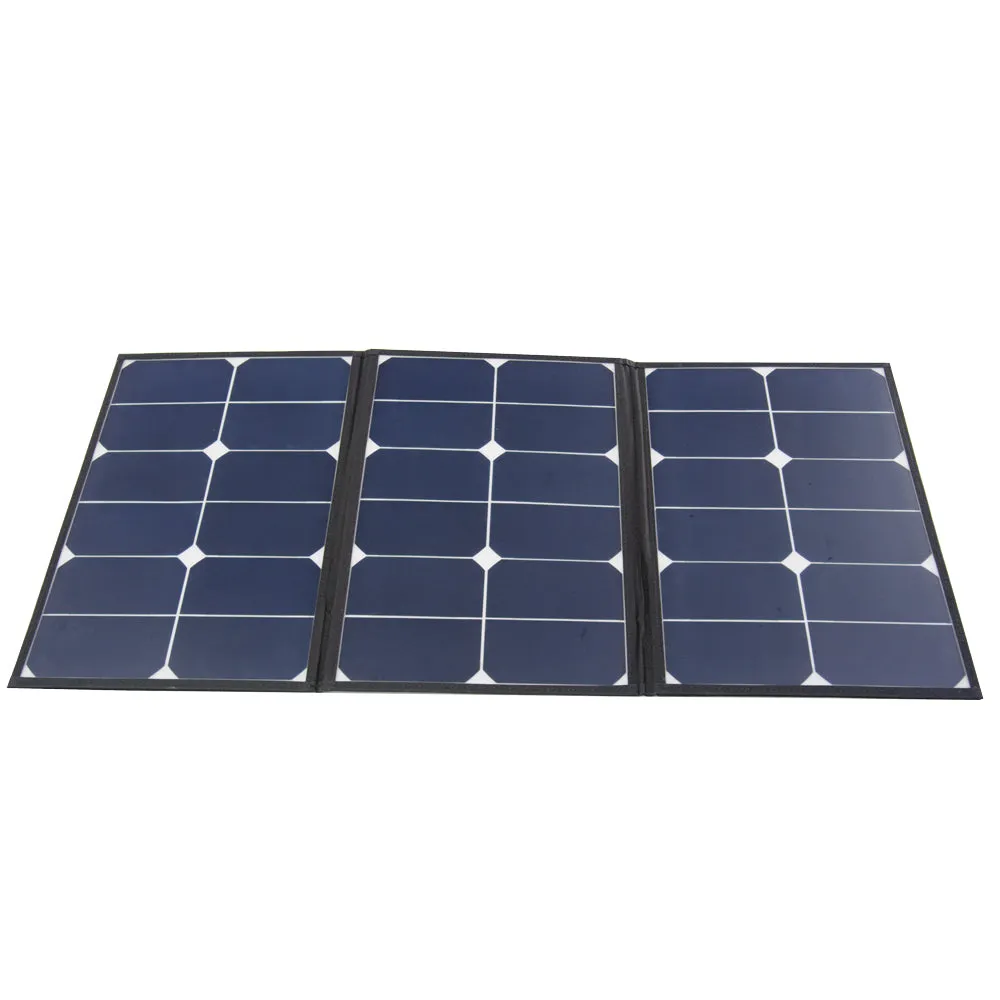

This 60 watt foldable and portable solar panel, made with high quality monocrystalline solar cells, quickly folds and unfolds into a compact water-resistant carrying case for easy set-up and storage.

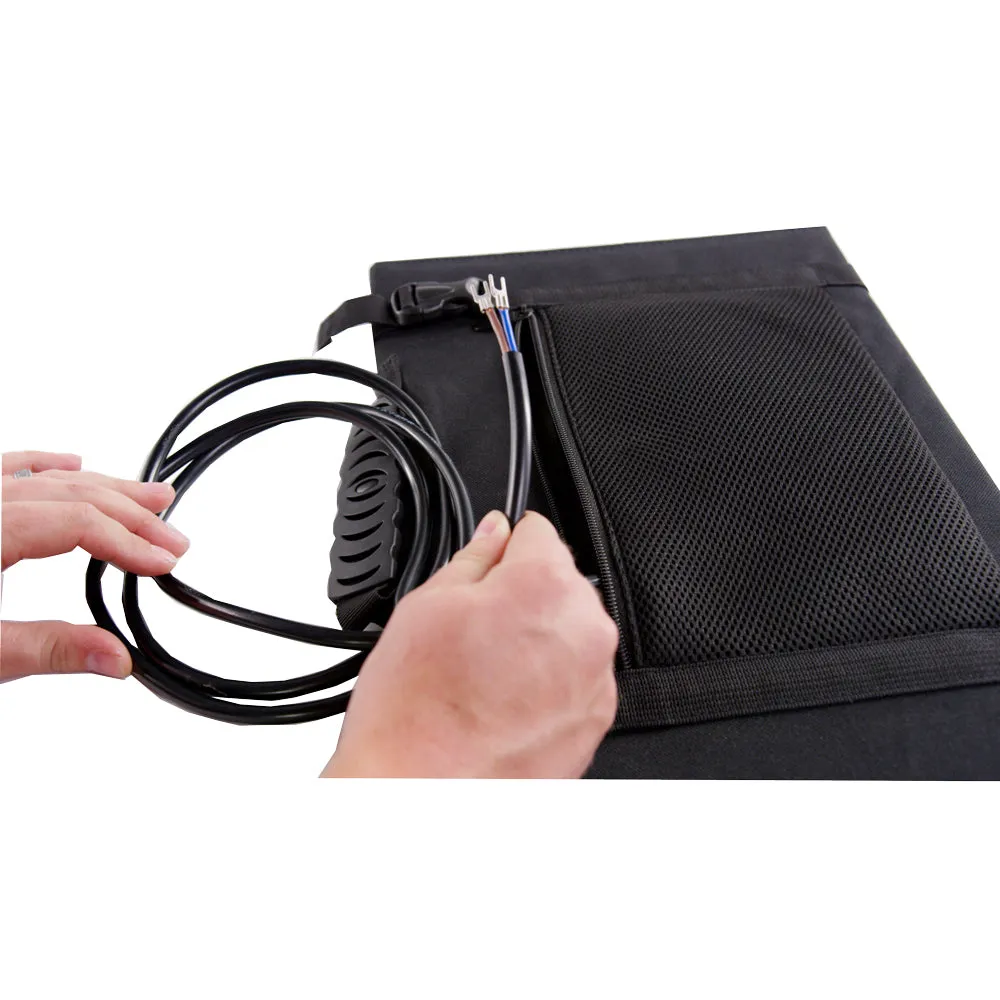

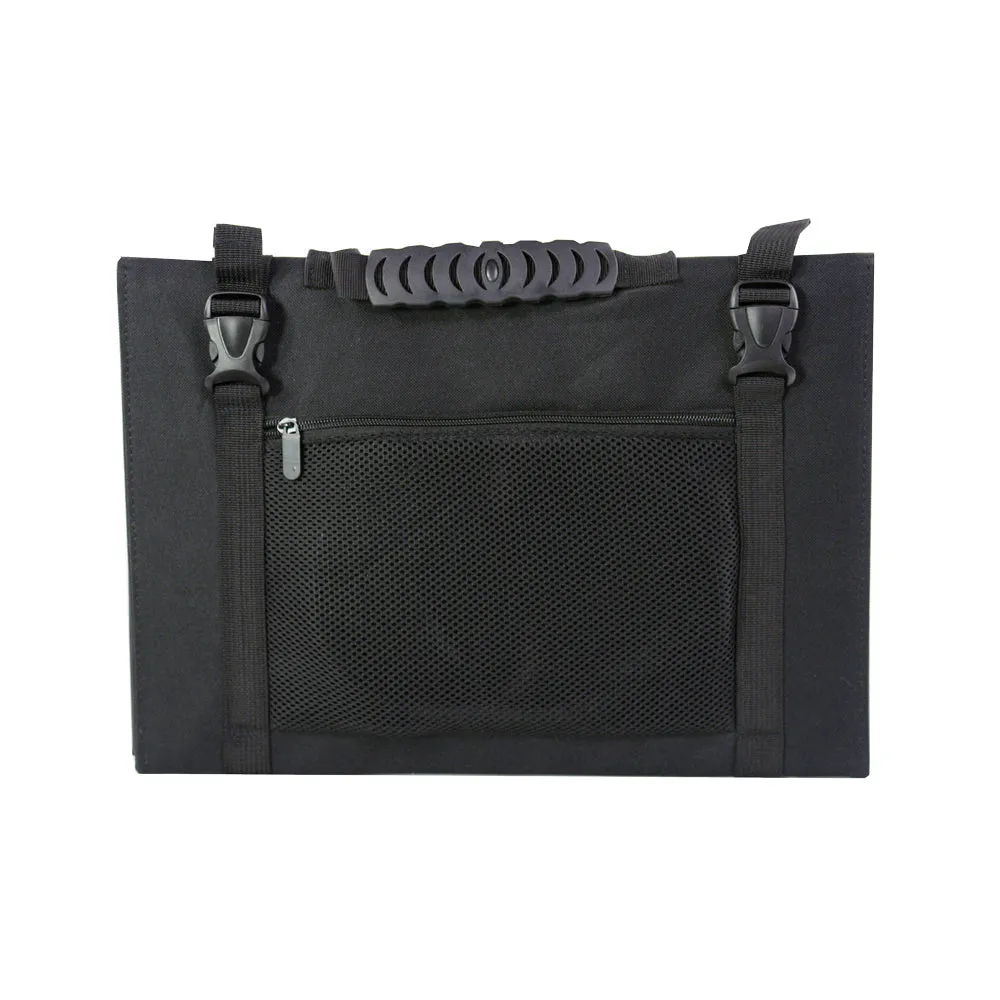

On the front of the carrying case there is a zipper pocket to store a small charge controller. The foldable panel also includes a built-in 6-foot charge controller wire allowing for quick connection to various size charge controllers.

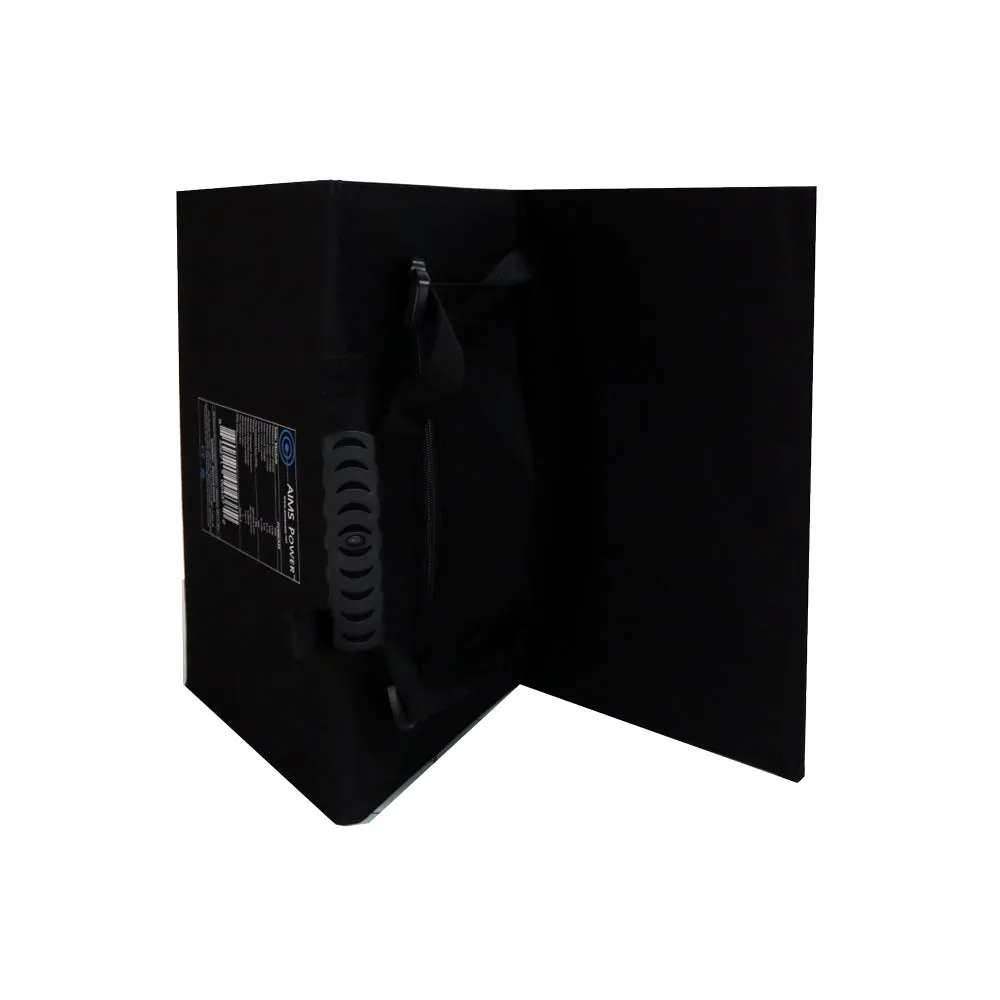

The carrying case includes a comfortable rubber handle and secures using side release plastic buckles.

Backed by a 10 year warranty and weighing in at under 3 pounds, this portable solar panel is a must for every remote application needing power.

AIMS Power Foldable & Portable 60W Solar Panel Features

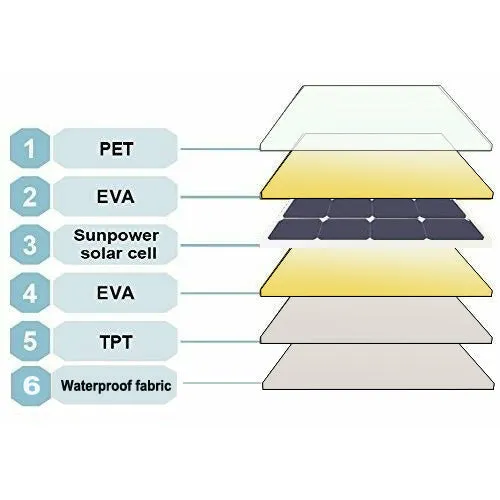

• Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
• Built in solar charge controller cable 6ft
• Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
• Portable and easily adjusts to the optimum sunlight angle
• Accordion style fold up case
• Weather resistant. Appropriate for outdoor use.
• Durable and rugged case with convenient side zipper pocket to store wires and charge controller
• Lightweight and super thin allowing for easy storage and set up
• Bypass diode minimizes the power drop when shaded
• Reverse current protection
• Modules are independently tested to ensure conformance with certification and regulatory standards
• Manufacturing facility certified to ISO 9001 quality management system standards
• Panels capable of /- 3% power efficiency than rated

Warranty

• 5 year warranty; 10 year 80% output

AIMS Power Foldable & Portable 60W Solar Panel Specifications

• High performance: light transmittance up to 93%
• Cell Efficiency: 22.3% (one of the highest)
• Module Efficiency: 19.2% (one of the highest)
• Maximum Power: 60W
• Tolerance Wattage (e.g. /- 5%): /- 3W
• Maximum System Voltage: 600V DC (UL)
• Max Power Voltage (Vmp): 19.8 V
• Max Power Current (Imp): 3 A
• Open-Circuit Voltage (Voc): 23.7 V
• Short-Circuit Current (Isc): 3.6 A
• Maximum Fuse Rating: 10 A
• Fire Safety Class: Class A
• Temperature Range: -40⁰F to 185⁰F
• Number of cells: 2 x 6 x 3
• Charge controller PV Wire: 10 AWG with spade connector easily fits into various charge controllers
• Dimensions: Expanded 33 X 15.8 X 0.20 inches Folded 11.22 x 15.85 x .6 inches
• Weight: 2.85 lbs
• Certifications: CE, ETL, TUV and RoHS
• Case:
• Water resistant
• Durable rubber handle
• Easy side slide buckles
• Convenient size zipper pocket for wires and charge controller storage
• Warranty: 5 year manufacturer, 10 years 80% output

Temperature Coefficients ⁰C

• ISC(%): 2.6
• Voc(%): -50.6
• Prm(%): -.38
• Im(%): 2.2
• Vm(%): -60.8
