Introducing the AIMS Power 1250-Watt 12VDC to 120VAC Power Inverter, now available on Appliance Guys. This compact and economical inverter converts DC power into AC electricity, capable of running most household appliances or tools. Ideal for off-grid back-up power at home, cabin, boat, or smaller solar systems. It can run off most vehicles’ and/or RVs’/boats’ standard power systems at 12 volts, making it attractive for mobile businesses. The unit features two AC outlets with a maximum output of 1250 watts and includes over-temperature and over-load protections. It’s a quiet, non-polluting solution for your power needs.
Appliance Guys Exclusive Benefits:
- Lifetime Phone Support: Expert assistance always within reach.
- Open 7 Days a Week: Convenience tailored to your schedule.
- Price Match Guarantee: Shop confidently, knowing you're getting the best deals.
Features
Features
- Max Continuous Power: 1250W
- Wave Type: Modified sine wave

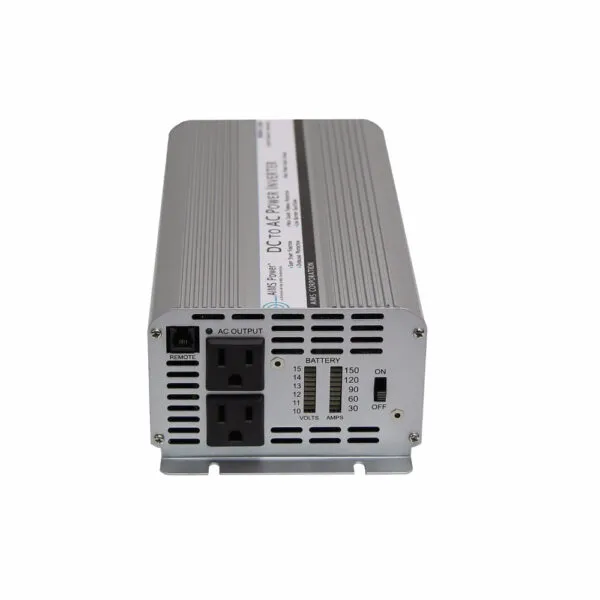

- Volt Meter: On front panel to monitor your battery voltage
- Watt Meter: On front panel to monitor your output
- LED Indicator: Isolated ground neutral LED (green/red) that monitors ready or fault
- AC Receptacle: Dual AC receptacle with protective rubber covers
- Switch: On/off switch
- Over Temperature Protection: Yes
- Over Load Protection: Yes

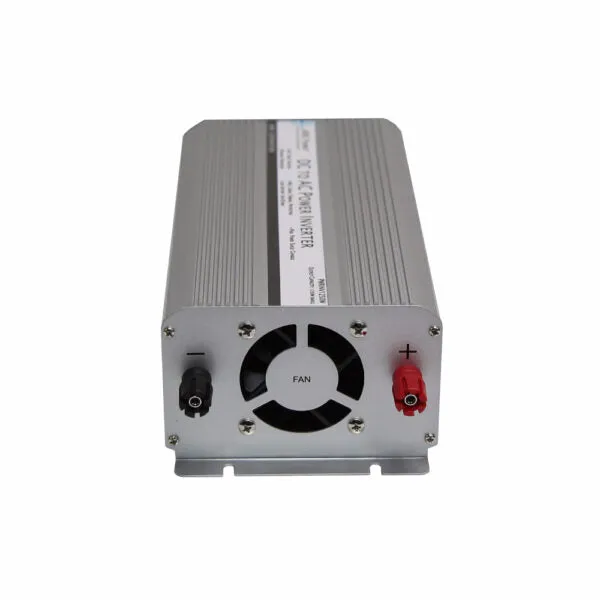

- Cooling: Dual cooling fan operation thermally controlled
- Fuse Protection: Internally fuse protected
- Short Circuit Protection: AC output short circuit protection
- Auto Reset: On most fault conditions
- Case: Aluminum for optimal cooling
- Remote On/Off Switch: Pre-wired for remote on/off switch - RJ11 port
- Mounting Plate: Pre-slotted
- Instruction Manual: Included
- Tech Support: Free 1 year
- Warranty: 1 Year Parts and Labor
Specifications
Specifications
- Continuous Output Power: 1250 Watt
- Surge Power Capability (peak power): 3100 Watts
- DC Input / Operating Voltage: 10 to 15 Volts
- Output Voltage: 120 Volts AC
- Output Wave Form: Modified sine wave
- Output Frequency: 60 Hz
- Efficiency: Full load - 90%, 1/3 load - 95%
Battery & Consumption:
- Battery Low Voltage Alarm: 10.5 /- 0.5 Volts
- Battery Low Voltage Shutdown: 10.0 /- 0.5 Volts
- No Load Current: <.5 Amps
Temperature & Protection:
- No Load Minimum Operating Temperature: 30F
- Full Load Maximum Operating Temperature: 150F (automatic shutdown)
- High Input Voltage Protection: 15V to 17V
- Low Input Voltage Shutdown: 10V
- Internal Fuse Protection: Use 150 inline fuse
- AC Output Socket Type: Dual Type 2 -3 prong
Dimensions
Dimensions
- Weight: 3.4 lbs.
- Length: 11 inches
- Width: 5.125 inches
- Height: 3.25 inches
Shipping Dimensions:
- Weight: 5 lbs.
- Length: 13 inches
- Width: 13 inches
- Height: 4.5 inches
