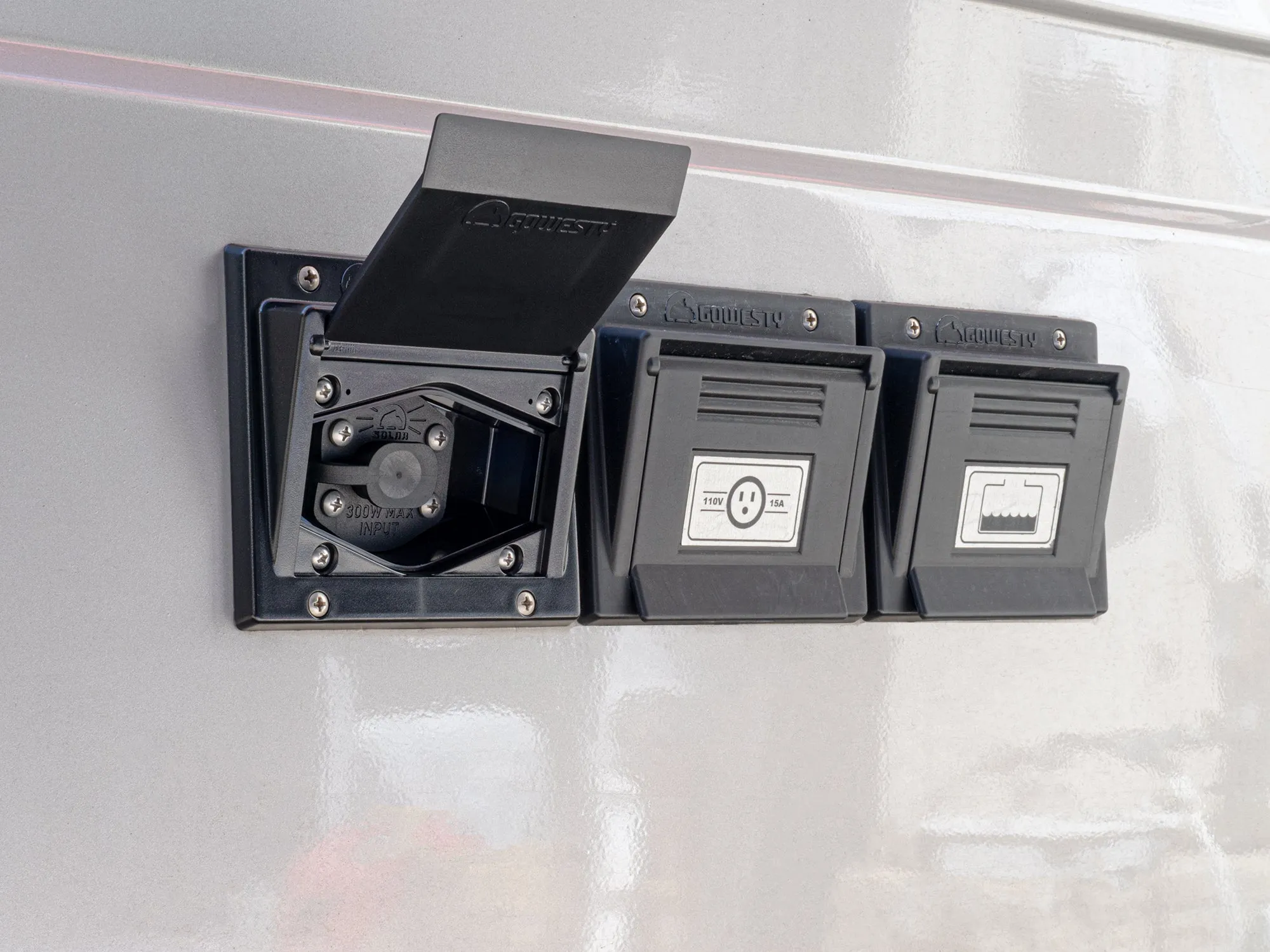

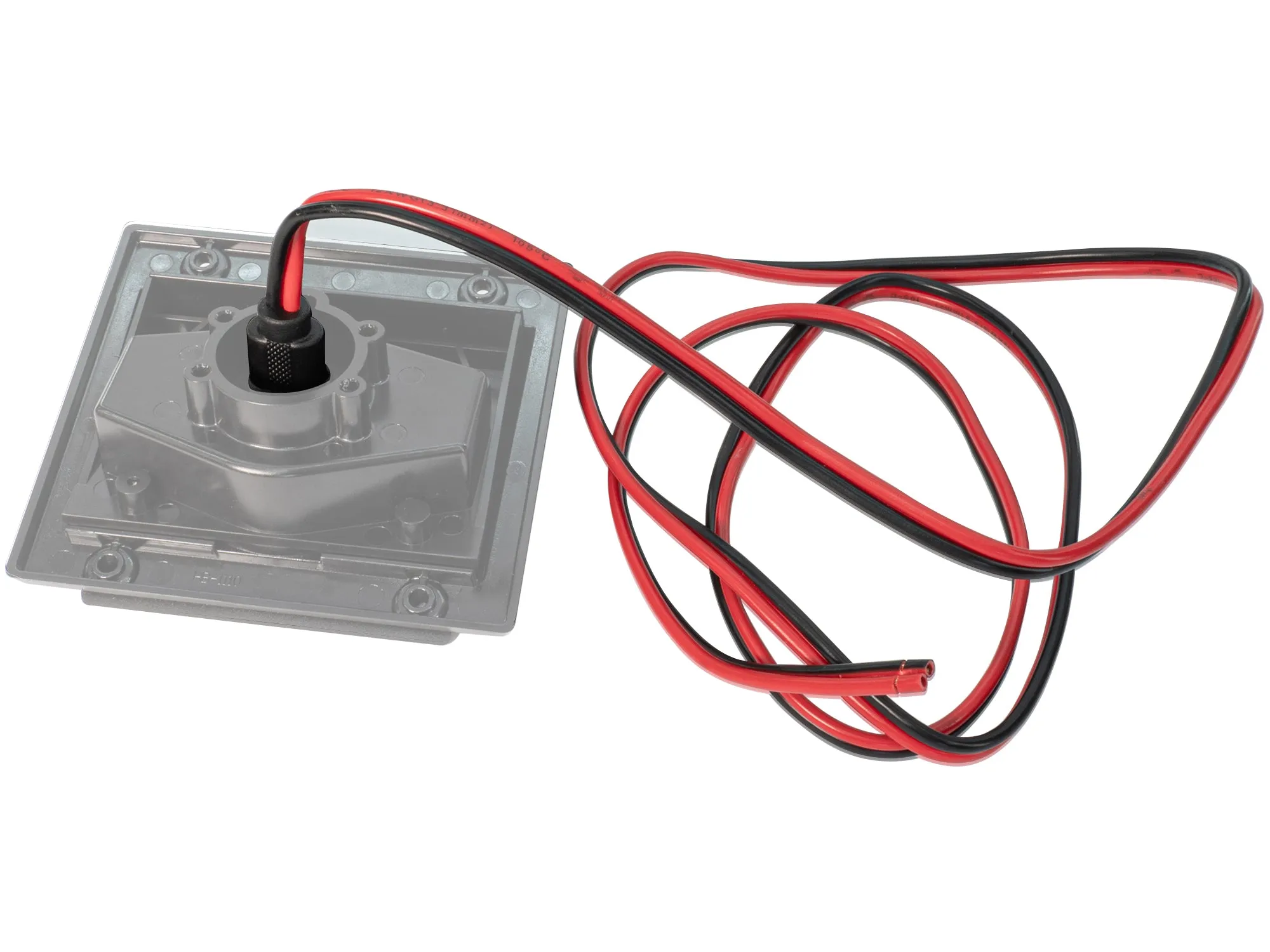

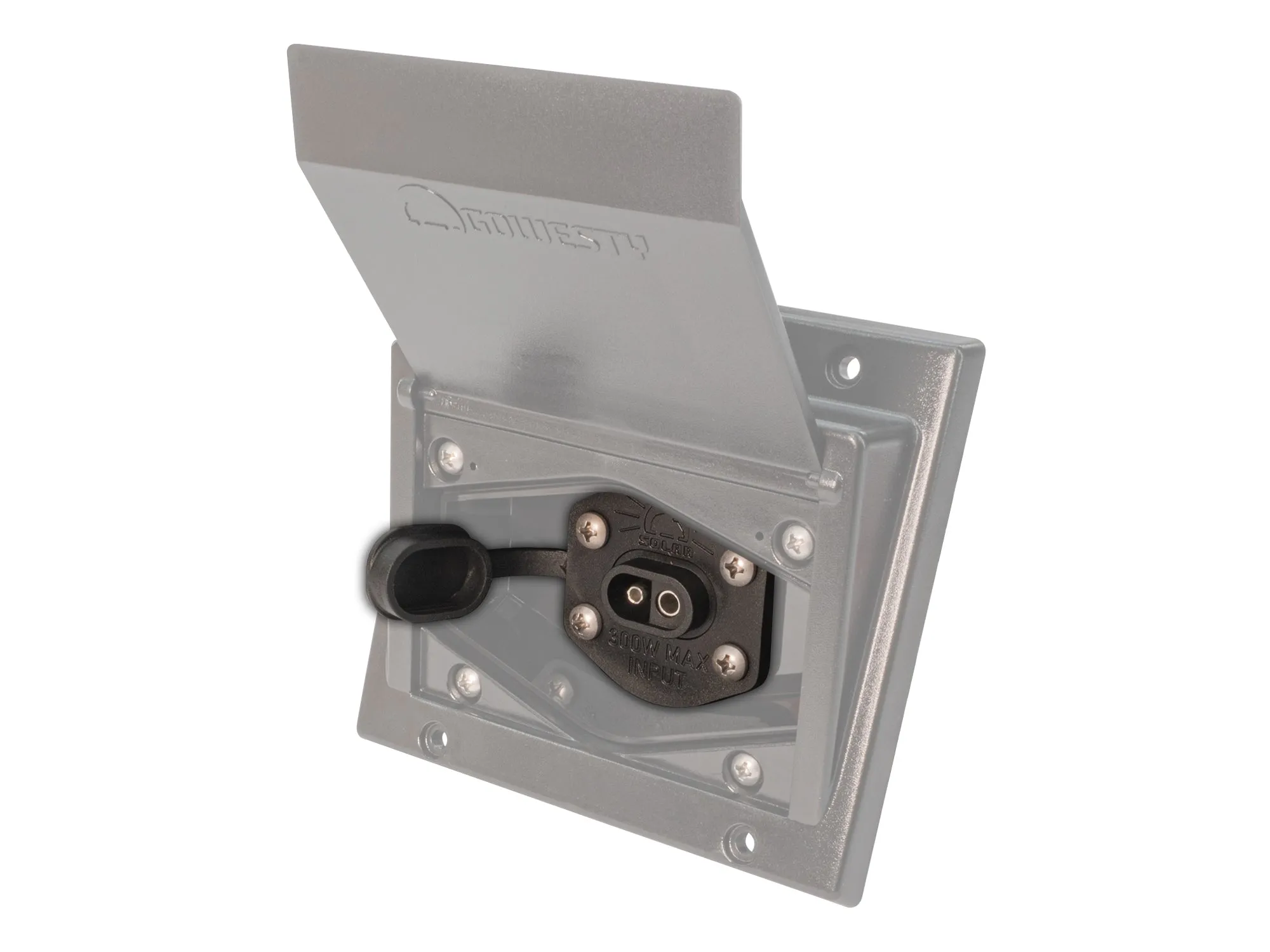

We had this 2-pin bulkhead solar power connector custom-made to fit in our hookup boxes to provide a weather resistant power access point.  The extra-long wire lead will reach deep into your Westy for an uninterrupted connection to your charging system. If you have one of our hook-up boxes already, and want to convert it to a solar charging box, this is the product you need!

It can also be installed anywhere your heart desires. We have seen them installed inside a blocked-off refrigerator vent, on the roof, and even right through the side of the van. Simply drill a hole where you want it and install with sealant and screws (not included). Wire the plug directly to your solar controller inputs and you have an easy and unobtrusive method of plugging in your solar panel.

Very important note: As wired, this plug is for INPUT of power. The red wire goes to positive solar controller or battery, black to ground. To use this connector for OUTPUT, it must be wired in reverse, red to ground, black to positive. Always add a fuse inline when wiring a power output circuit.

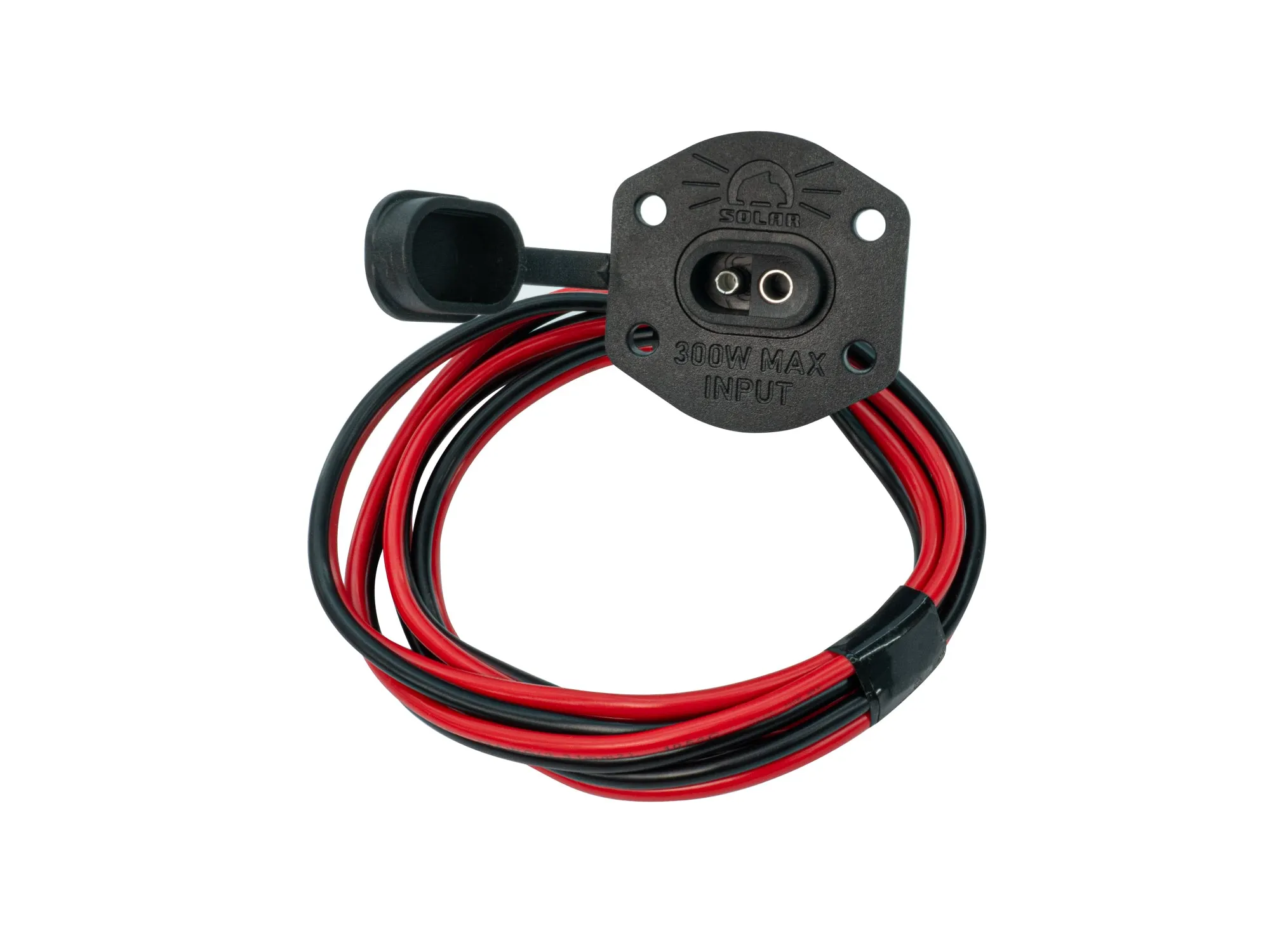

Features:
• 2-Pin Connector w/Weather Resistant Cap
• 12AWG - 1.5M (5') Wire Length
• 300W Max Input

Looking for a complete Solar Hook-Up Box?
