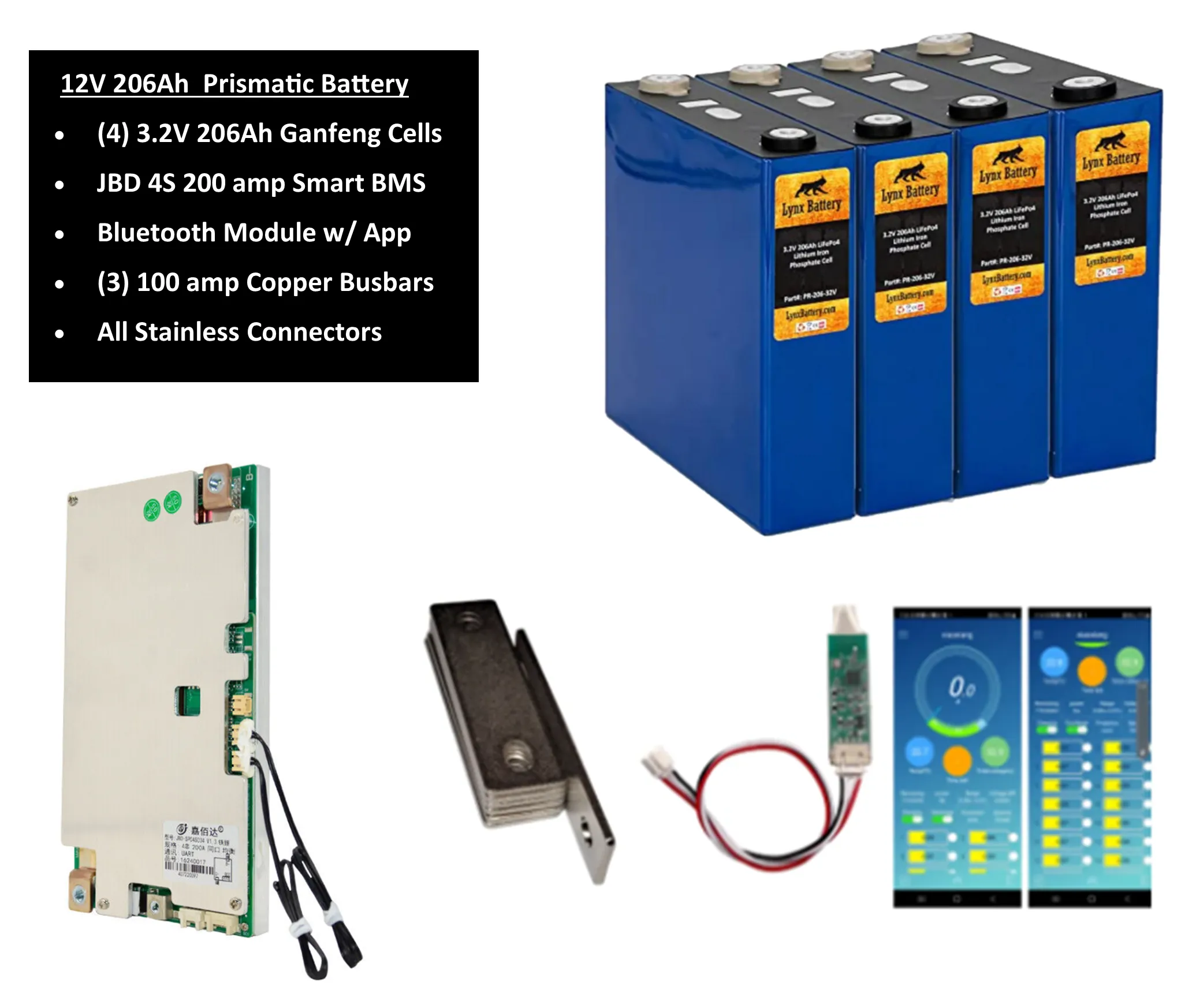

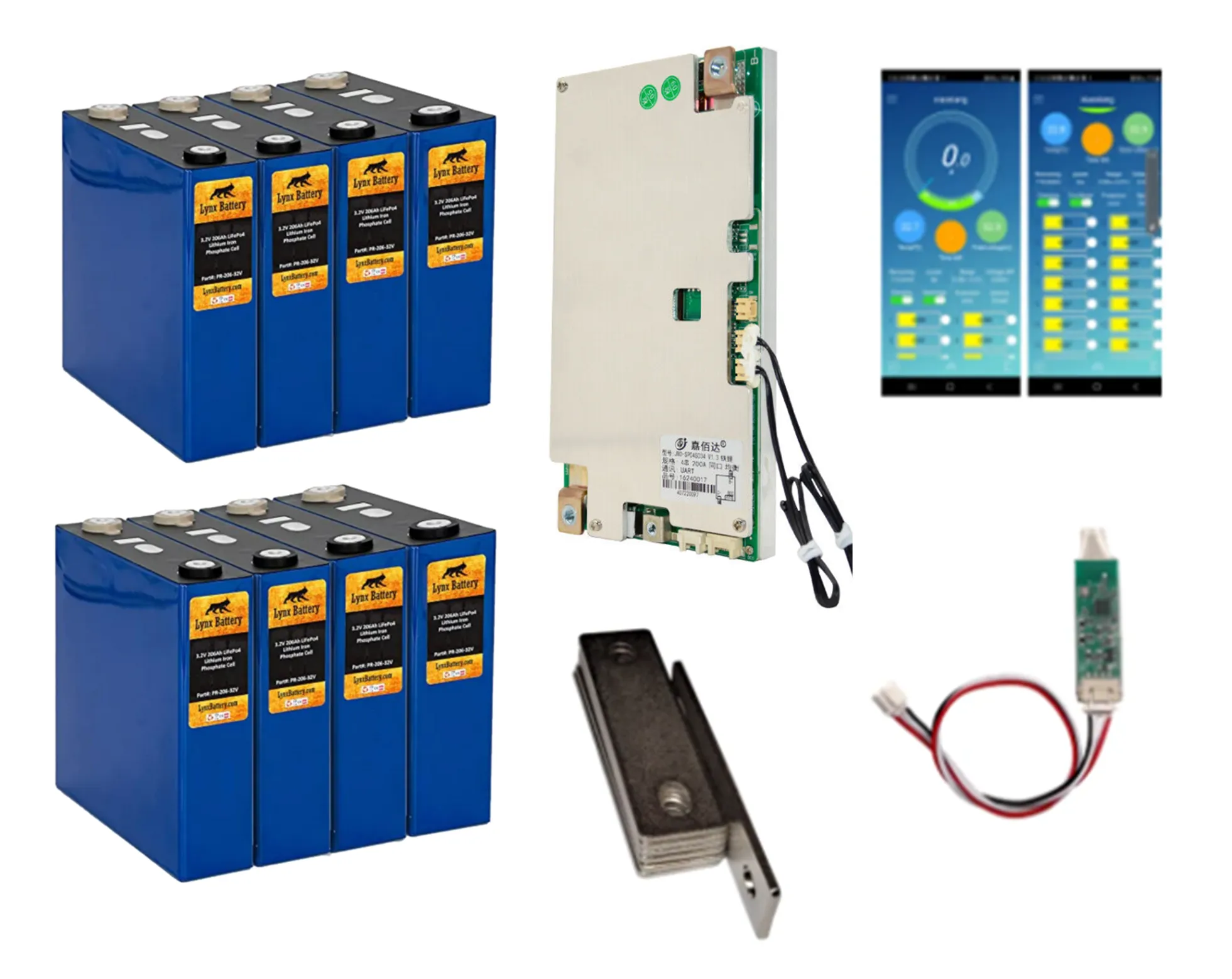

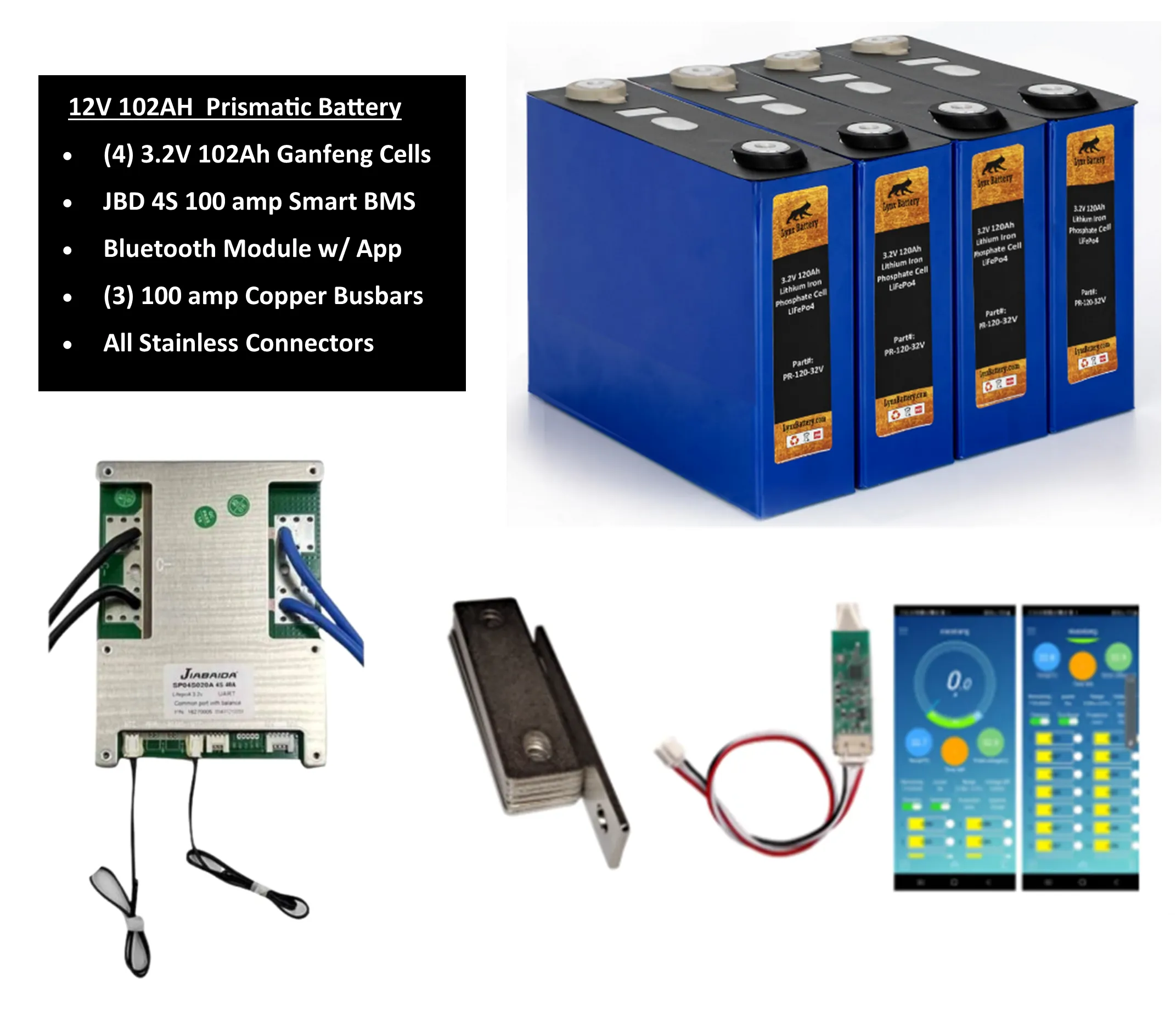

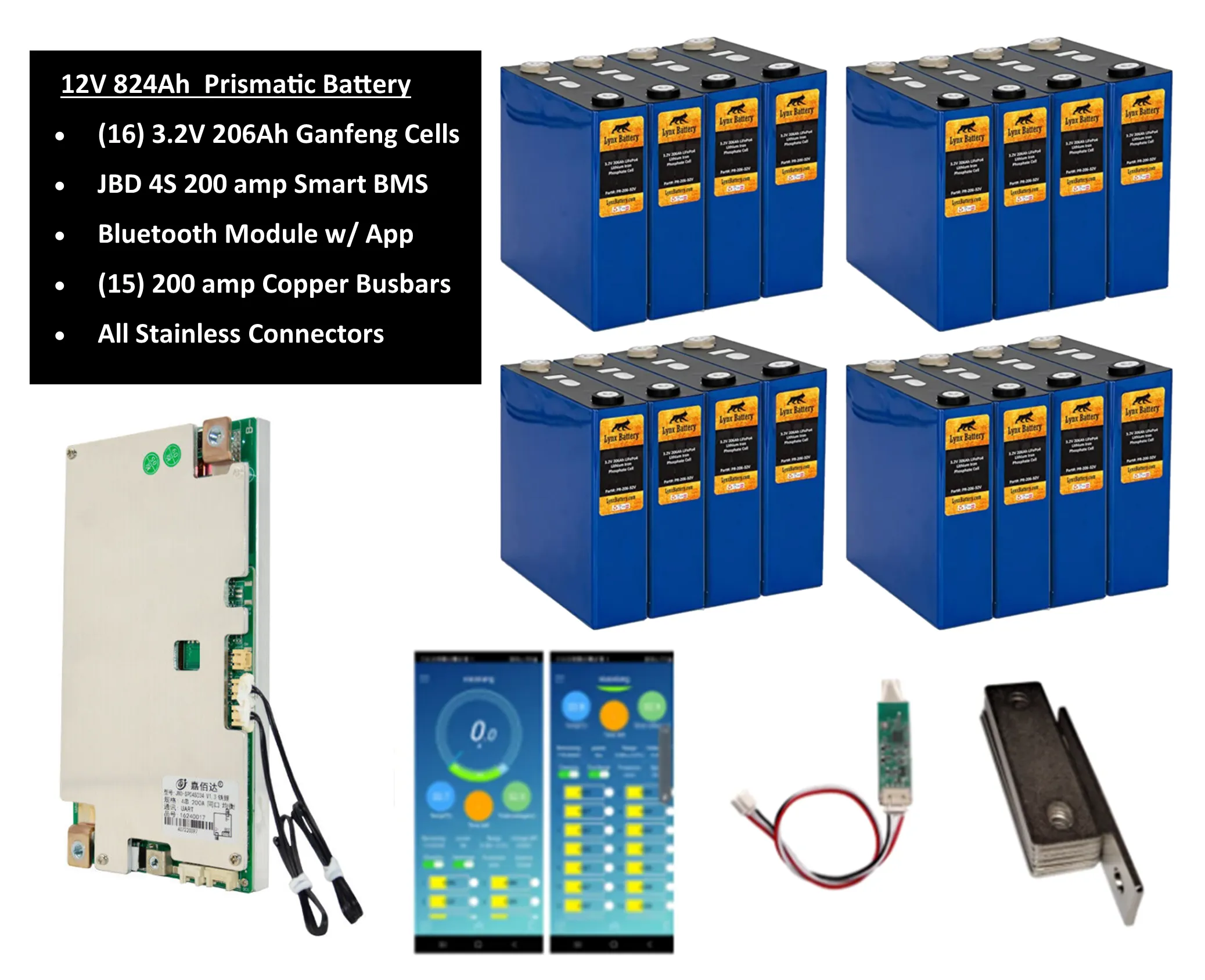

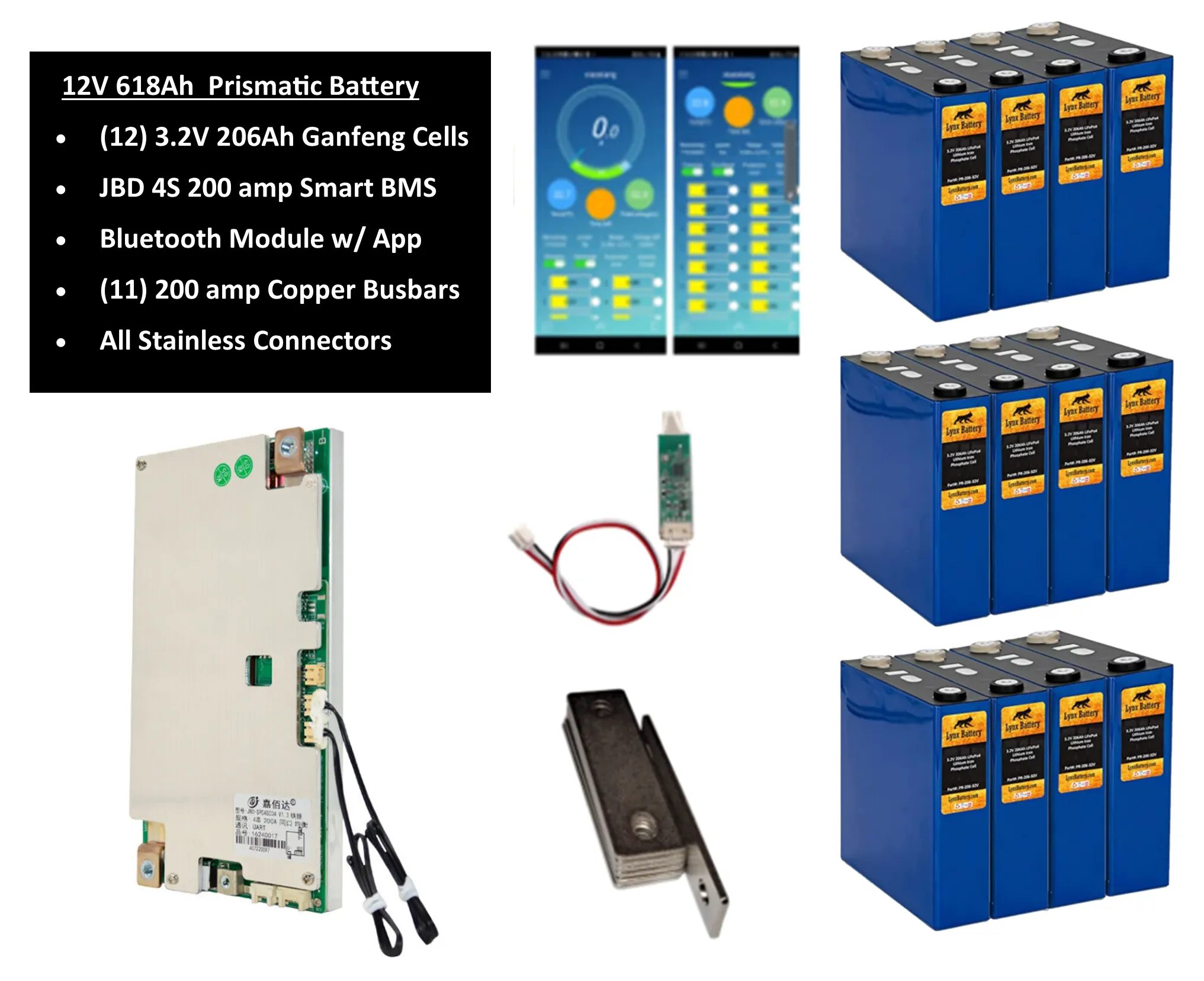

12V Lithium Iron Phosphate (LiFePO4) Prismatic Battery with Bluetooth Smart JBD BMS
The 12V Rechargeable Lithium Iron Phosphate Battery arrives unassembled and contains everything you need to build your own battery.
Built with quality materials and easy to use our Rechargeable Prismatic Cells can be mounted in any orientation, even upside down.
Battery Specs:Nominal Voltage: 12VCycle Life: 4000 /3 years/80%
Prismatic Cell Specs:Nominal Voltage 3.2VCapacity 102/206AhCore size 6.9" x 2.12" x 7.9" (L x W x H)Cell Weight 9.2 lbs.Charging Current; Standard Charge 0.5C, Max Charge 1CDischarging Rate; Continuous 1C, Max 2CCut-off Voltage; Charging 3.65V Discharging 2.5VRecommended SOC Window SOC 10%~90%Internal Resistance 0.2mΩ Fresh Cell, 30% SOCWorking Temperature; Charging -15~55°C Discharging -30~55℃,Storage Temperature; ≤1 month: -10–45℃, ≤3 month: 0–30℃, ≤6 month: 20±5℃
Battery Management System (BMS) Specs:Power Balancing 2.65VBalance Release 2.65VBalance Current 40 /-5mAOver-Discharge Detect 2.8 /-0.05VOver-Discharge Detect Delay 0.5VOver-Discharge Release 3.0 /-0.05VOver Current Detect 150mVOver Current Detect Delay 9MSShort Circuit Detect Delay 250uSMain Circuit Resistor ≤10mΩWorking Current ≤100uAWorking Temp Range -20/ 80ºC
Additional Applications:
Lithium-Ion prismatic deep cycle battery 12V is ideal and preferred for the following applications.
Solar/Wind powerOff-Grid ApplicationsRV, Marine, Golf cartsElectric VehiclesDIY Electric StorageHandling Equipment
